Aventon | SKU: 1E054-0013401

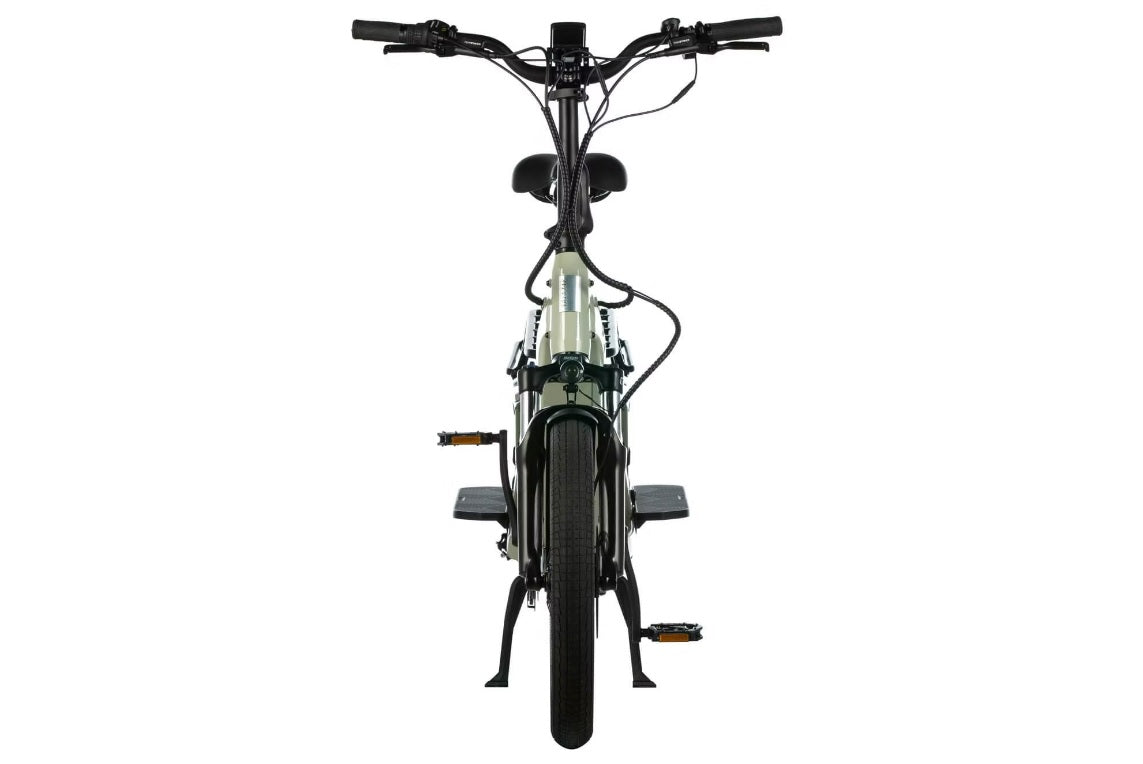

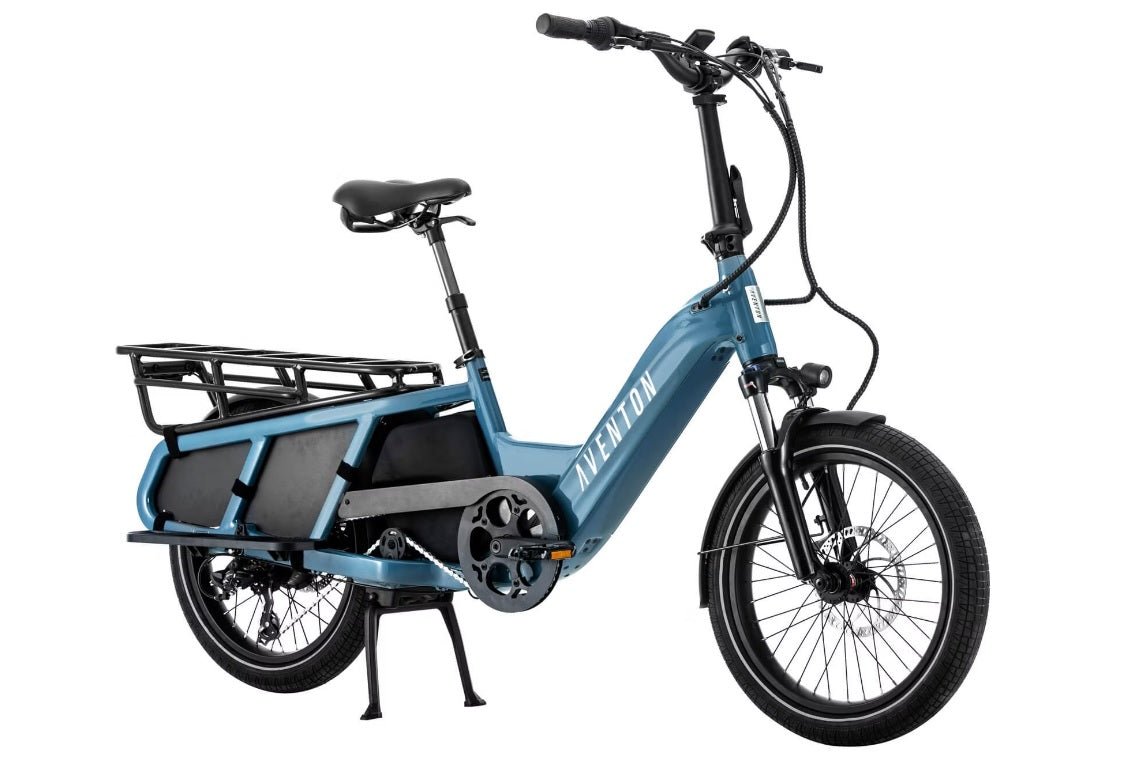

Aventon Abound Cargo E-Bike

$1,799.00

Shipping calculated at checkout.

Color

Sage

Product variants

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

Haul it all with the Aventon Abound Cargo E-Bike, Aventon’s first ever cargo ebike! Its versatility and step-through frame puts the you in you-tility. Rack it, stack it, and load the kiddos, too! The Aventon Abound Cargo E-Bike is equipped with a torque sensor and powerful 750W rear hub motor, getting around with everything you need in tow has never been easier. Let the Aventon Abound Cargo E-Bike do most of the heavy lifting by switching between the four new pedal assist levels: eco, tour, sport, and turbo. The all-new turn signal functionality alerts others that you’re making moves, while the front headlight sheds light on the road ahead. With Abound, the possibilities are boundless.

See the Aventon Abound Cargo E-Bike in Action!

How to Assemble Your Aventon Abound Cargo E-Bike!

Technical Overview

The Aventon Abound Cargo E-Bike ships as a Class II e-bike, with pedal assist and throttle. The Aventon Abound will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. The Aventon e-bikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your e-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your e-bike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your e-bike. *Using PAS 1 throughout flat terrain with a rider weight of 160 lb.

Technical Specifications

Model - Abound Ebike
Motor - 750w (sustained), 48v Rear Hub
Throttle - Throttle on demand
Display - LCD Smart "Easy Read"
Speed - 20 MPH
Battery - 48V, 15Ah (720Wh), LG Cell, UL 2849 Compliant
Sensors - Torque Sensor
Pedal Assist - 4 Levels
Charger - 48V, 3 Amp Fast Charger
Range - Up to 50 miles
Frame - Double-Butted Aluminum Alloy
Weight - 81 lbs
Pedals - 9/16" Alloy Platform
Fork - Suspension Fork with 50mm travel, with lockout
Total Cargo Weight Limit - 440 lbs
Kickstand - Included, center mount
Bottom Bracket - Square Taper, Sealed, Torque Sensor
Crankset - 170mm w/ 52 T
Rear Derailleur - Shimano 7 speed
Cassette - 14-28T, 7 Speed
Shift Lever - 7 Speed Twist
Brakes - Hydraulic
Chain - 148 Link, 7 Speed
Rims - Double Wall Aluminum 36h Front & Rear
Tubes - Butyl Rubber, Schrader Valve
Hubs - 36H Disc Nutted Front, Nutted Rear
Tires - 20 x 2.4
Saddle - Aventon Saddle
Seatpost - Dropper Seatpost, 30.9mm x 440mm
Stem - Folding, Height Adjustable, 31.8mm, 9 Degree Rise
Seat Clamp - 34.9mm Quick Release
Handlebars - Aluminum 31.8mm, 700mm
Headset - Sealed Bearing Headset
Grips - Ergonomic Comfort
Storage Bag - Polyester, EVA Waterproof
Bike Box - Bike Box: 167cm x 37cm x 73cm (65in. x 15in. x 29in.)
Footboards - Aluminum
Spokes - Black Stainless 13G Front / 12G Rear

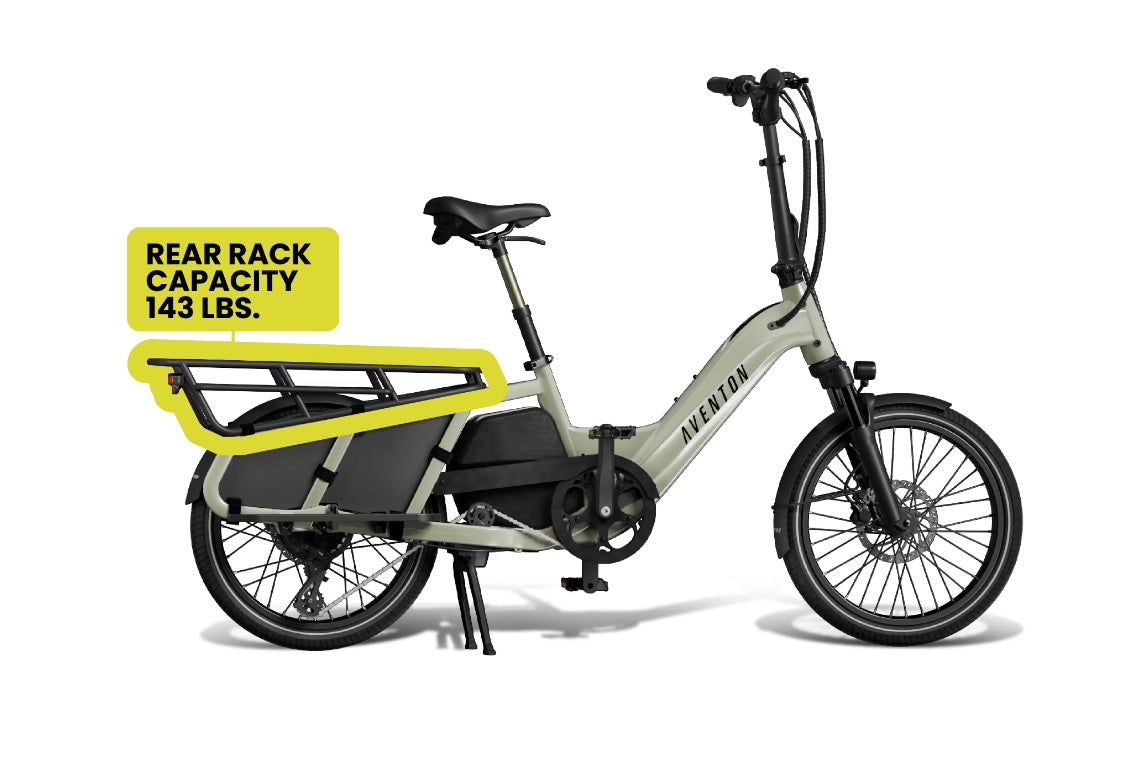

Rear Rack Weight Limit - 143 lbs
Ideal Use - Cargo
Frame Style - Step-Through
Lights - Front and rear lights integrated
Folding - No
Fenders - Included
Suspension - Front
Rear Rack - Included
Recommended Rider Height - 4'11" - 6'3"

*Specifications subject to change without notice

* Mack Cycle recommends to have your local bike store or authorized mechanic complete the assembly of your new Aventon Abound E-bike.
