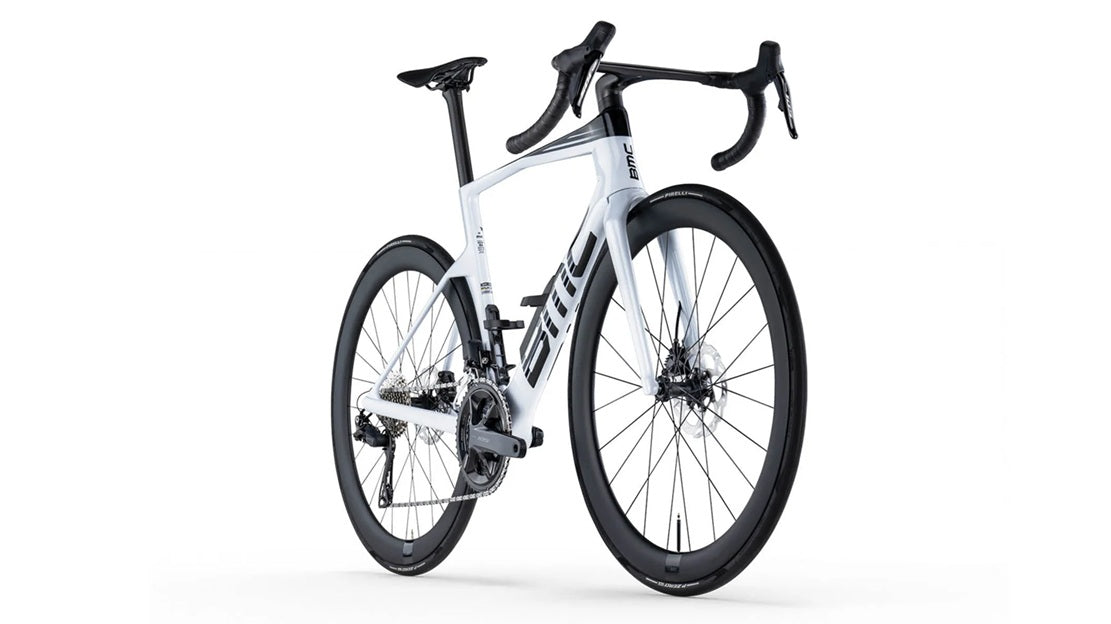

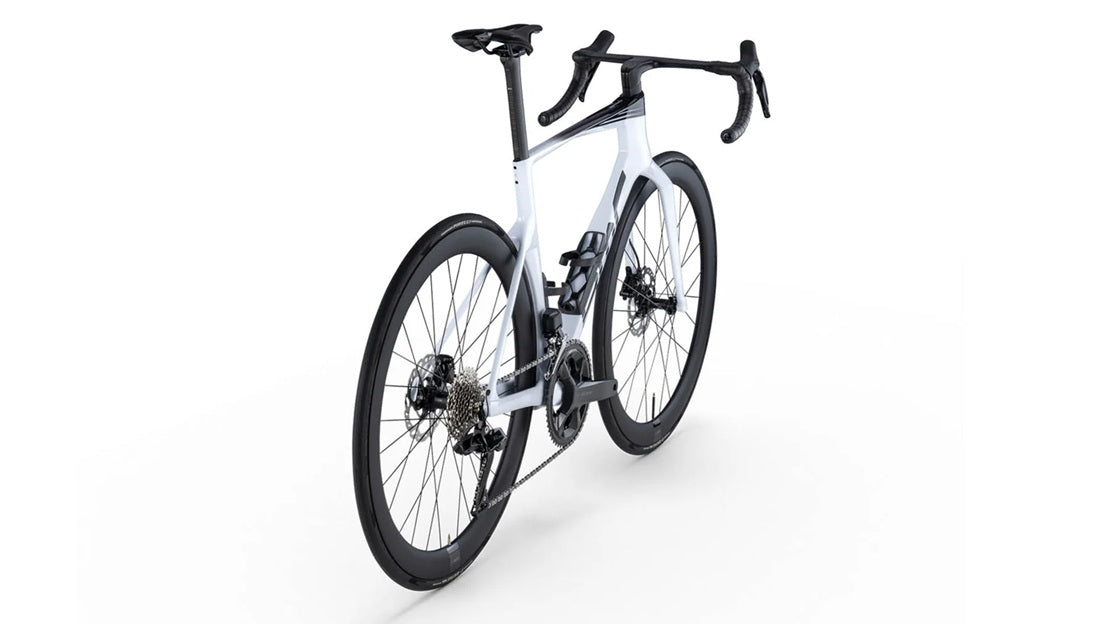

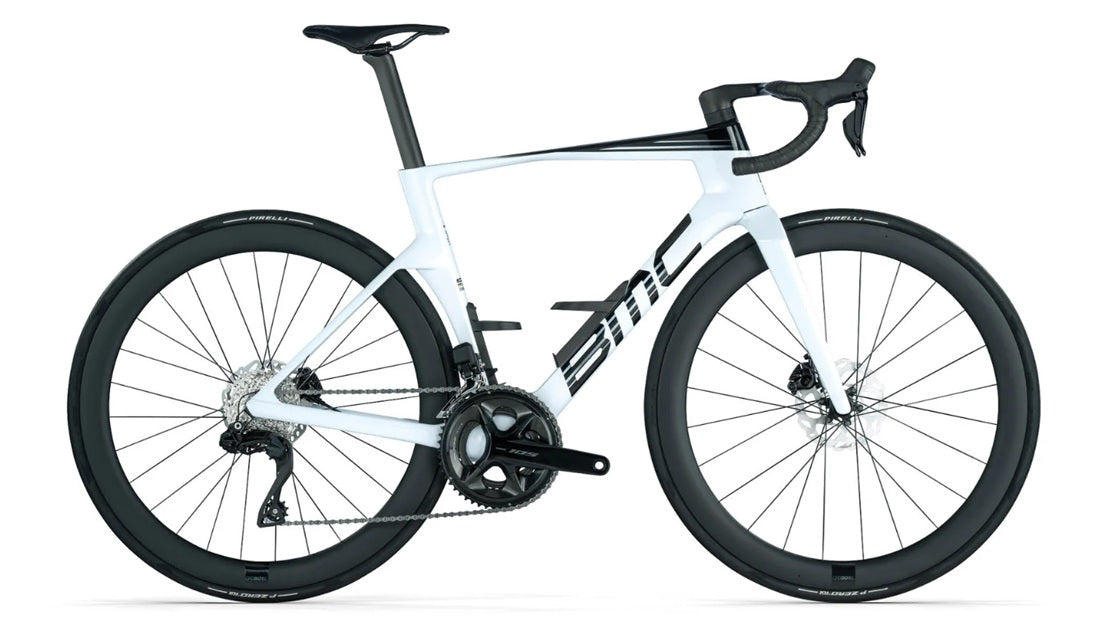

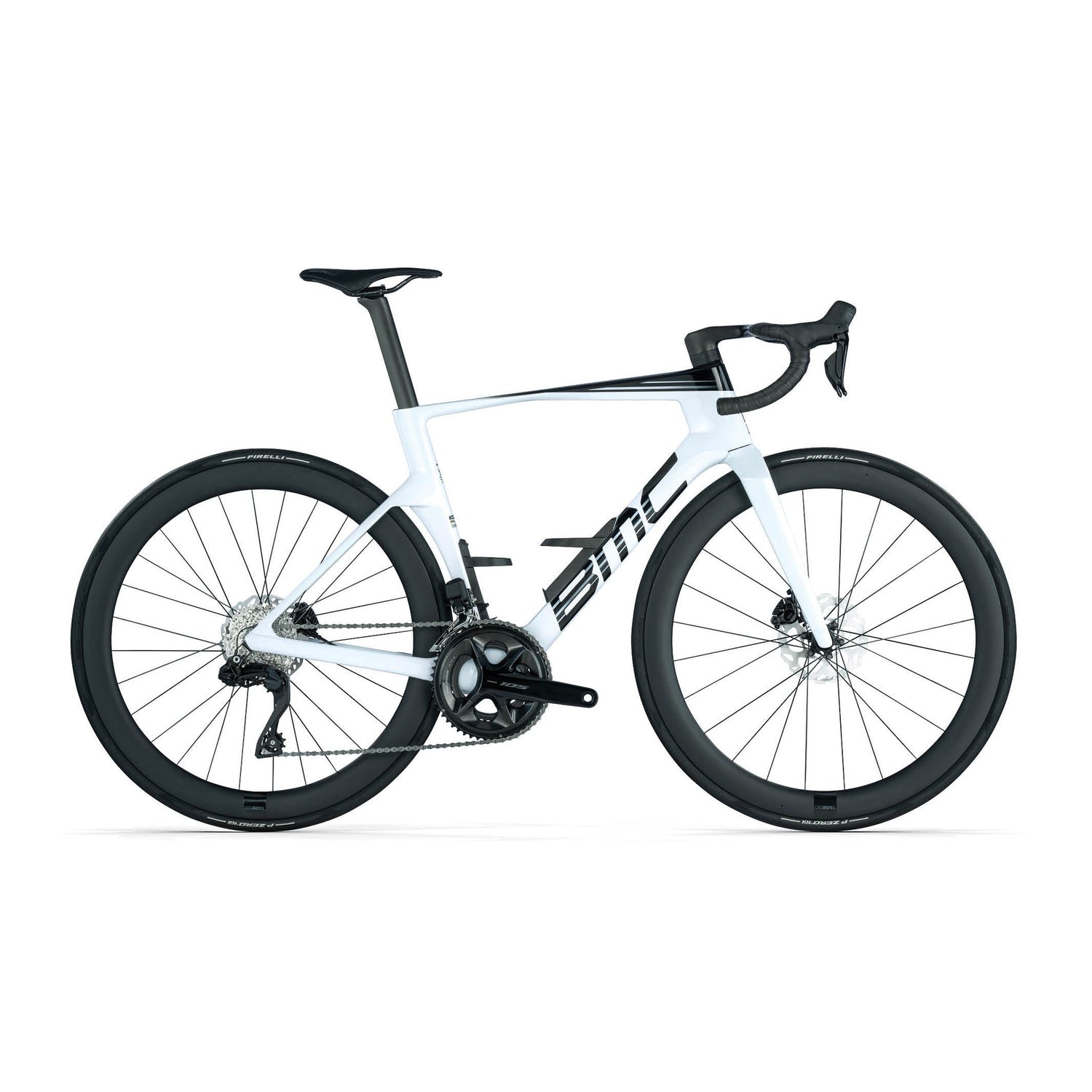

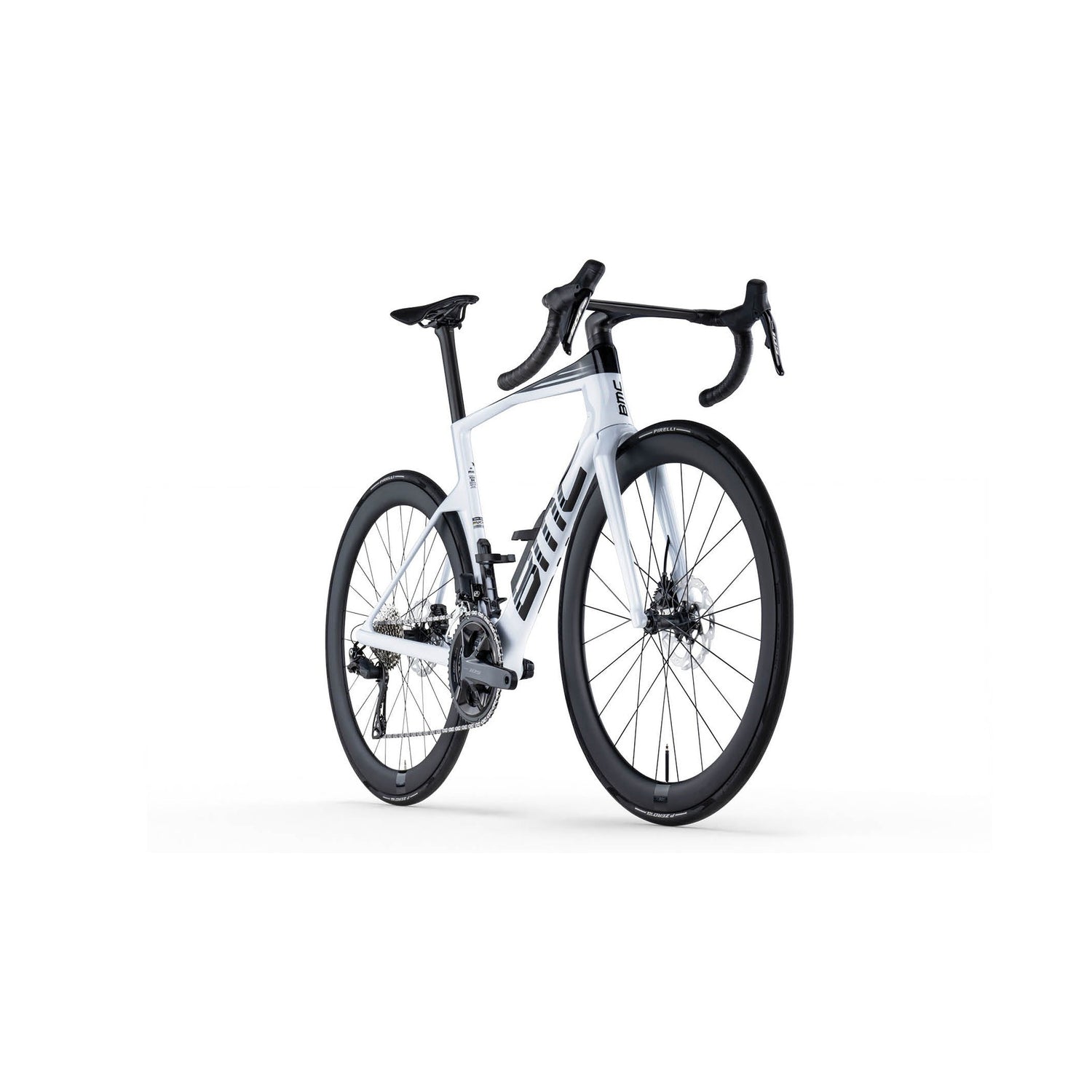

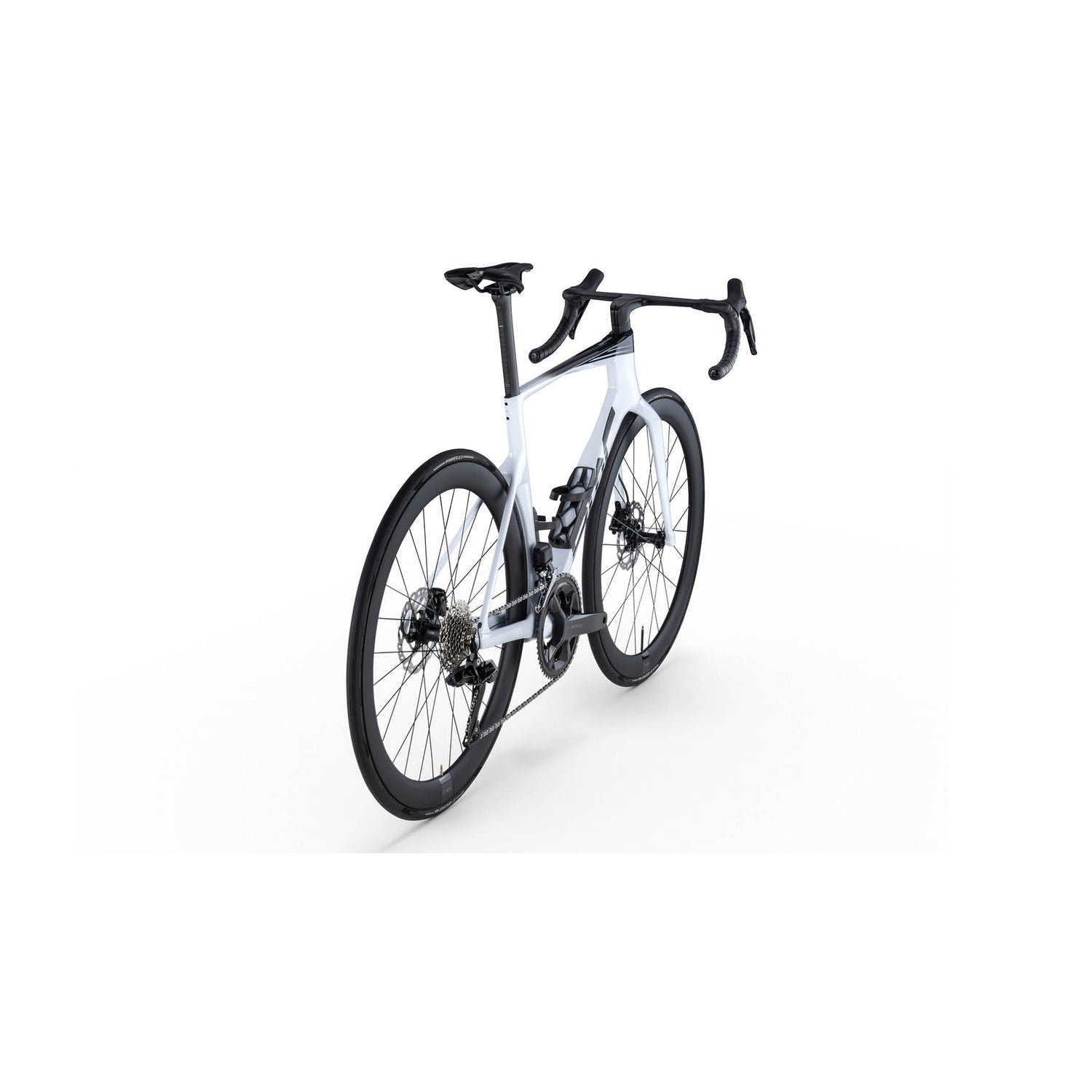

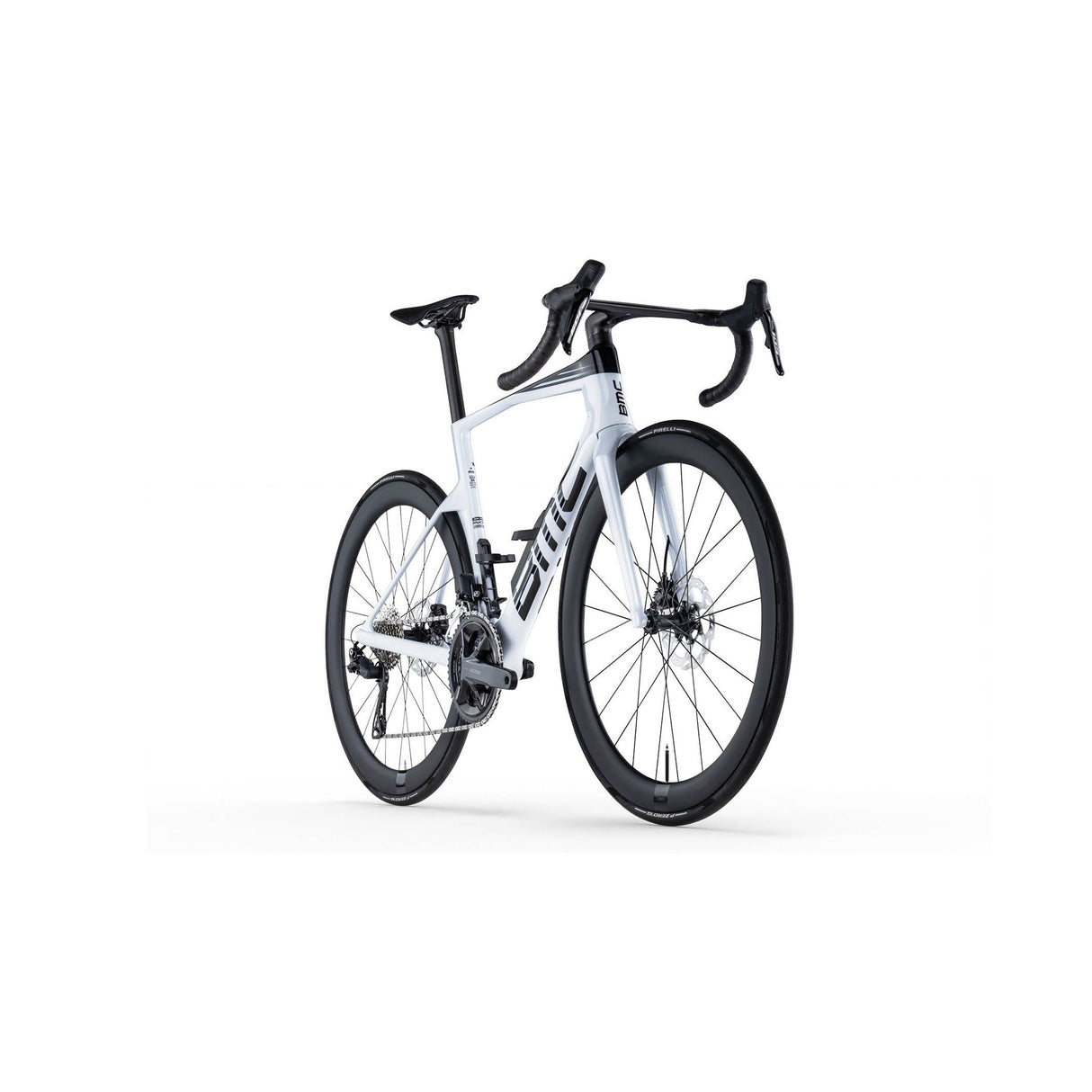

BMC TeamMachine R 01 Five Shimano 105 Di2 12 Speed Carbon Disc Road Bike

Every detail counts when every pedal stroke matters. This BMC TeamMachine R 01 Five Shimano 105 Di2 12 Speed Carbon Disc Road Bike is engineered with victory in mind, designed to claim the highest spot on the podium.

Unleashing Performance Beyond Limits. Every pedal stroke matters. Engineered in collaboration with Red Bull Advanced Technologies, the BMC Teammachine R 01 FIVE carbon road bike sets a new benchmark for racing excellence. Designed to perform under the most demanding conditions, this racing bike comes equipped with a Shimano 105 Di2 Drivetrain, aero optimized CR 50 Carbon wheelset, and BMC’s cutting-edge ICS Aero one piece Cockpit. Experience unparalleled speed and precision every race day of your season.

Specifications

Frameset

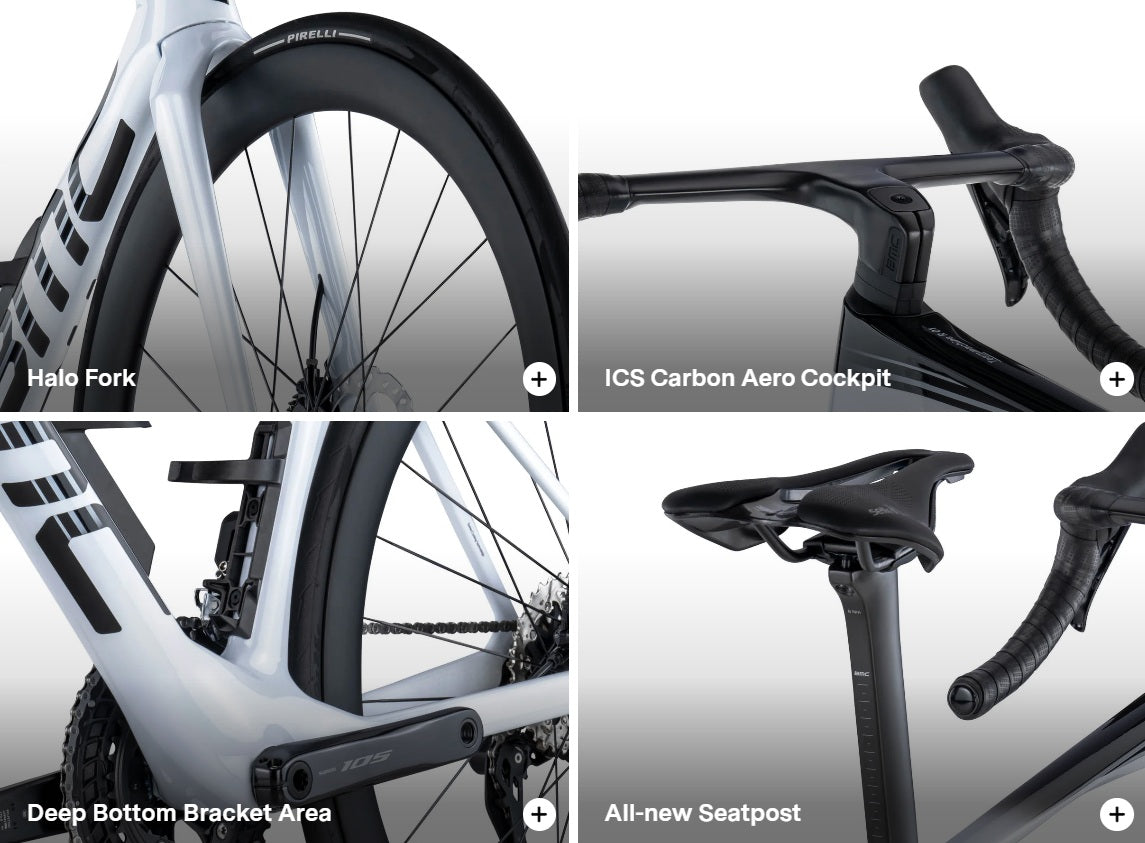

• Frame - Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
• Fork - Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

• Handlebar - ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare
• Seatpost - Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
• Saddle - Selle Italia SLR Boost Superflow | Manganese Rail | 145mm

Drivetrain

• Crankset - SHIMANO 105 (FC-R7100)
• Chainrings - 52-36T
• Cassette - SHIMANO 105 (CS-R7101)
• Cassette Size - 11-34T
• Chain - SHIMANO CN-M6100
• Front Derailleur - SHIMANO 105 Di2 (FD-R7150)
• Rear Derailleur - SHIMANO 105 Di2 (RD-R7150)
• Shifters - SHIMANO 105 Di2 (ST-R7170)
• Gears - 2 x 12
• Bottom Bracket - SHIMANO Press Fit SM-BB72

Brakes

• Brake Levers / Calipers - SHIMANO 105 (BR-R7170)
• Rotors - SHIMANO SM-RT70 | Centerlock [or] SHIMANO 105 (RT-CL700)
• Rotor Size (F/R) - 160 / 160mm

Wheels

• Rims - CR 50 Carbon | Tubeless Ready | 50mm
• Hubs (Front/Rear) - TXC-812 & TXC-240 Centerlock
• Tires - Pirelli P Zero Race TLR | 26mm

Accessories

• In the Box - Aerocore Bottle Cages | Computer mount for Garmin and Wahoo
• Tire Clearance - 30mm

• Weight without Pedals - 7.8kg | Size 54 with all accessories
• ASTM Classification - Level 1
• System Weight Limit - 110kg

• Specifications subject to change without notice

• Any BMC bike that Mack Cycle ships to a customer should be assembled by an authorized mechanic who will charge an assembly fee.
