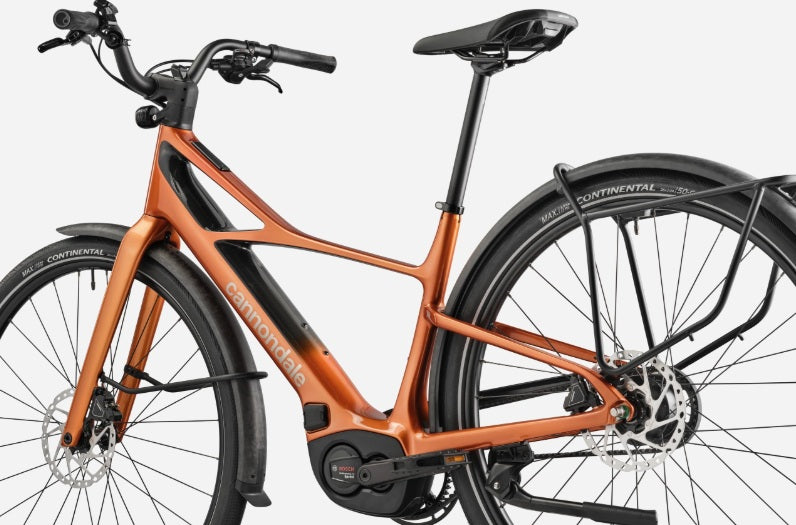

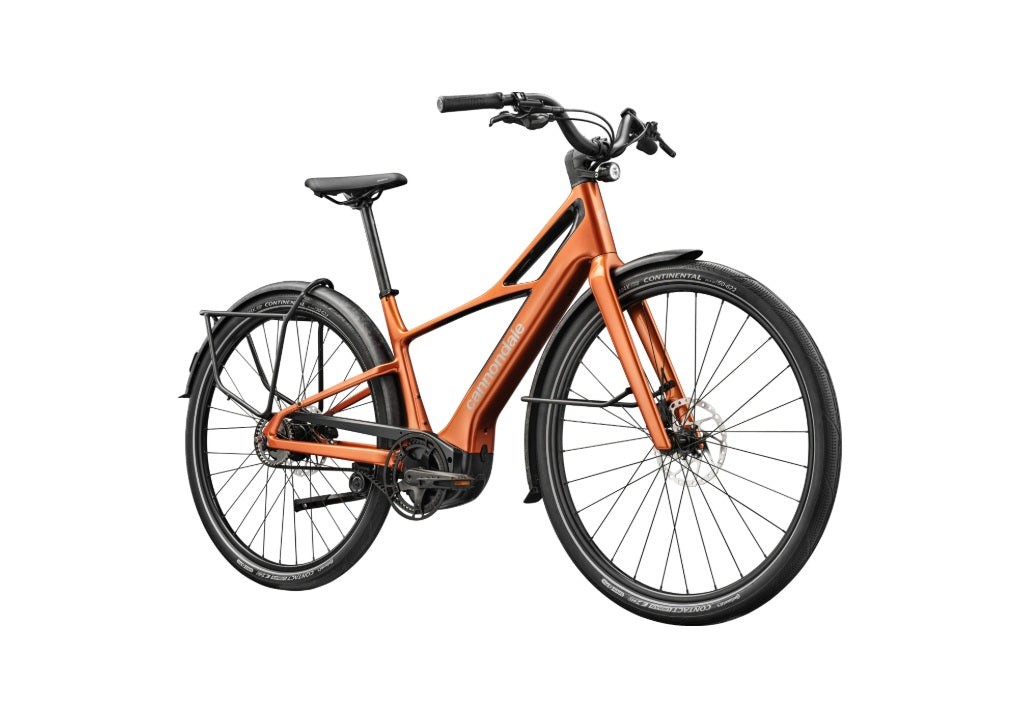

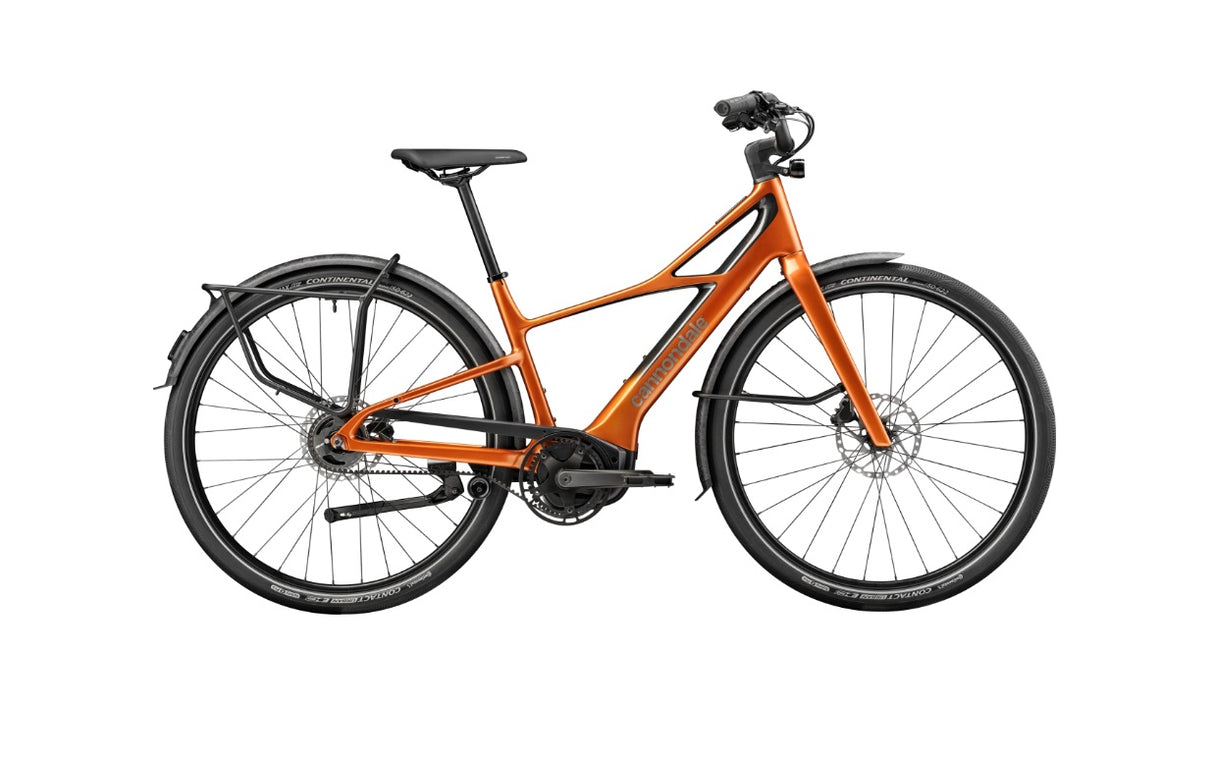

Cannondale FlyingV Carbon Active E-Bike

Highlights

• Super-light carbon fiber frame and fork. Born from racing. Engineered for the city. Warrantied for life.

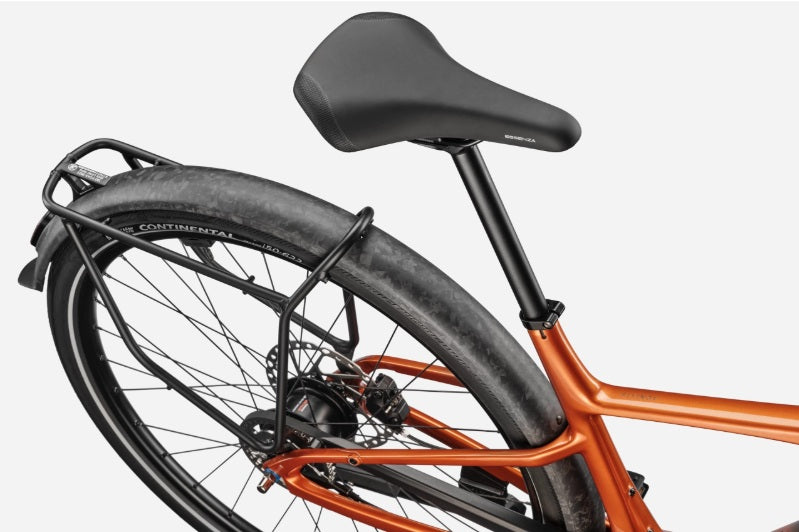

• First-of-their-kind forged carbon fiber fenders - light, rigid, quiet, and as beautiful as they are unique.
• Silky smooth power from Bosch’s Performance Sprint motor. Up to 60Nm of torque, 600 watts of output, and assist all the way to 28mph, in a lightweight, easy-pedaling package.
• Integrated Bosch CompactTube 400Wh battery - the ideal balance of effective range and minimal weight.

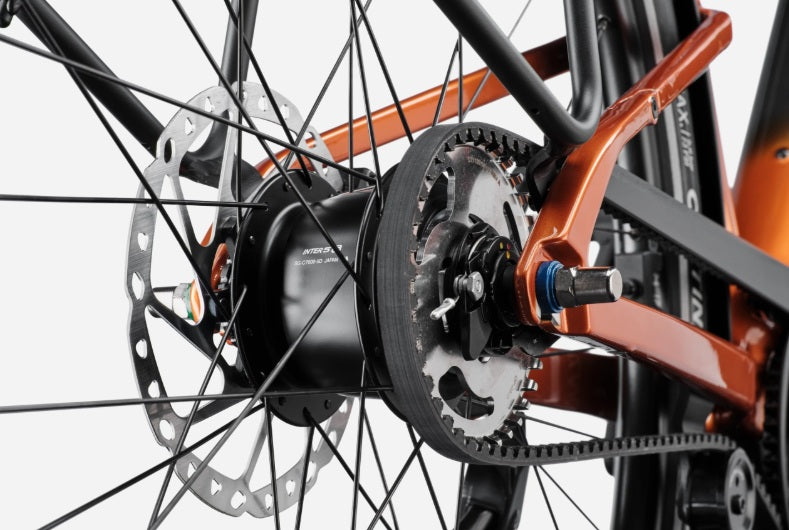

• Proven Shimano Nexus Inter-5E 5-speed internal gear hub – smooth, reliable shifting while pedaling, coasting, or stopped.
• Clean, quiet, and virtually maintenance-free, the Gates CDX Carbon Belt Drive is tops for urban cycling.

Specifications

• Platform - FlyingV
• Model Name - FlyingV
• Model Code - C6401GU

Frameset

• Frame - FlyingV, lightweight carbon construction, internal downtube battery, integrated cable routing, 135mm dropout spacing, 1.5" headtube, flat mount disc, removable kickstand mount (40mm Pletscher-style), hidden holder for bluetooth tracking device (Chipolo, Airtag, etc)
• Fork - Flying V, lightweight carbon construction, 1.25 - 1.5" tapered steerer, flat mount disc, internal routing, 12x100 thru-axle
• Headset - Integrated Sealed Bearing, Tapered, internal cable routing

E-System

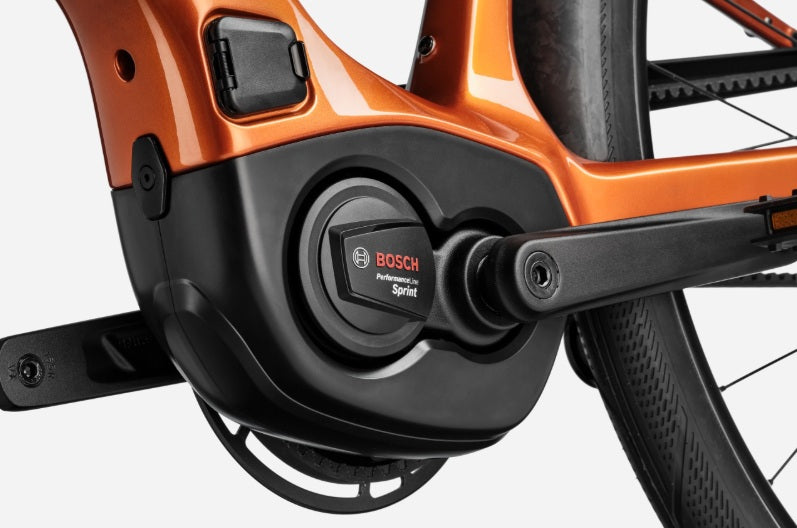

• Drive Unit - Bosch Performance Line Sprint, Smart System, 60Nm, 600W max/250W nominal, 28mph
• Battery - Bosch CompactTube, 400wh
• Charger - Bosch 2A
• Display - Bosch LED Remote

Drivetrain

• Rear Derailleur - Shimano Nexus Inter-5E, 5-speed internal gear hub
• Shifters - microSHIFT trigger-shift, 5-speed
• Chain - Gates CDX, CenterTrack high-performance carbon belt, 132T
• Crank - Samox Bosch E-bike, left 0 offset, right 13mm offset, w/ 52T Gates sprocket
• Rear Cogs - Gates CDC, 36T

Brakes

• Brakes - Shimano UR300 hydraulic disc, 180/180mm RT64 rotors
• Brake Levers - Shimano MT201 hydraulic disc

Wheels

• Rims - Ryde, alloy, double wall, 32 hole, 25mm inner width, disc-specific
• Spokes - DT Swiss Champion
• Tire - Size 50
• Wheel Size - 700c
• Hubs - (Front) Shimano TC500, 12x100mm thru-axle / (Rear) Nexus 5-speed internal gear hub
• Tires - Continental Contact Urban, 700x50c (50-622)

Components

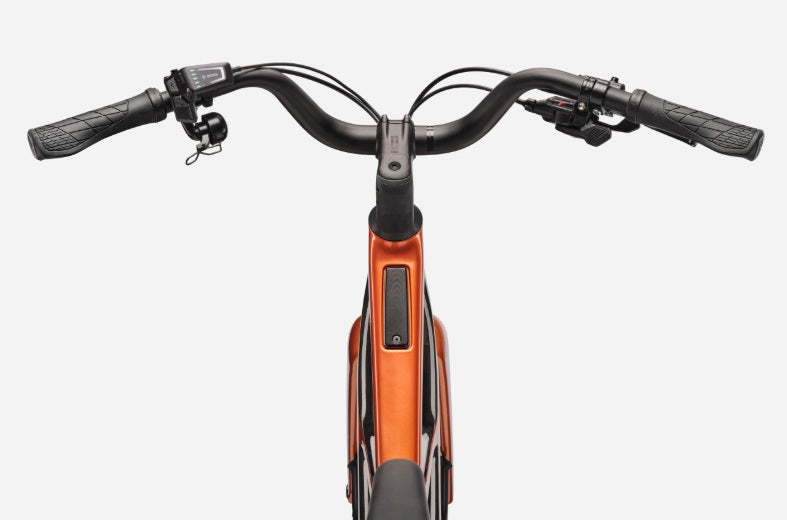

• Handlebar - Cannondale Urban Backsweep, 93mm rise, 24 degree sweep, 31.8 clamp, 700mm
• Stem - Cannondale C1 Conceal, Alloy, 31.8, -6°, with SP-Connect SPC+ mount top cap
• Grips - Ergon GA3 Saddle Selle Royal Essenza, Moderate Wide
• Seatpost - Cannondale 3, 6061 Alloy, 31.6, 300mm (SM), 350mm (MD), 400mm (L & XL)

Connectivity

• Components - Cannondale AppTag, SP-Connect SPC+ top cap mount for Cannondale Conceal stem

Extra

• Extra 1 - Custom full-coverage carbon fenders, Supernova Mini2 LDM front light and SuperNova TL3-Z rear light with integrated reflector, rear pannier rack (40lb), kickstand

• *Specifications subject to change without notice

• Recommended assembly by a local certified bike mechanic / retailer (assembly fee applies).
