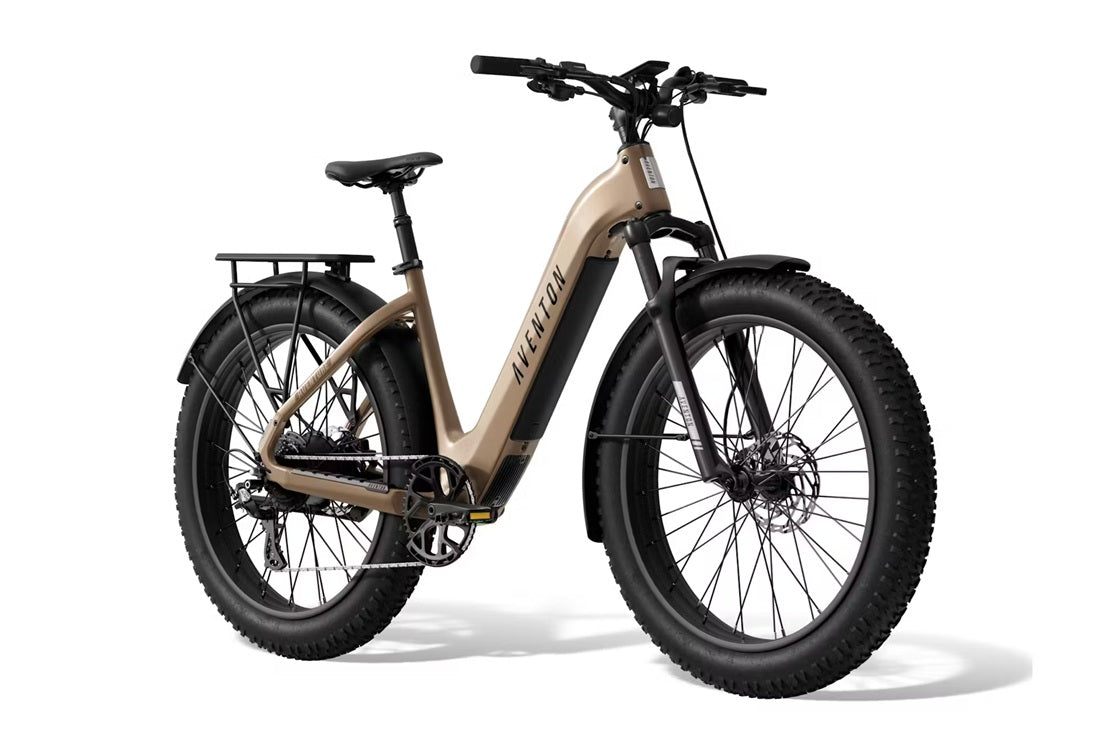

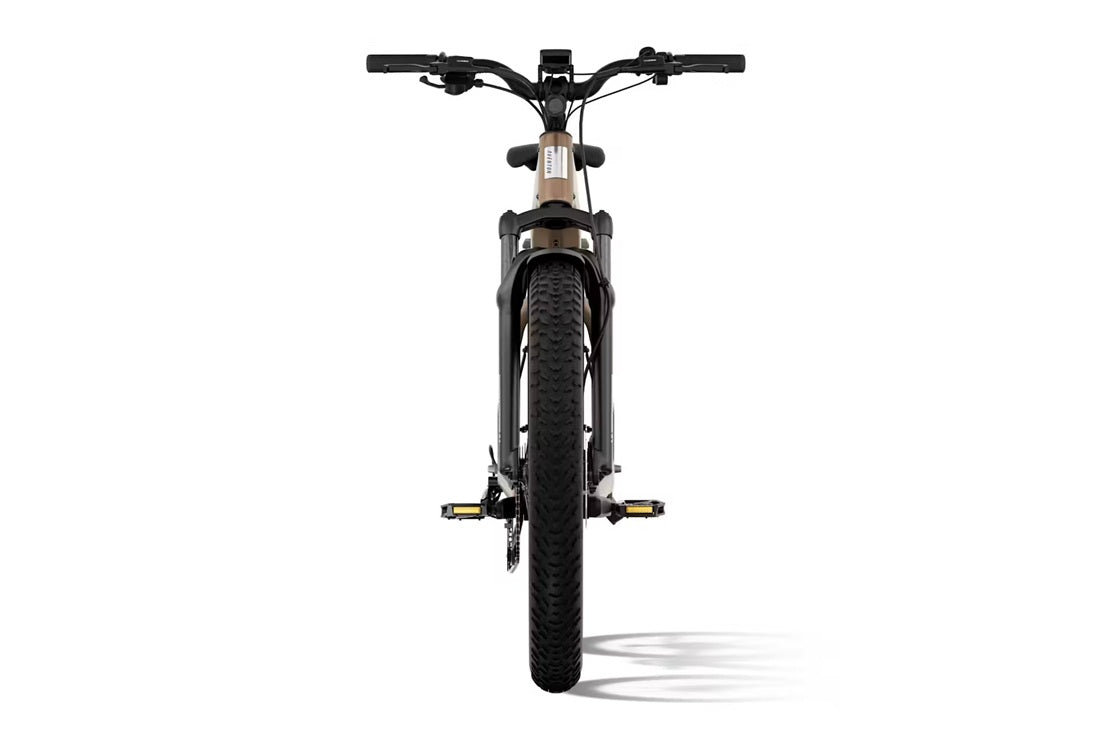

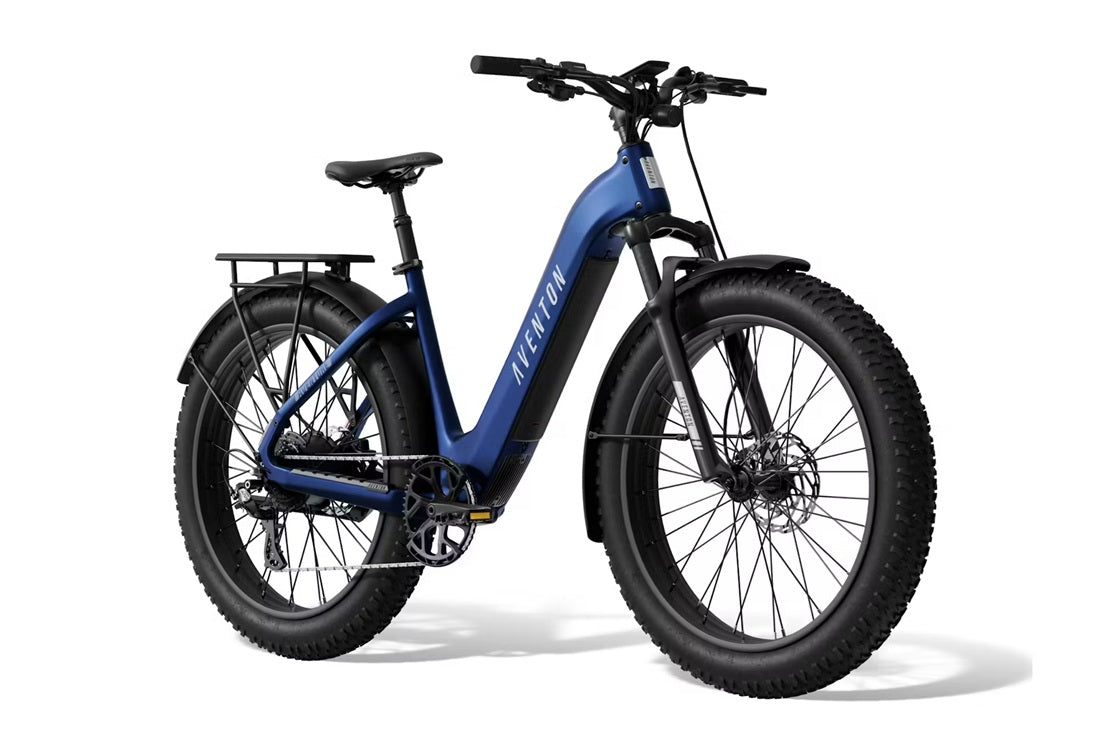

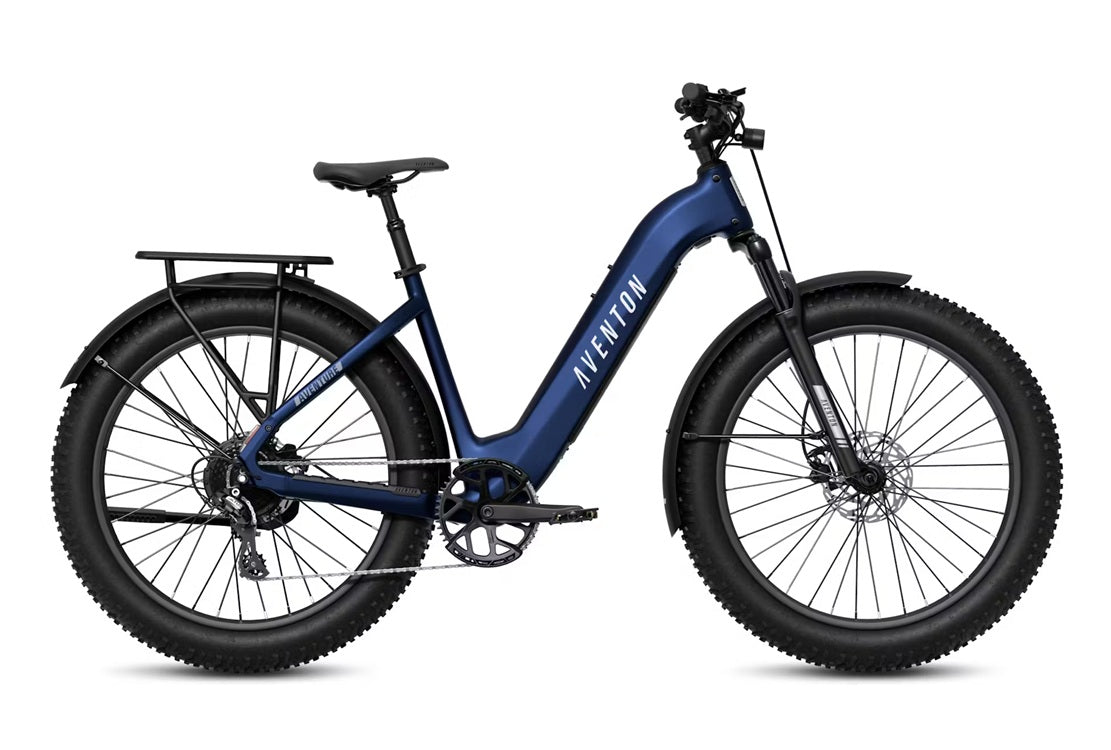

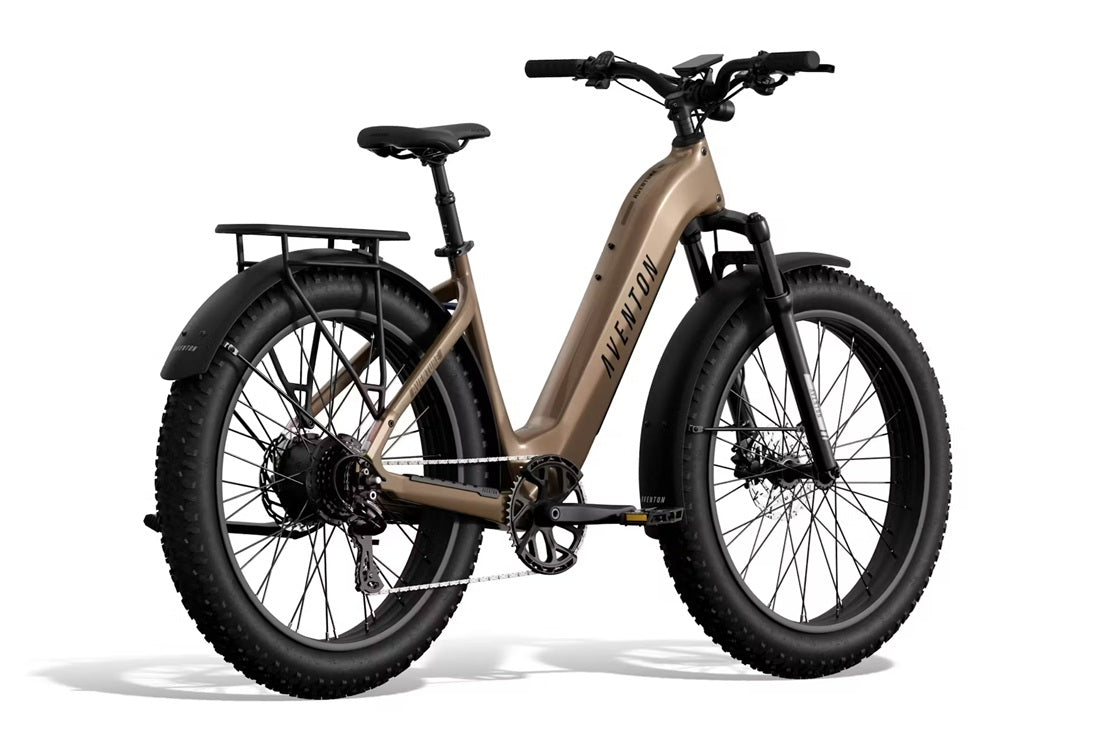

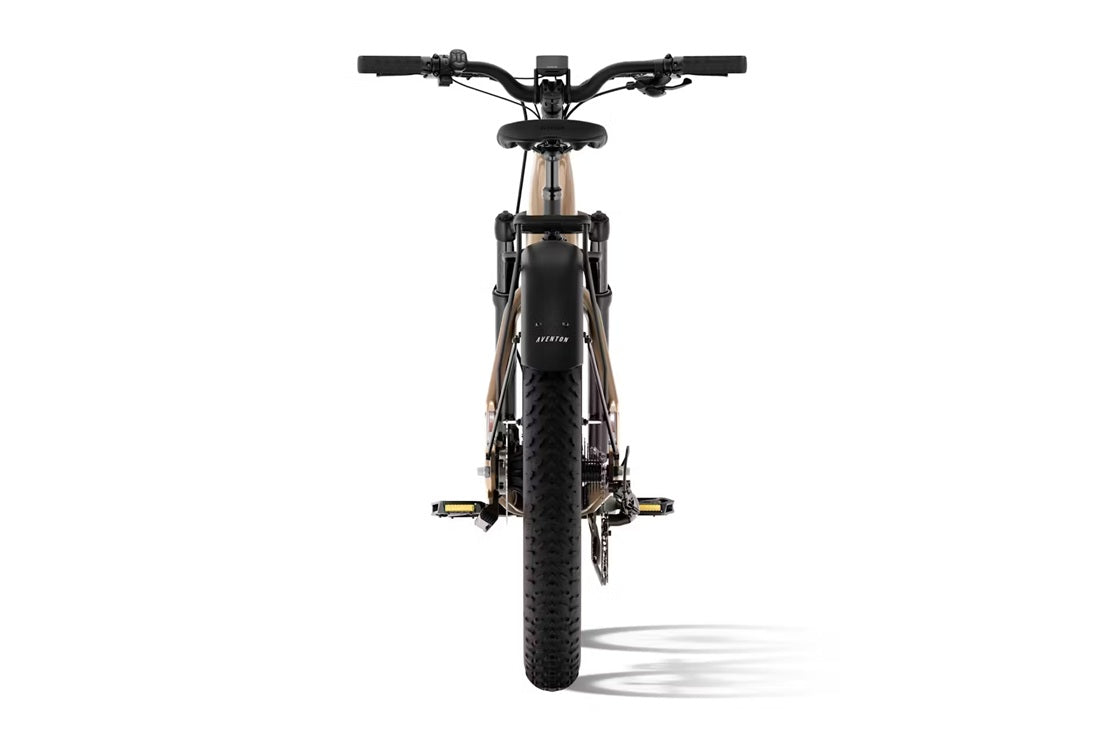

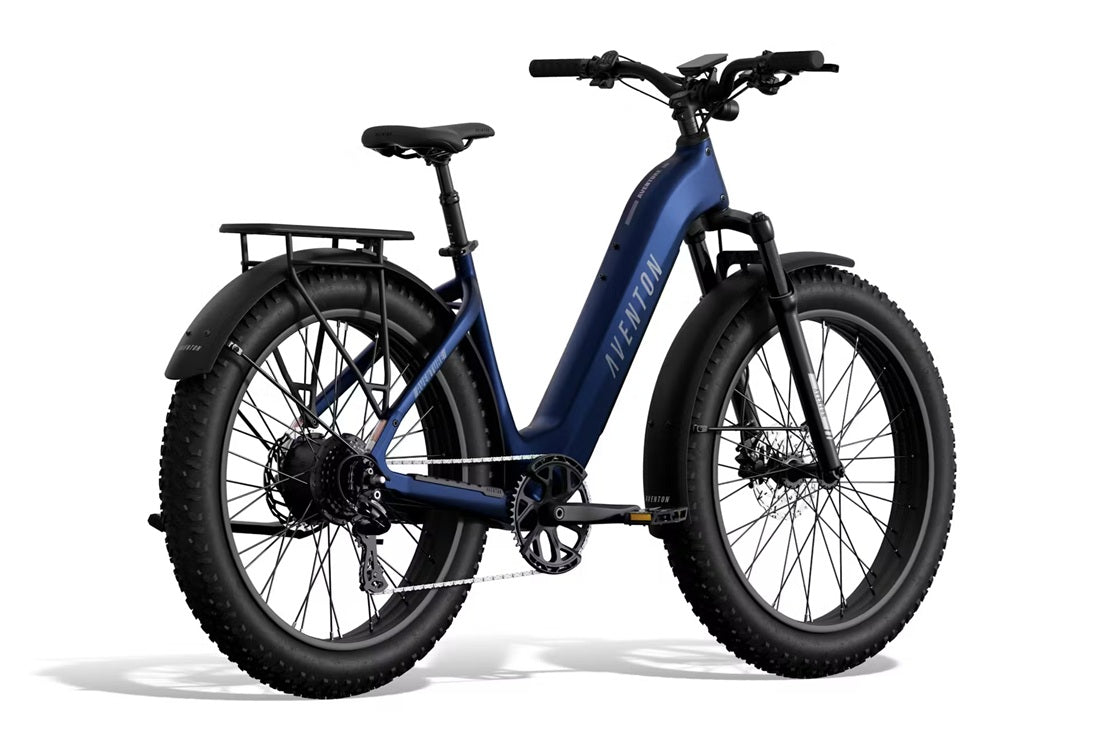

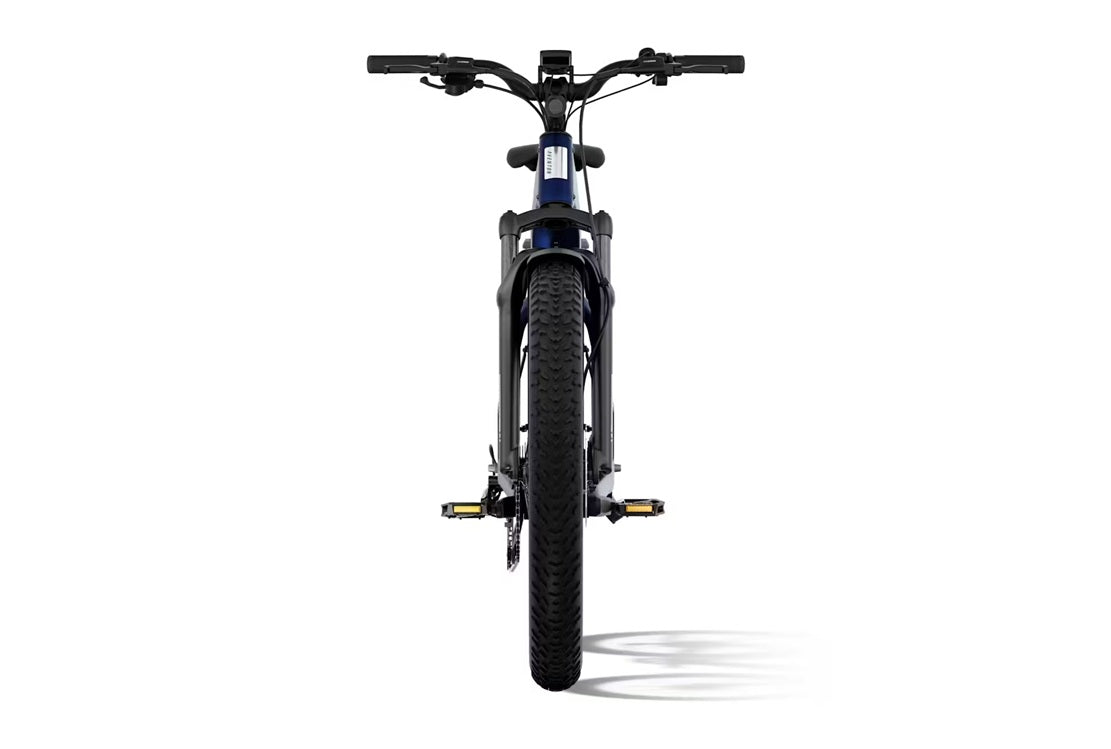

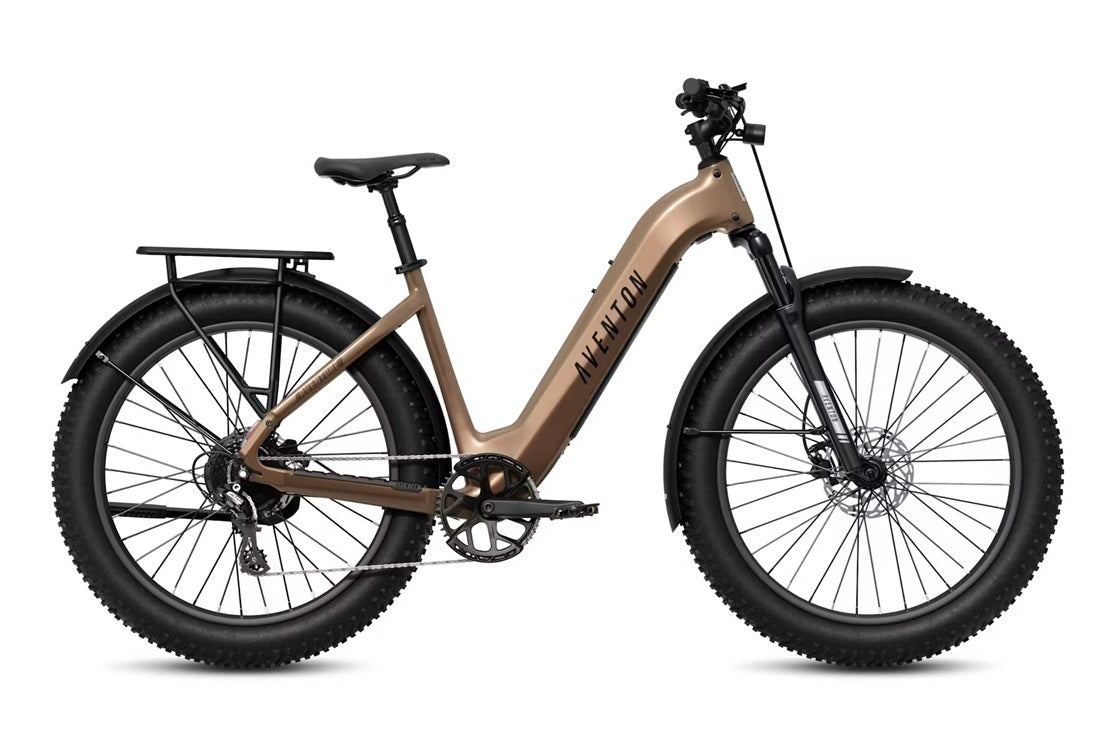

Aventon Aventure 3 Step Through All Terrain E-Bike

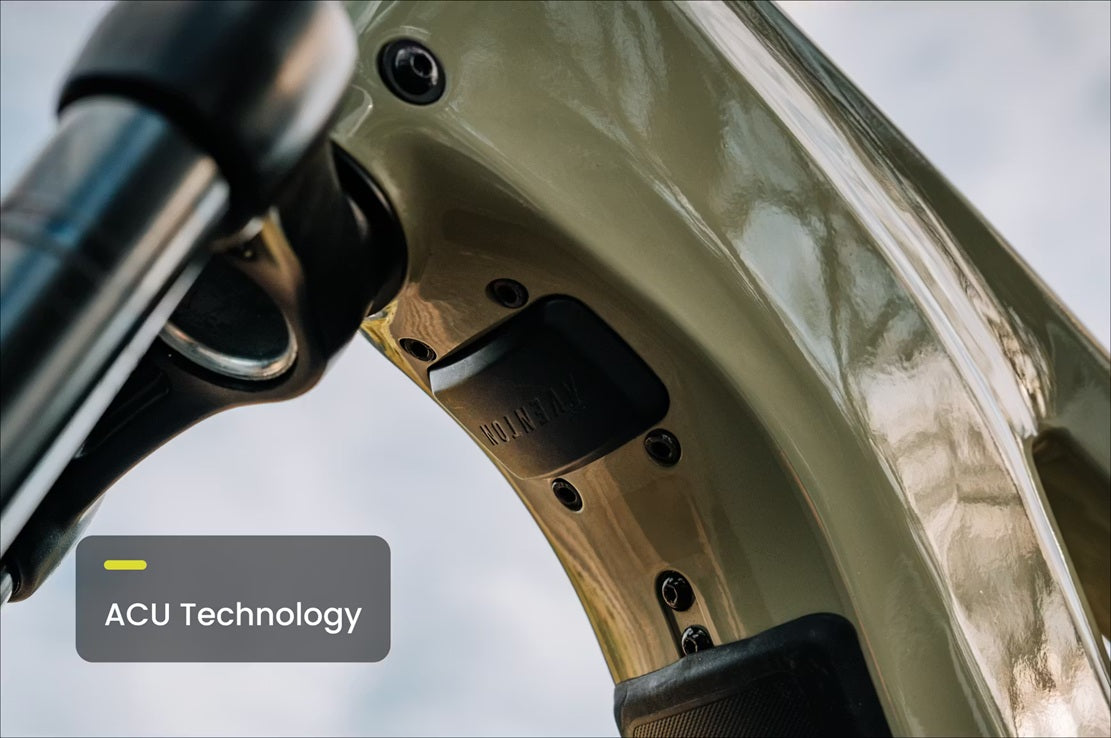

The Aventon Aventure 3 All Terrain E-Bike is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and an added suspension seatpost, the Aventon Aventure 3 All Terrain E-Bike is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G^†/GPS^† capabilities and advanced anti-theft features, the Aventon Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge.

The Aventon Aventure 3 ships as a Class II ebike, with pedal assist and throttle. The Aventon Aventure 3 will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebikes or throttles are prohibited. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range is determined using PAS 1 on flat terrain with a rider weight of 160 lb.*

**Aventon Bikes that are assembled at the Mack Cycle Miami store incur an assembly fee of $185

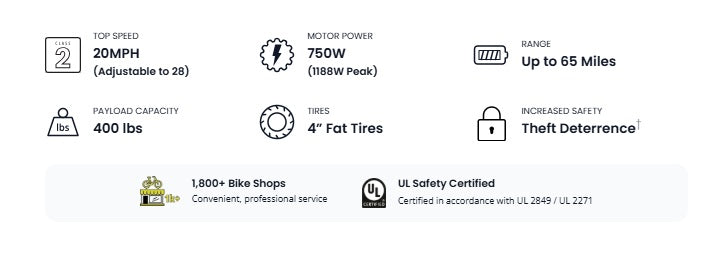

Technical Specifications

• Model - Aventure 3 Step-Through Ebike
• Weight - 77 lbs
• Total Weight Limit - 400 lbs

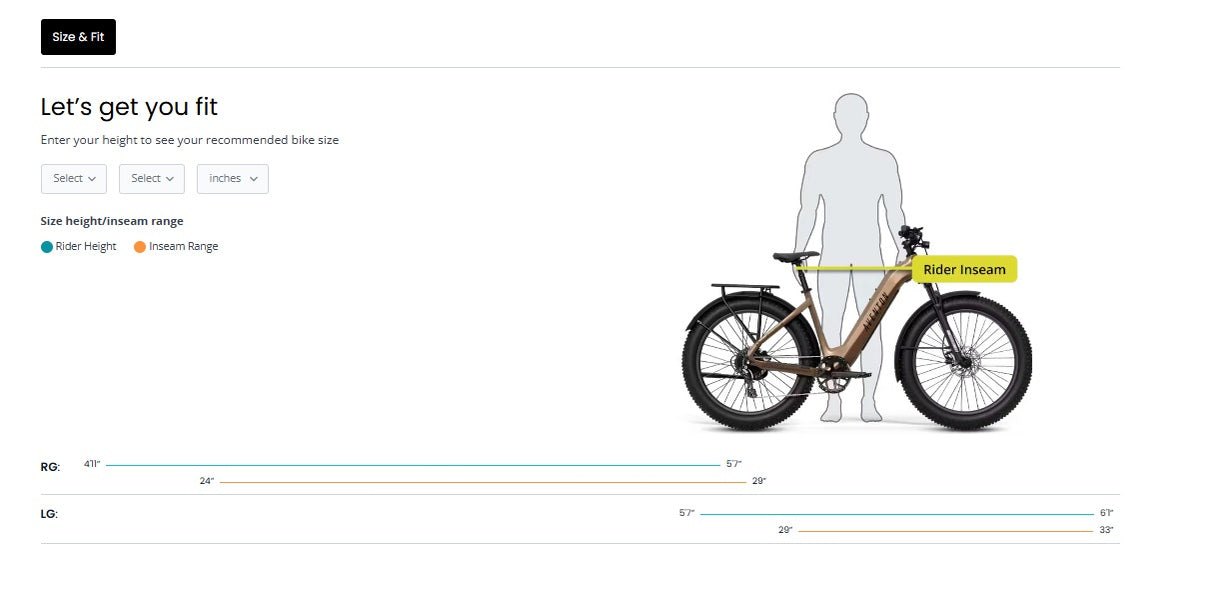

• Rider Height - Regular: 4'11" -5'7" | Large: 5'7" - 6'1"
• Ebike Class - Class 2 Ebike
• Range - Up to 65 miles
• Battery Safety Certifications - Certified to UL 2271
• Ideal Use - All-Terrain
• Bike Safety Certifications - UL Safety Certified UL 2849
• Water Resistance - Bike - IPX5 // Components - IPX6

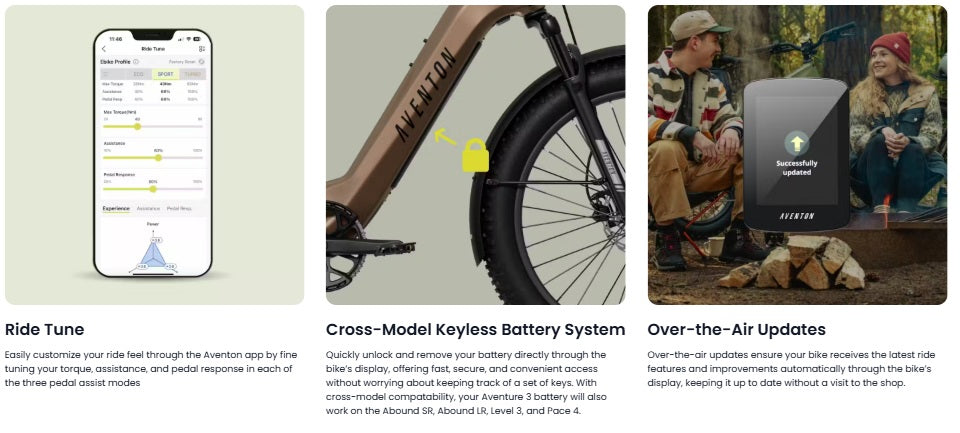

• Pedal Assist - 3 Levels + Boost Mode (with Ride Tune Customization)

Frameset

• Frame - 6061 Aluminum, Gravity Cast Front Triangle
• Fork - Aventon/Zoom Suspension Fork, 80mm travel, with lockout
• Rear Spacing - 190mm
• Fork Spacing - 135mm
• Frame Style - Step-Through

Wheelset

• Front Wheel - 26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve
• Rear Wheel - 26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve

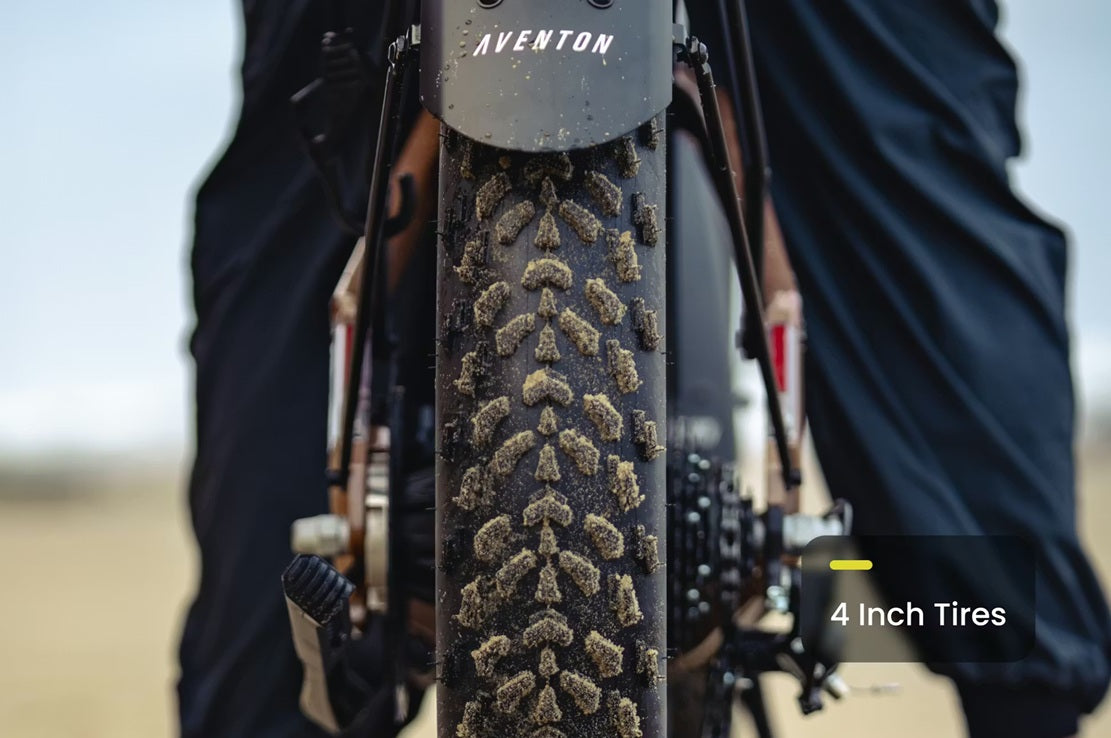

• Tires - Inova 26x4.0 puncture resistant

Ebike System

• Speed - Class 2
• Motor - 36V, 750W Hub Drive
• Motor Torque - 80Nm
• Motor Power - 750W (1188 Peak)
• Display - Aventon BC280
• Battery - Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
• Battery Weight - 8.7lbs
• Controller - 36V/33A
• Throttle - Aventon LH Handlebar Mounted
• Sensors - Double Sided Bottom Bracket Torque Sensor
• Charger - 36V Output: 42V/ 4A
• Charging time from 0% to 100% - 5 hours
• Lights - Front and rear lights integrated

Brakes

• Front Brake - Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
• Rear Brake - Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
• Front Brake Rotor - Tektro 180mm 6 bolt
• Rear Brake Rotor - Tektro 180mm 6 bolt

Drivetrain

• Rear Derailleur - Shimano Altus 8-Speed
• Shifter - Shimano 8-Speed Trigger
• Chain - 7/8 Speed 118L
• Cassette - 12-32T / 8 Speed Shimano CS HG200-8
• Chainring - 48T
• Crankset - 3pc, 170mm crank arm
• Bottom Bracket - 100x177 Square Taper, Double Sided Torque sensor bottom bracket
• Pedals - 9/16" Alloy Platform

Cockpit

• Saddle - Aventon Saddle

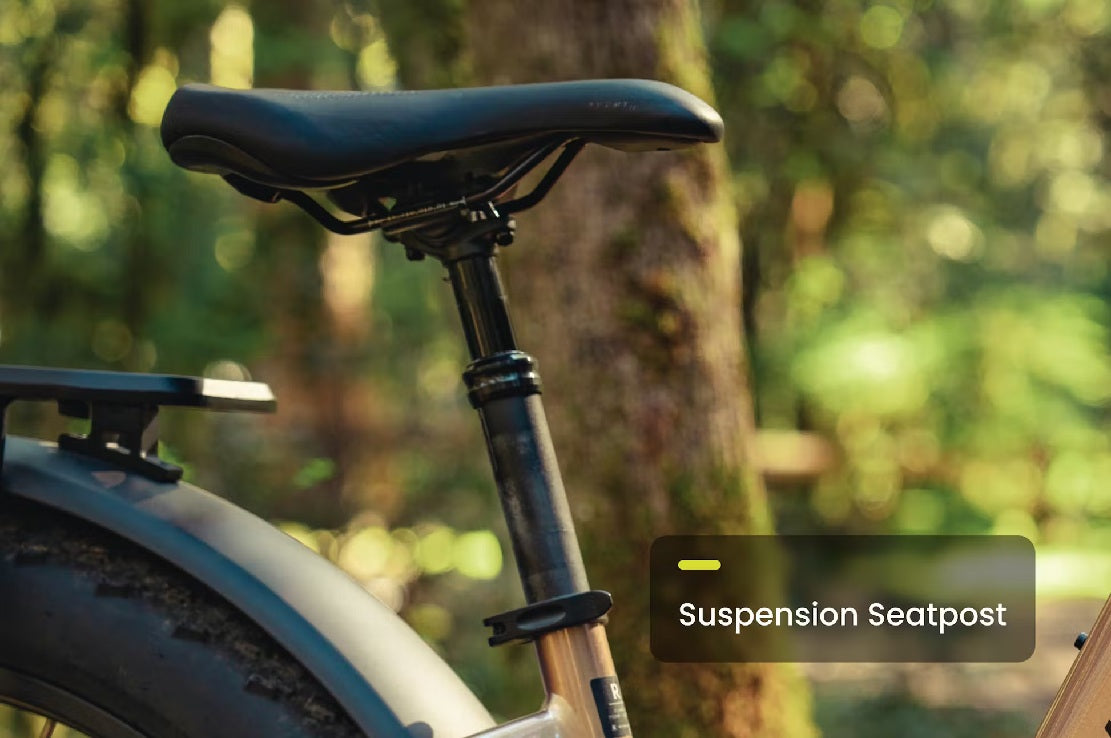

• Seatpost - Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
• Seatpost Clamp - 34.9mm
• Handlebars - Aluminum 31.8mm, 680mm
• Grips - Aventon Lock on grips
• Headset - Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs

Included Accessories

• Kickstand - Included, rear mount
• Rear Rack - Included
• Fenders - Included

*Specifications subject to change without notice

**Aventon Bikes that are assembled at the Mack Cycle Miami store incur an assembly fee of $185

* Mack Cycle recommends to have your local bike store or authorized mechanic complete the assembly of your new Aventon Aventure 3 E-bike.
