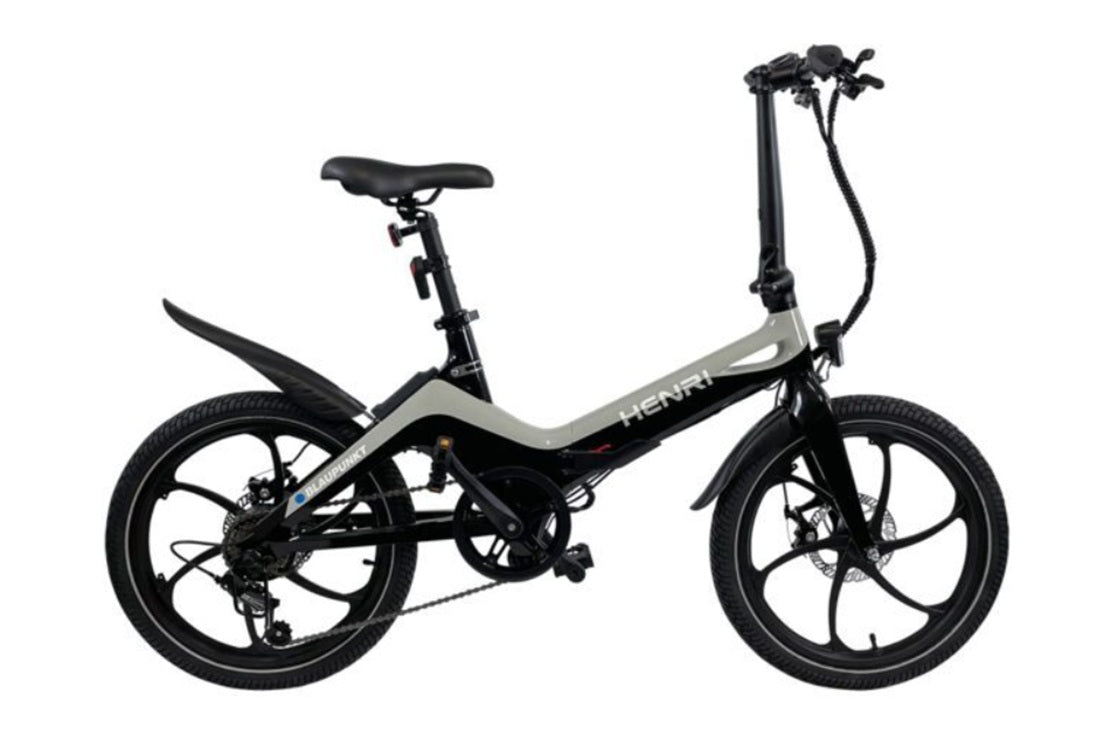

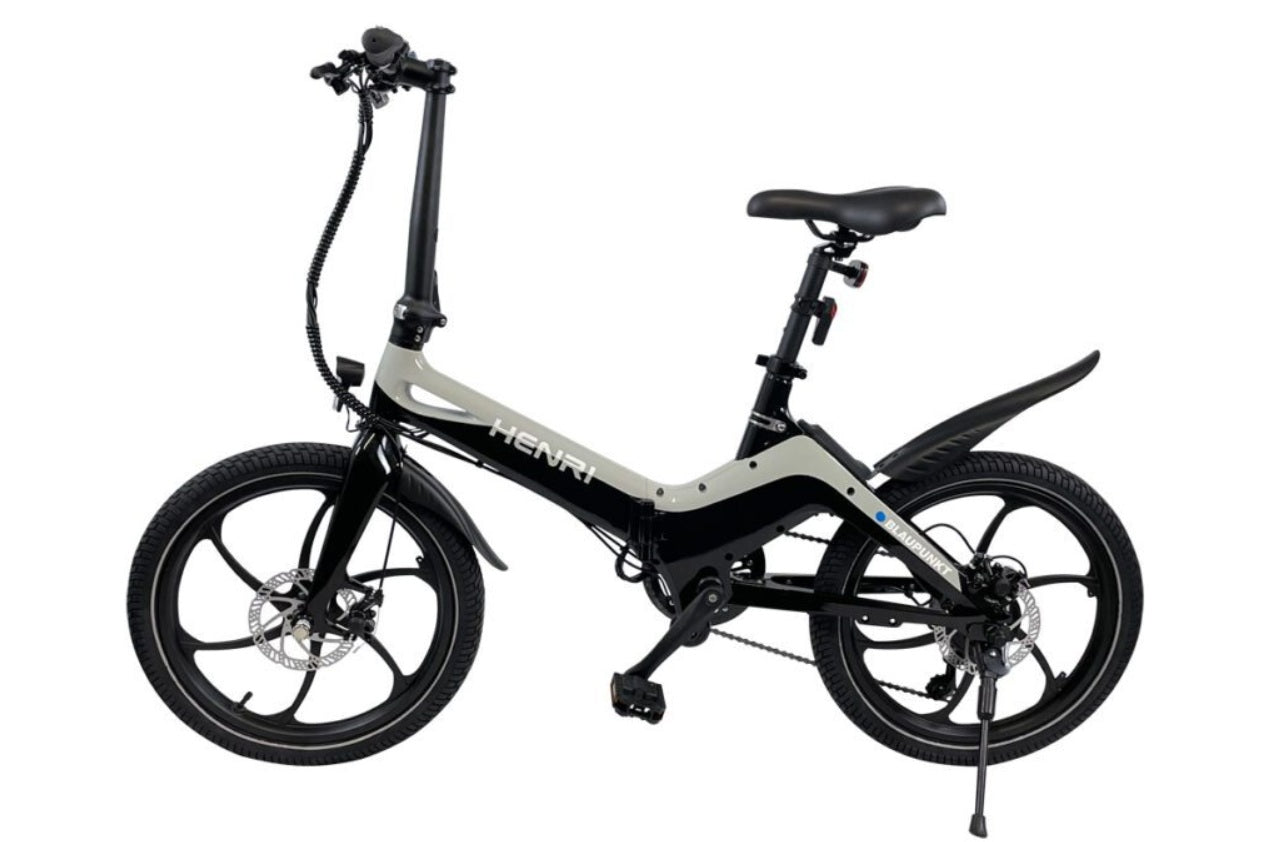

Blaupunkt Henri Shimano 20 Inch e-Folding Bike

The Blaupunkt Henri 20 Inch e-Folding Bike is a 20 inch e-folding bike at the highest level.

The Blaupunkt Henri 20 Inch eFolding Bike is constructed with an extremely stable magnesium frame with an unmistakably cool design. The sporty bike with practical quick release mechanism.

Intelligent clamping mechanism!

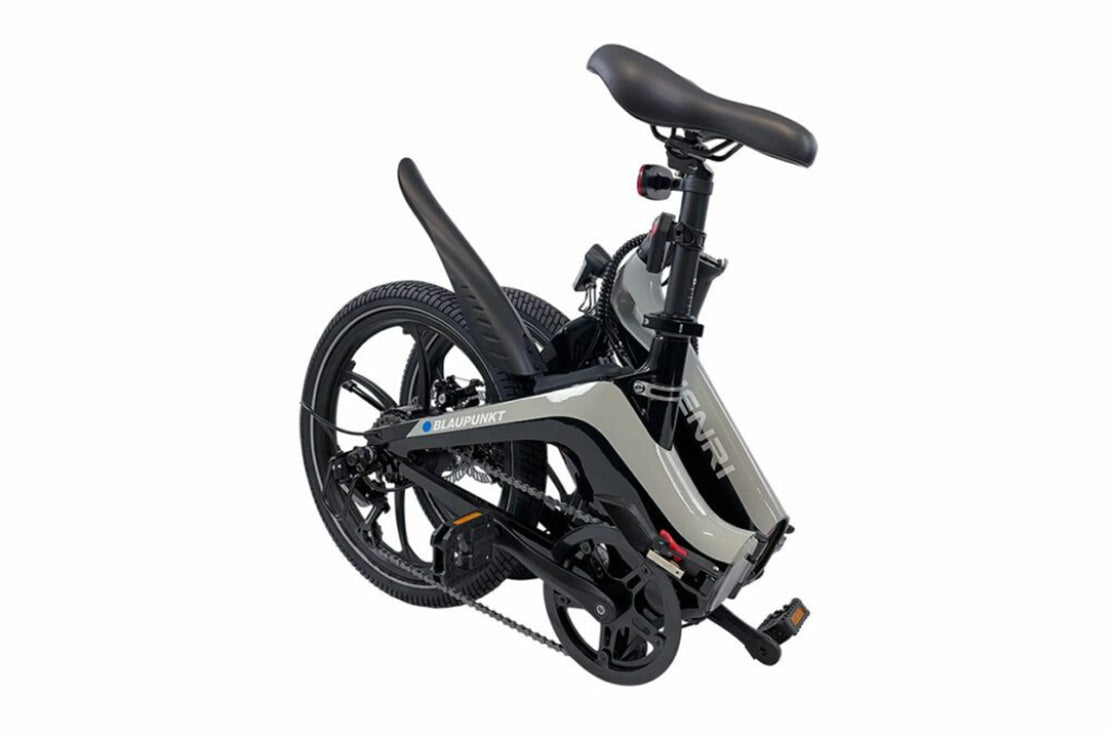

Equipped with an intelligent clamping mechanism, the Blaupunkt HENRI® can be easily folded and thus reduced in size by half. In just 4 steps, the Blaupunkt Henri 20 Inch Folding e-bike becomes a handy and easy-to-stow “package”. The low weight of approx. 21 kg also makes it easy and comfortable to take with you on the bus and train.

Strong engine!

The strong 36 volt rear wheel hub motor with 50 Nm provides the perfect support, which together with the integrated and powerful lithium-ion battery forms a perfect team. The motor is durable and maintenance-free and to protect the battery, the integrated BMS (Battery Management System) always ensures an optimal energy supply.

LCD bike computer!

The 3 levels of the motor are controlled via the easy-to-read LCD computer. It also provides important information such as the current battery life, information about the route, speed and much more. The engine power can also be completely deactivated.

Check out the Blaupunkt Henri 20 Inch e-Folding Bike in Action!

Highlights

• Blaupunkt 20“ design bike in color agate grey/ black
• Stable, foldable Magnesium frame
• Easily stowable thanks to intelligent quick release mechanism incl. foldable pedals & handlebar
• Magnetlock for secure folding
• Transportation wheel
• Tektro disc-brakes
• 6 gear Shimano SIS derailleur
• Comfortable 2.125 tires
• LCD-computer with 3- step PAS up to 25 km/h
• Li-Ion battery 36 V/ 10,5 Ah with short charge time

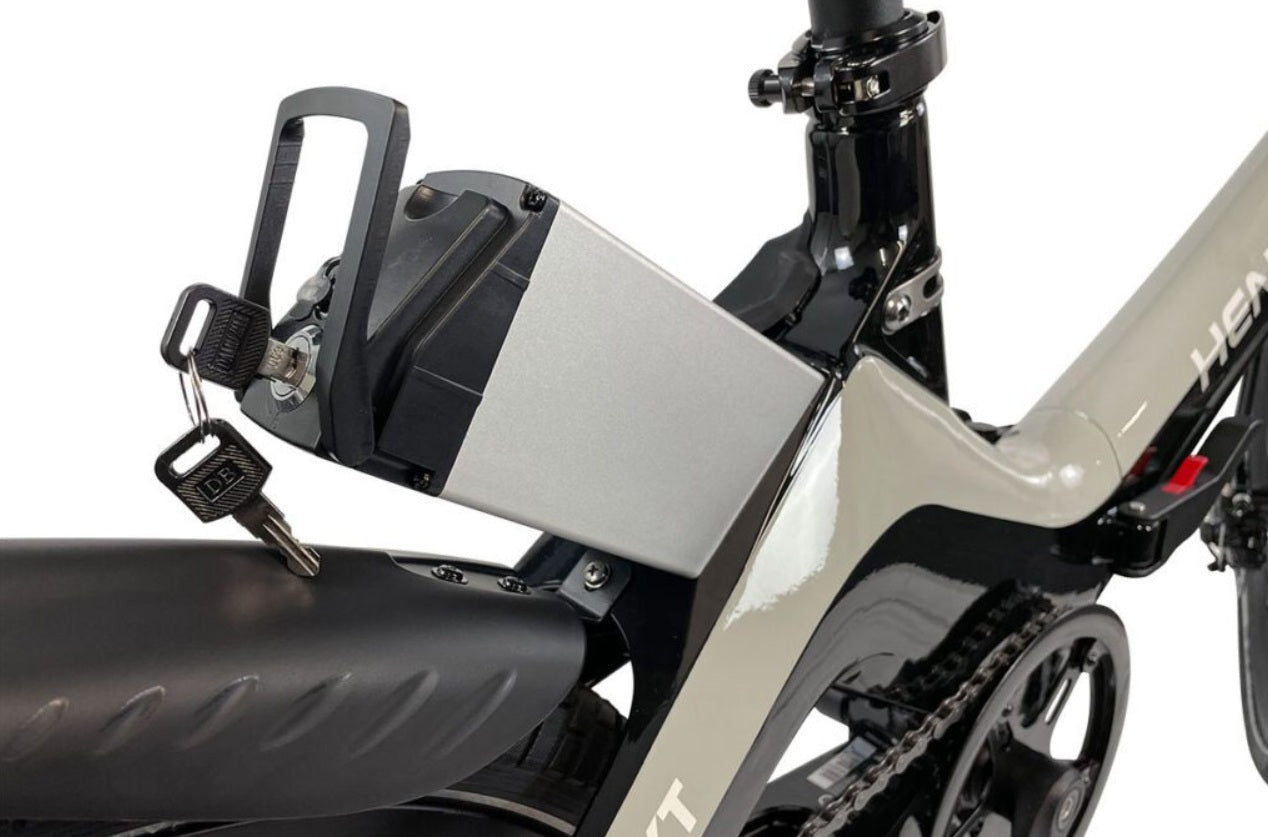

• Battery removable/ lockable
• Range up to 70 km/ 45 miles*
• Only about 21 kg weight with battery
• Meets the requirements of german StVZO
• Designed in Germany, Assembled in EU

Specifications

• Frame: Magnesium alloy
• Rims: Magnesium, black powdered
• Tires: 20“x 2.125
• Shift lever: Shimano 6- gear SIS derailleur (44T / 14T-28T )
• Brakes (front/ rear): Tektro disc brakes, mechanical, 160 mm
• Headset: Semi integrated
• Max. payload: 100 kg (incl. driver)

DRIVE

• Engine: Rear hub motor Xiongda XD-20GS
• Battery: 36 V/ 10,5 Ah LG- Lithium- Ion battery w. integrated BMS
• Controller: 36 V/ 15 A DC
• Sensors: Cadence- & speed sensor
• Driving modes: 3 level PAS/ PAS off
• Bike computer: LC- Display wit 3 function keys, backlight. Functions: Speed, ODO, TRIP, TIME, PAS LEVEL, battery, lights, auto- power- off, error display
  Charger: Switching power supply (AC 100 – 240 Volt), 42 V, 2 ACharging time: about 4- 6 h
• Range: Up to 70 km/ 45 miles (1)
• Max. speed (PAS): max. 25 km/h

LIGHTING

• Lamps/ reflectors: LED- headlight with reflector, EPAC powered Rechargeable USB LED- battery rear light at saddle stem Z- reflector, Pedals w. integrated reflectors
• Tires with circumferential reflector stripes

FURTHER CONFIGURATION

• Mudguards:  Yes, included accessories
• Kickstand: Yes, left sided at rear axle’
• Pedals: Foldable
• Battery removable: Yes
• Battery lockable: Yes
• Charging if installed/ removed: Yes / Yes
• Battery indicator: Yes, computer display
• Additional battery: Optional
• Chain protection: Yes, integrated
• Luggage carrier: No
• Bell: Yes, integrated on brake lever
• Sprung seat post: No
• Suspension fork: No
• Carry bag: Optional
• Handlebar bag: Optional

SIZE / WEIGHT

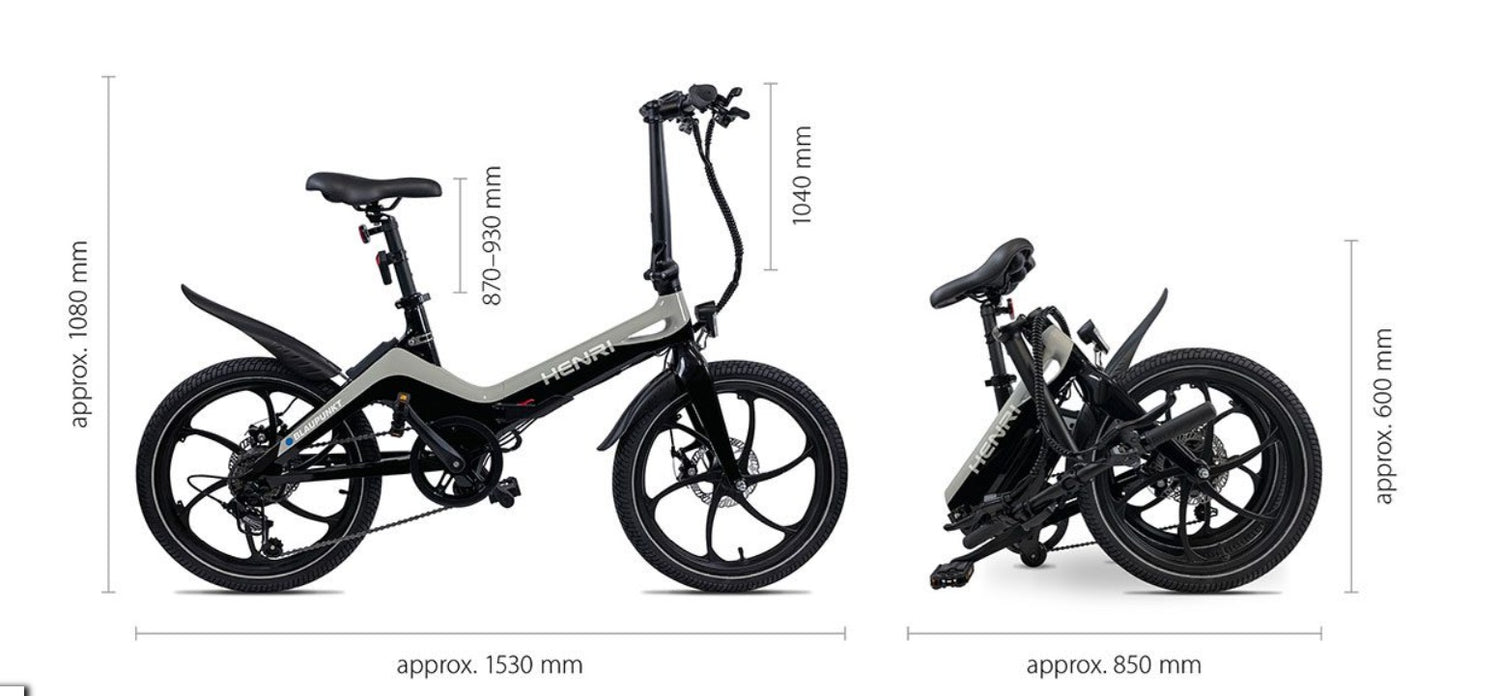

• Size (unfolded): About 1530 x 570 x 1080 mm (L x B x H)
• Size (folded): About 850 x 500 x 600 mm (L x B x H)
• Wheel size: 20“x 2,125
• Handlebar height: 1040 mm
• Handlebar: 570 mm
• Saddle height: 870- 930 mm
• Seat post: Ø 31.6 mm, 300 mm (optional 400 mm)
• Wheelbase: 1010 mm
• Chassis clearance: 200 mm (till transport wheel)
• Frame size: 600 mm
• Weight incl. battery: about 21 kg
• Battery weight: about 1.5 kg
• Replacement Battery: Partnumber 2 008 020 111 069
  Certifications: EPAC DIN EN 15194:2017, CE, StVZO, UN38,3, IPX4

LOGISTICAL DATA (2)

• Box dimensions: about 850 x 430 x 640 mm (L x W x H)
• Box weight: about 4 kg carton, 0,1 kg foam 0,01 kg PVC (foil, cable ties…)
• Weight total: about 26.5 kg
  Customs tariff number: 87116010

*The range depends on the load, driving style and area of use
(2) Subject to modification

• Specifications subject to change without notice

*Mack Cycle recommends that you have your new Blaupunkt bike assembled at your local bike store.  Your store will charge an assembly fee.
