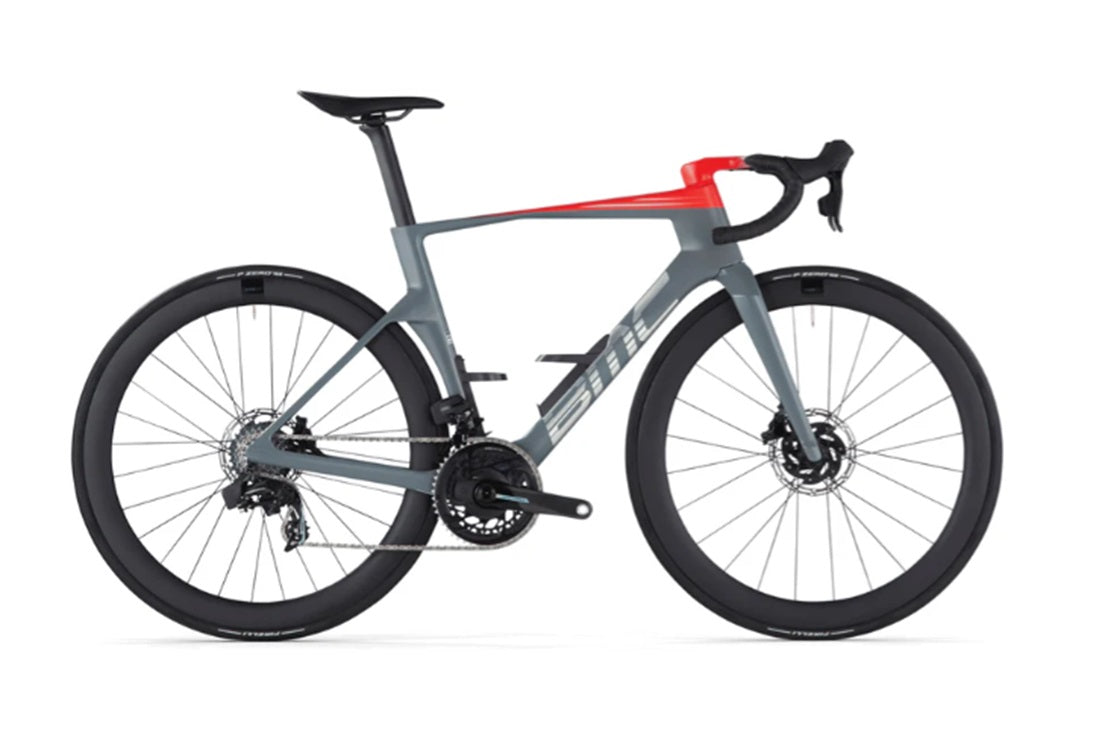

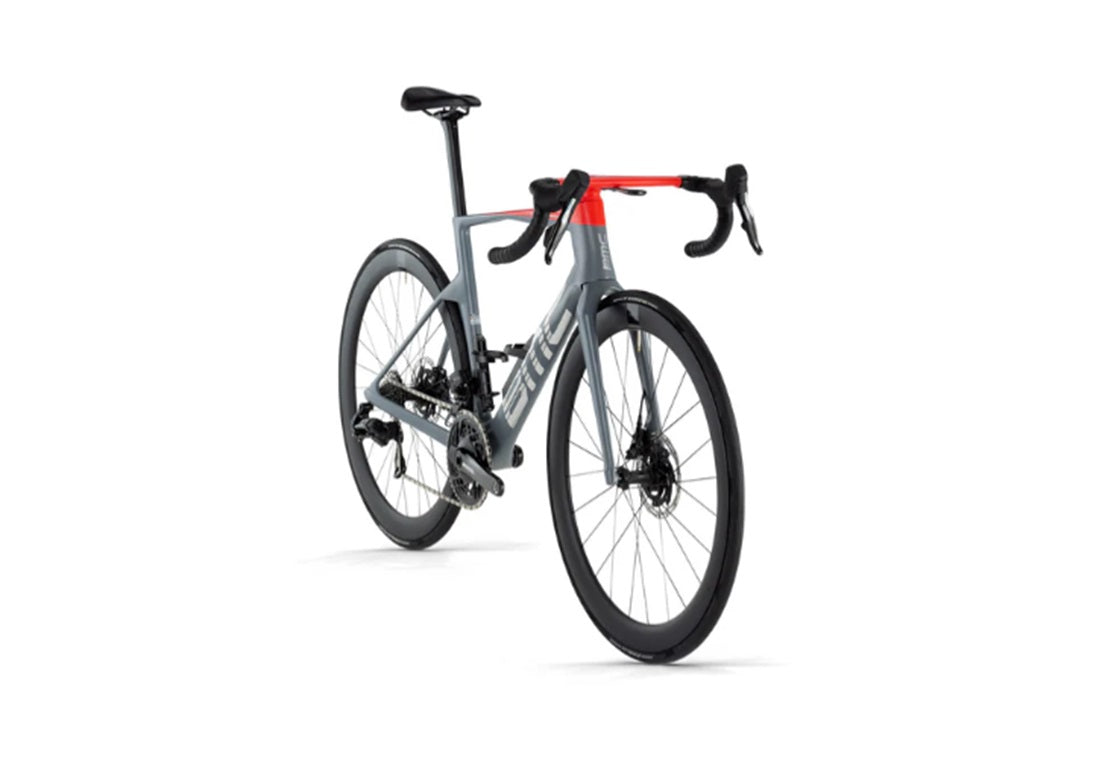

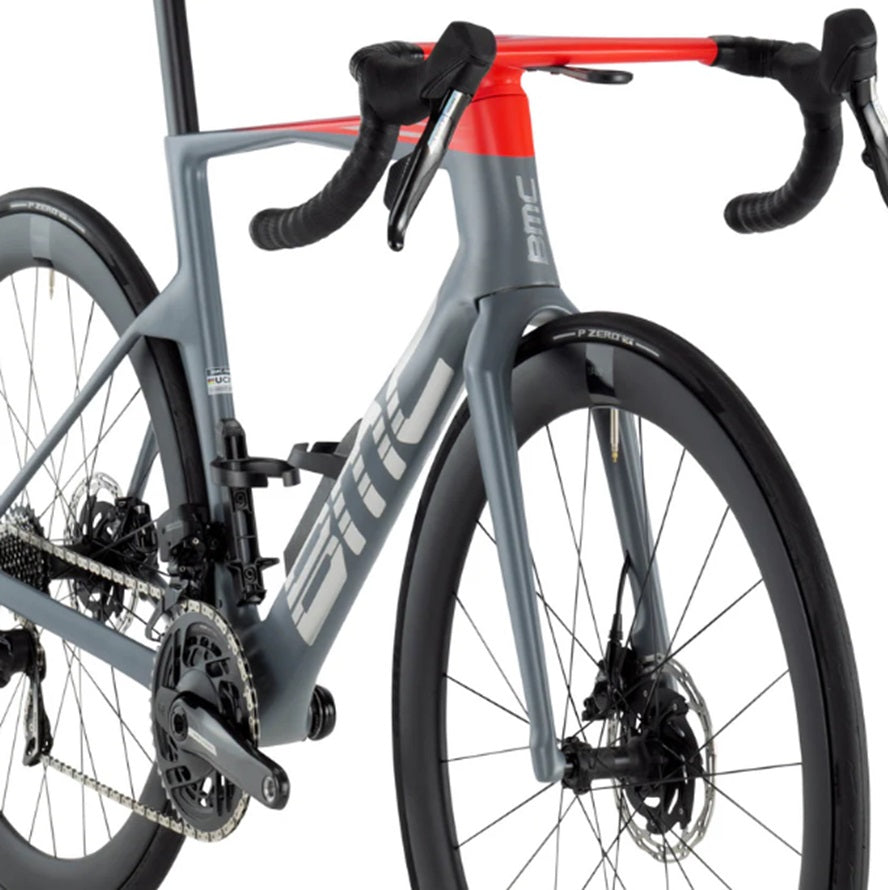

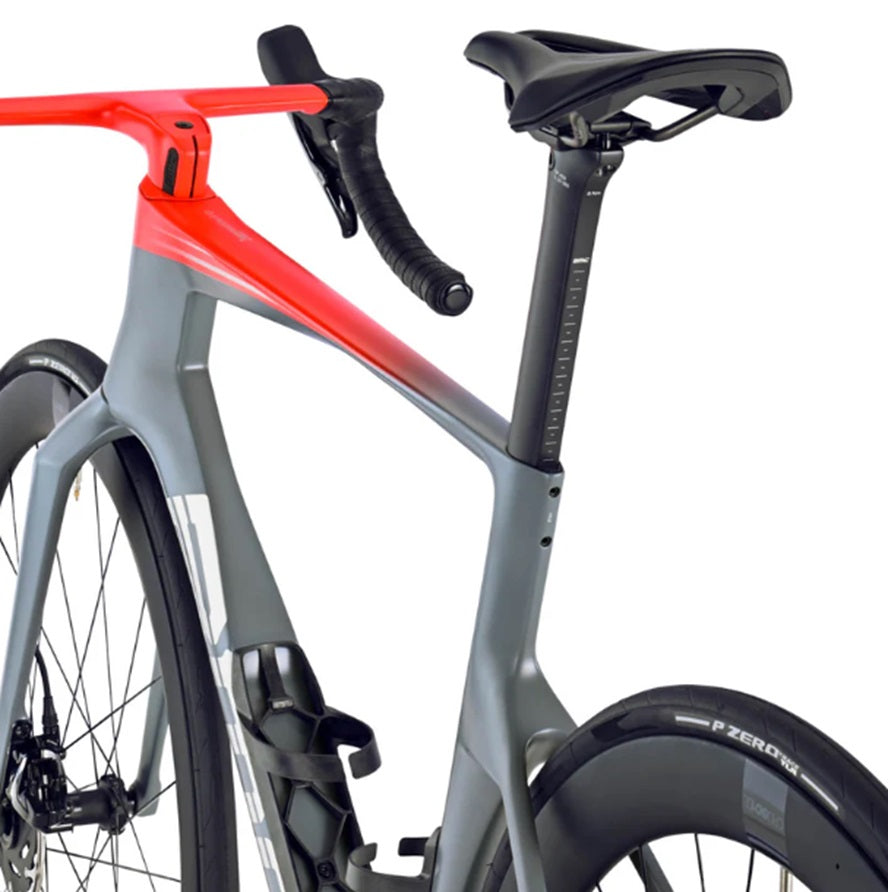

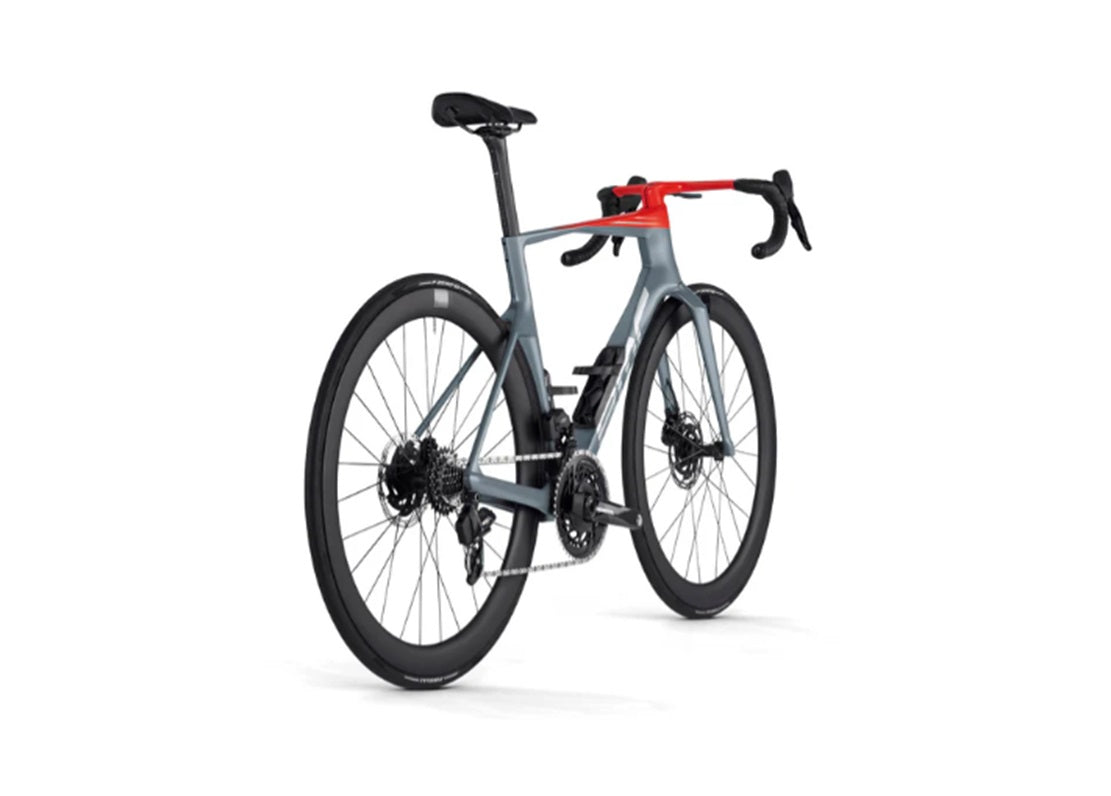

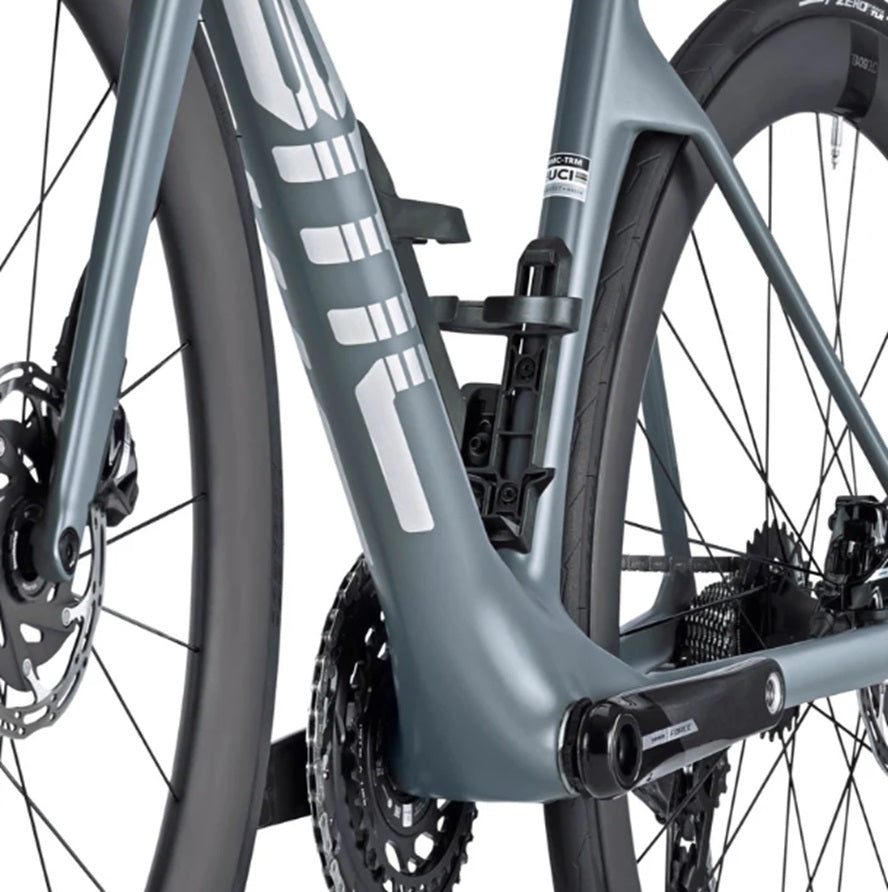

2024 BMC TeamMachine R 01 Three 12 Speed Disc Road Bike

The all-new BMC TeamMachine R 01 Three 12 Speed Disc Road Bike throws compromise out the window. Developed in collaboration with Red Bull Advanced Technologies, the BMC Teammachine R redefines what a race bike is capable of. It does everything you ask of it when you need it most. Built with SRAM Force eTap AXS Drivetrain and powermeter, CRD-501 SL wheelset as well as BMC’s ICS Carbon Aero Cockpit.

Specifications

Frameset

• Frame

  • Teammachine R 01 Premium Carbon with Aerocore Design
  • ICS Technology Stealth Cable Routing
  • Stealth Dropout Design
  • Flat Mount Disc
  • 12 x 142mm Thru-Axle

• Fork

  • Teammachine R 01 Premium Carbon
  • ICS Technology Stealth Cable Routing
  • Stealth Dropout Design
  • Flat Mount Disc
  • 12 x 100mm Thru-Axle

Cockpit

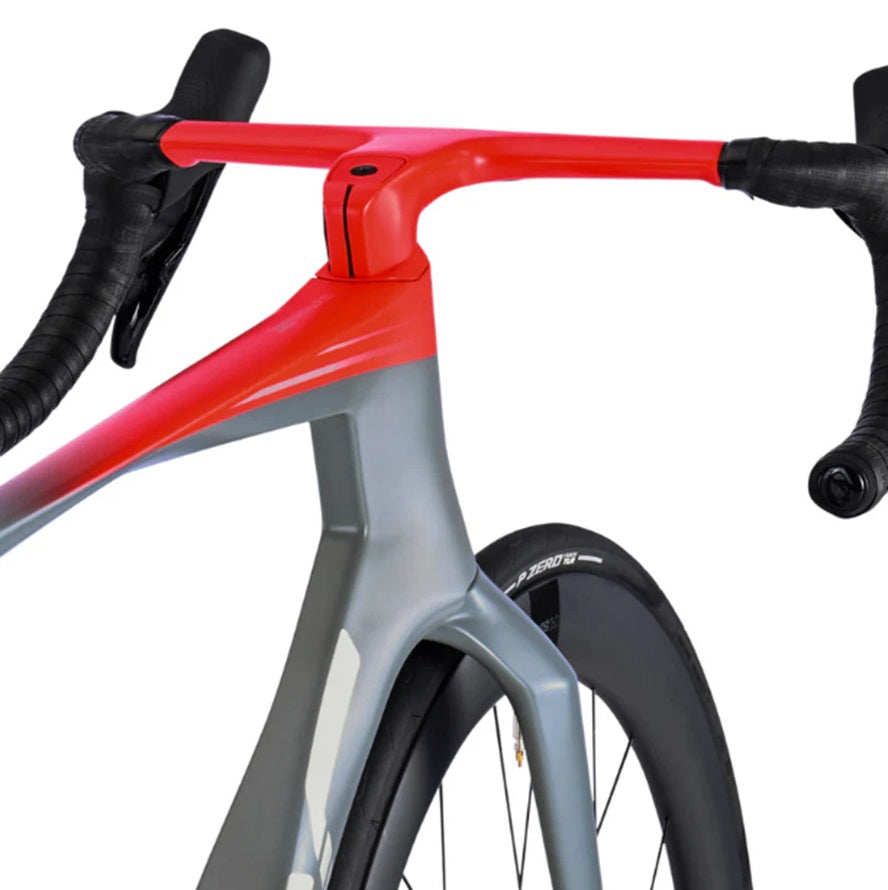

• Handlebar - BMC ICS Carbon Aero | One-Piece Full Carbon Cockpit
• Seat
  • Seatpost - Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
  • Saddle - Fizik Argo Vento R3 | 140mm

Drivetrain

• Crankset - SRAM Force
• Chainrings - 48-35T
• Power Meter - SRAM Force Power Meter
• Cassette - SRAM Force XG-1270
• Cassette Size - 10-28T
• Chain - SRAM Force
• Front Derailleur - SRAM Force eTap AXS
• Rear Derailleur - SRAM Force eTap AXS
• Shifters - SRAM Force eTap AXS
• Gears - 2 x 12
• Bottom Bracket - PF86 Bottom Bracket

Brakes

• Brake Levers / Calipers - SRAM Force eTap AXS
• Rotors - SRAM Centerline XR | Centerlock
• Rotor Size (Front/Rear) - 160 / 160mm

Wheels

• Rims - CRD-501 SL Carbon | Tubeless Ready | 50mm
• Hubs (Front/Rear) - CRD-501 SL
• Tires - Pirelli P Zero Race TLR | 26mm
• Tubeless Information - Tubeless Ready Rims | Tubetype Tires

Accessories

• Aerocore Bottle Cages
• Additional Information - Tire Clearance - 30mm
• Weight without Pedals - 7.5 Kg (16.535 lbs)
• ASTM Classification - Level 1
• System Weight Limit - 110kg (242.51 lbs)

*Specifications subject to change without notice

*Mack Cycle recommends that you have your new BMC bike assembled at your local bike store.  Your store will charge an assembly fee.
