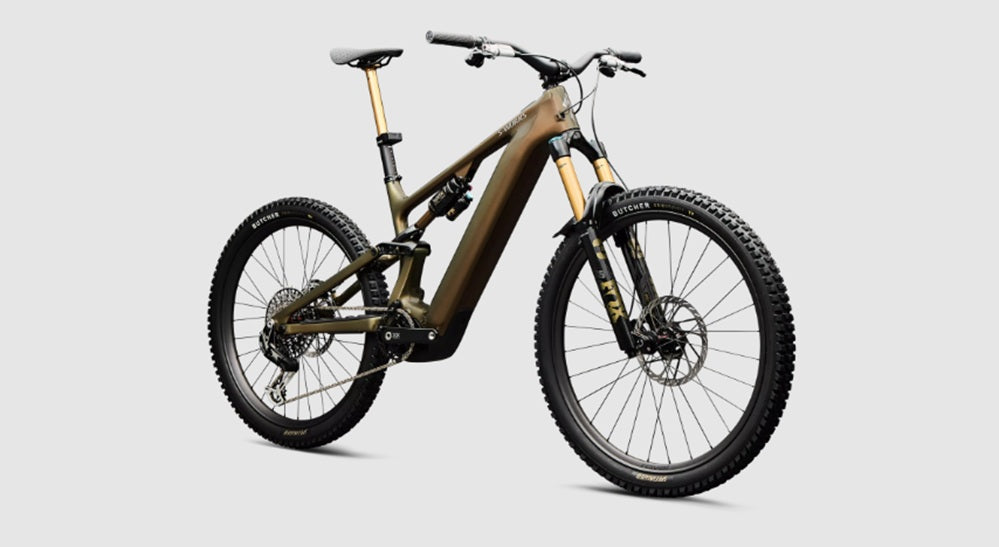

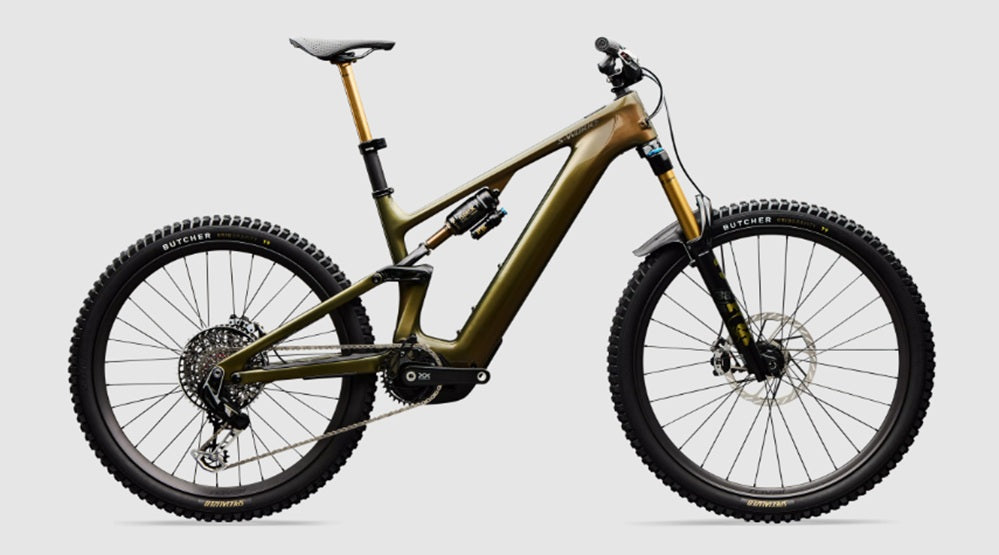

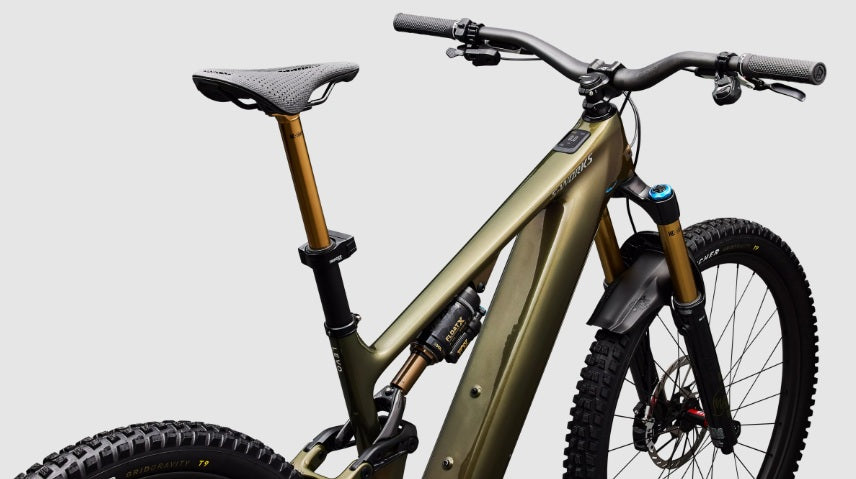

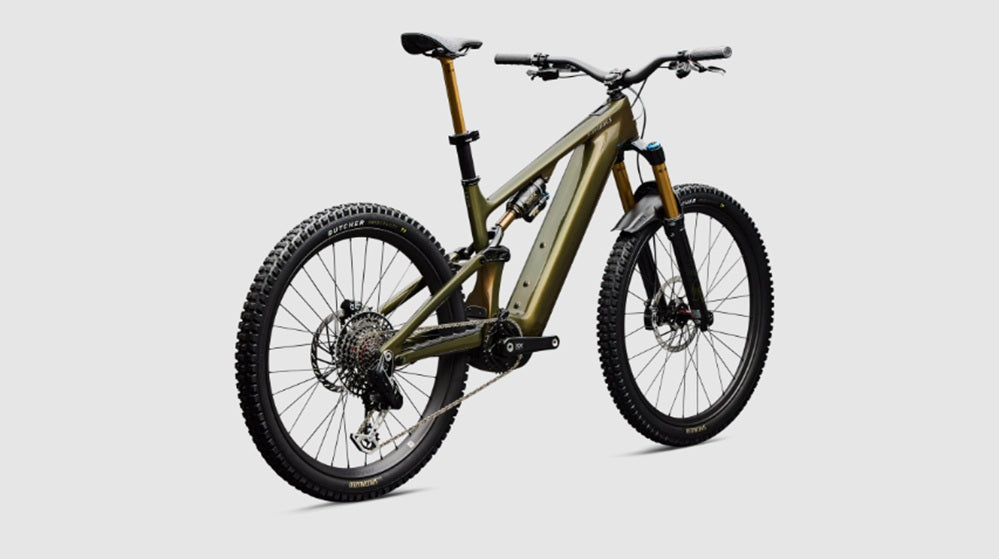

Specialized S-Works Levo 4 SRAM XX Eagle Carbon Full Suspension Mountain Electric Bike

The Specialized Science Club Introduces the Specialized S-Works Levo 4 SRAM XX Eagle Carbon Full Suspension Mountain Electric Bike, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

At a Glance

• Use - Full Power E-MTB Trail
• E-System - S-Works 3.1 Motor w/ 720 Watts & 111 Nm, 840 Wh battery, up to 4.75 hour range
• Frame - FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
• Suspension - Front: 160mm FOX 38 FACTORY GRIPX2, Rear: 150mm GENIE - FOX FLOAT X Factory
• Drivetrain - SRAM XX Eagle T-Type AXS
• Wheels - Roval Traverse HD Carbon / DT 240 DEG

Specifications

E-Bike

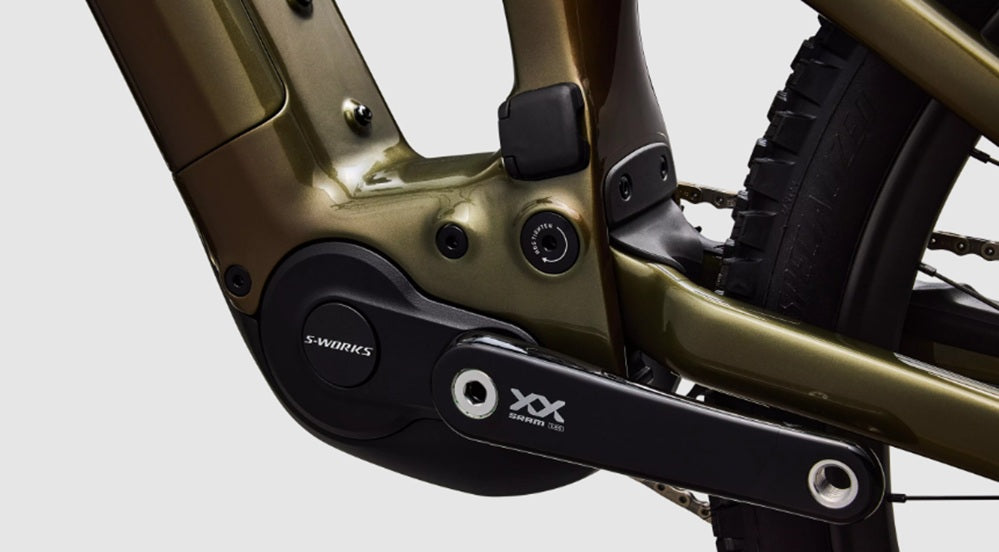

• Motor - All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power
• Battery - 840Wh battery

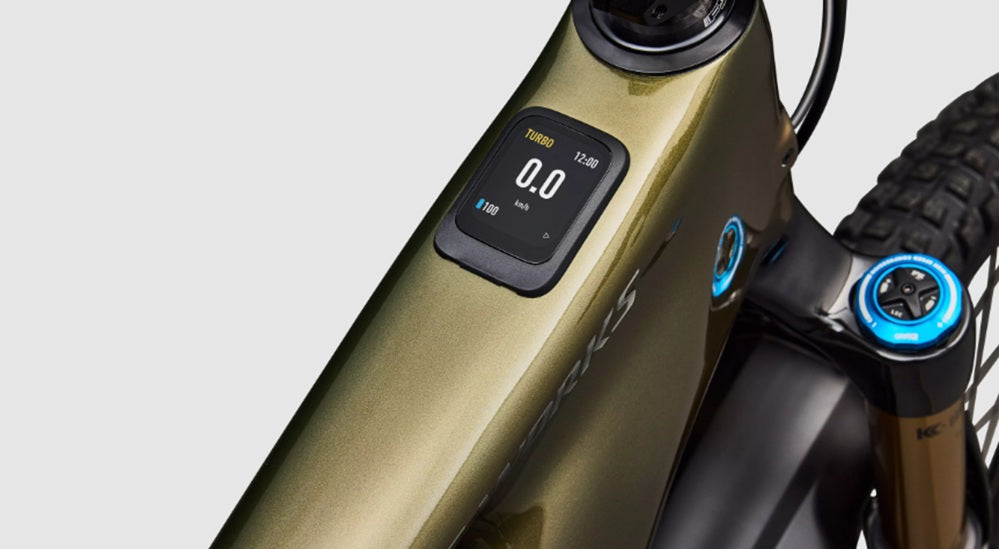

• UI/Remote - All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
• Charger - Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge t4o 80%

Frameset

• Frame - All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
• Seat Binder - Alloy, 38.6mm

Suspension

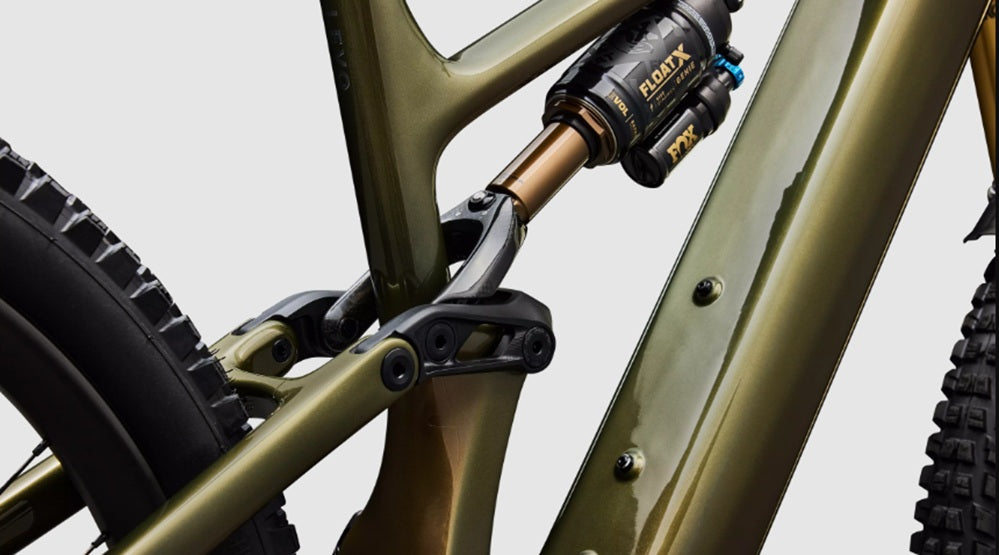

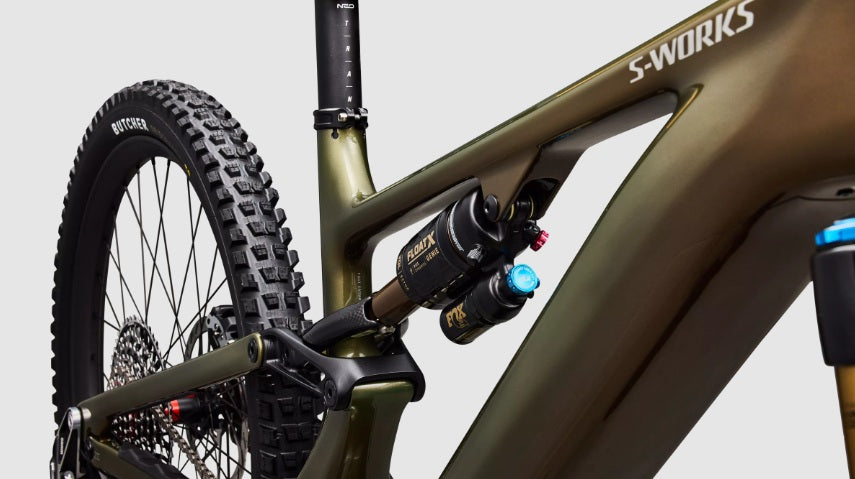

• Rear Shock - FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
• Fork - FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Brakes

• Front Brake - SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
• Rear Brake - SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

• Shift Levers - SRAM AXS POD Ultimate Controller with Discrete clamp
• Rear Derailleur - SRAM XX Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
• Cassette - SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
• Chain - SRAM XX EagleTransmission Flattop Chain
• Crankset - SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm
• Chainrings - SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires

• Front Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
• Front Wheel - Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h
• Rear Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
• Rear Wheel - Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h
• Inner Tubes - Standard, Presta Valve

Cockpit

• Stem - Industry 9 Mountain stem, 35mm clamp, 40mm length

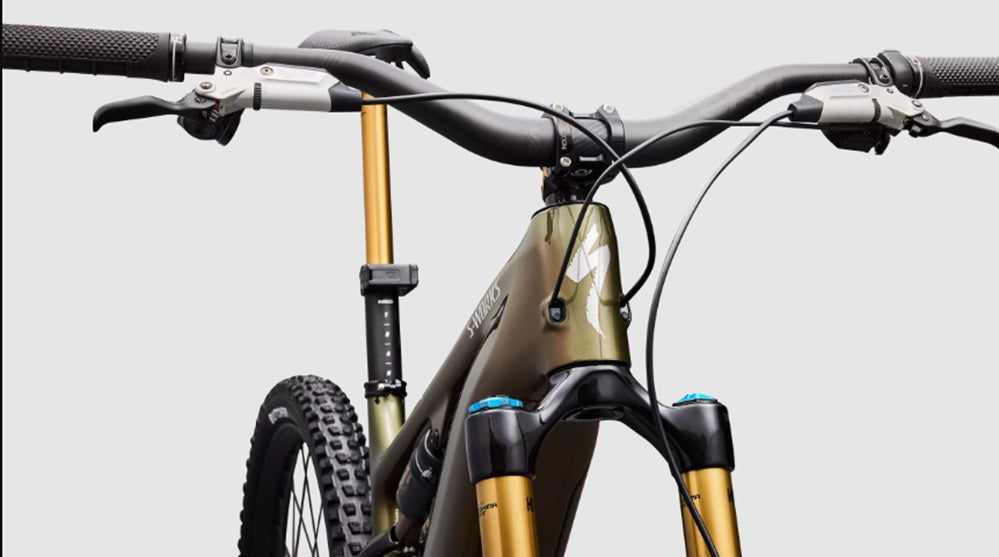

• Handlebars - RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
• Grips - Deity Lockjaw grips
• Saddle - Specialized Power Pro Mirror w/hollow Ti rails
• SeatPost - FOX Transfer NEO Factory, 34.9, S2: 125mm, S3: 175mm, S4-S6: 200mm

Accessories

• SWAT - SWAT internal downtube storage

• Compliance Certification - As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
• For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

• Weight - 23.68kg (52 lb, 3.3 oz) - Based on size S4

• Specifications subject to change without notification

• Mack Cycle recommends having your bike assembled by your local, authorized Specialized retailer, who will charge an assembly fee.
