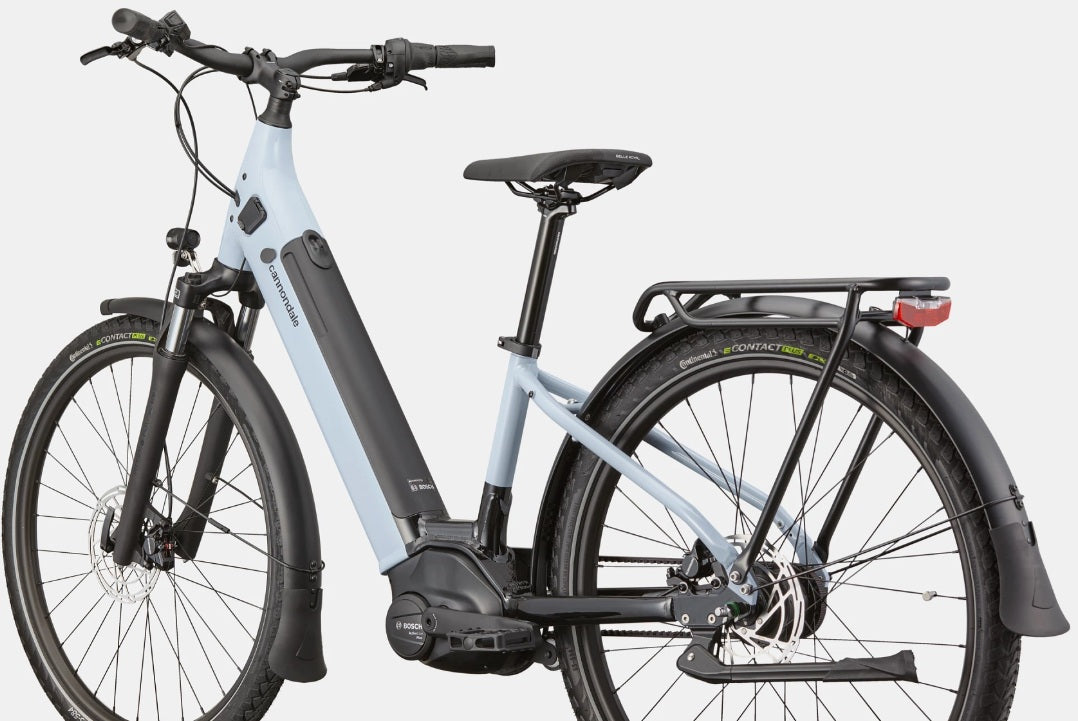

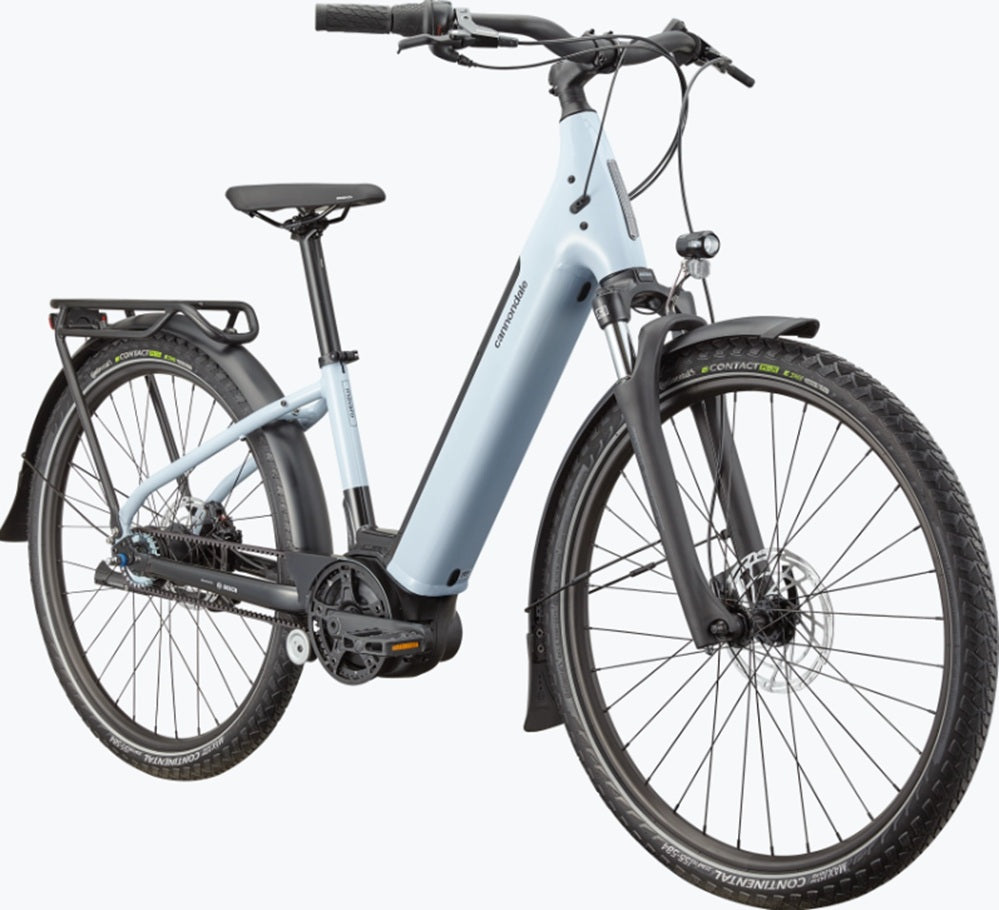

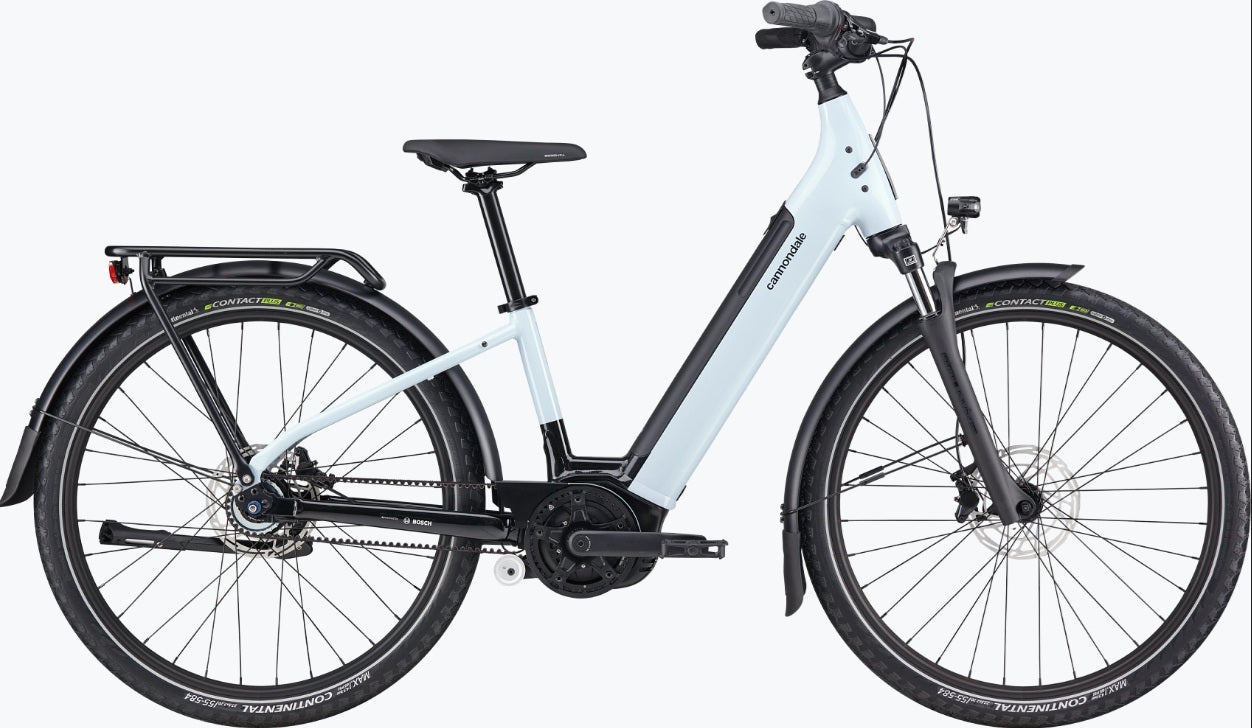

Cannondale Mavaro 3 Low Step Thru 7 Speed Active E-Bike

Highlights

• Low step-thru SmartForm C2 Alloy frame / Suntour Mobie suspension fork
• Gates Carbon Belt drive / Shimano Nexus 7-speed internal gear hub
• Bosch Smart System - Active Line Plus 20 mph drive-unit / 500Wh battery / Range: up to 70 miles
• Certifications - Conforms to ANSI/CAN/UL2849

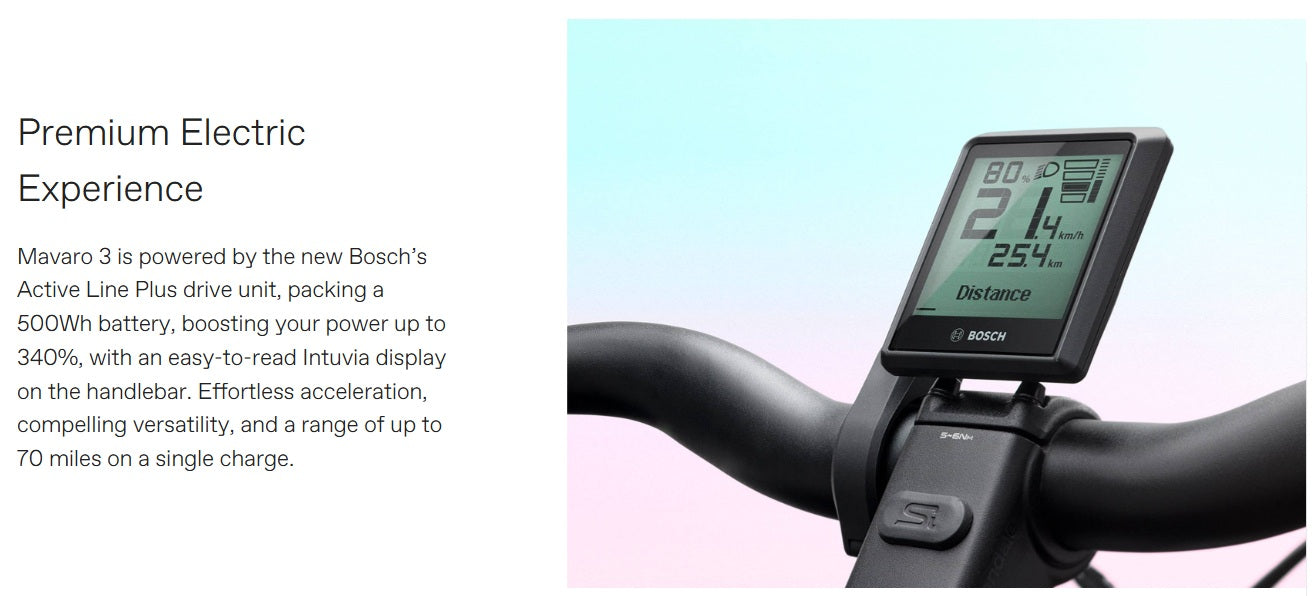

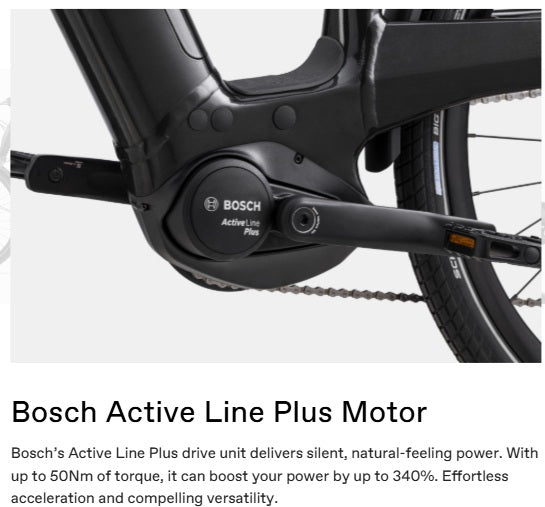

• Premium Electric Experiance - The Cannondale Mavaro 3 is powered by the new Bosch’s Active Line Plus drive unit, packing a 500Wh battery, boosting your power up to 340%, with an easy-to-read Intuvia display on the handlebar. Effortless acceleration, compelling versatility, and a range of up to 70 miles on a single charge.

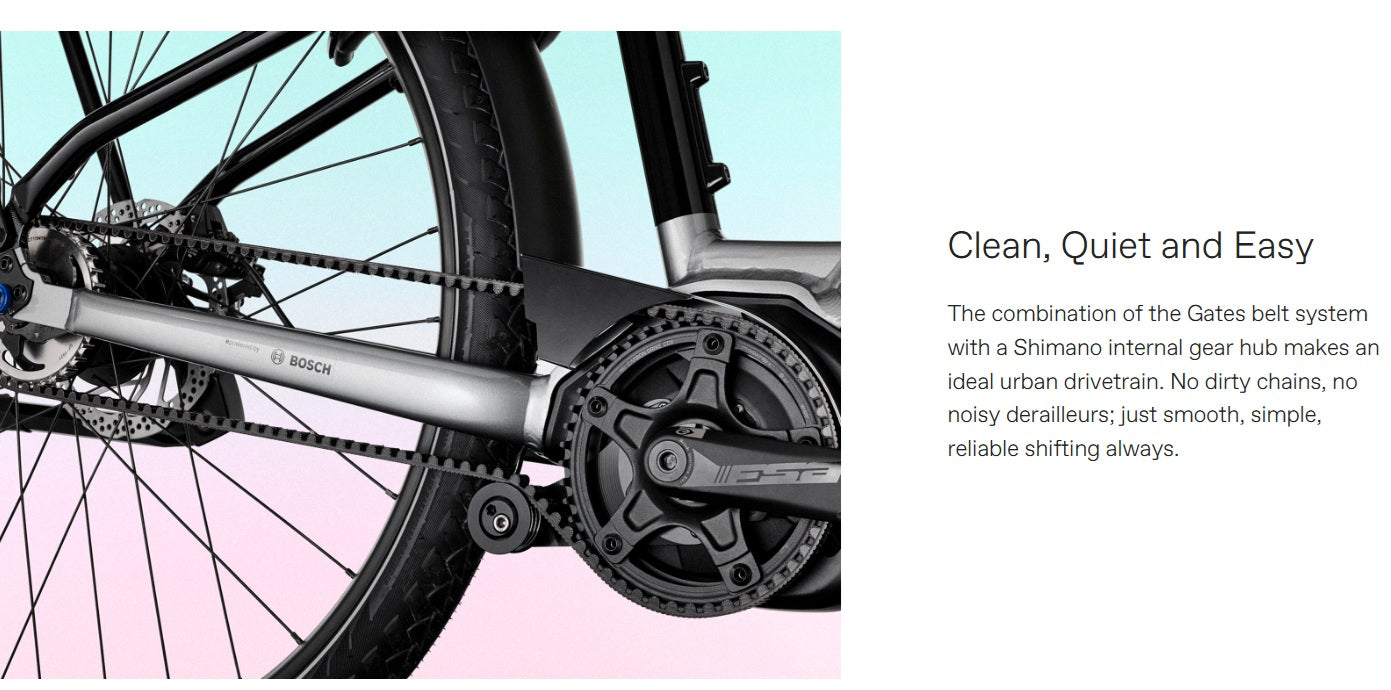

• Clean, Quiet, and Easy - The combination of the Gates belt system with a Shimano internal gear hub makes an ideal urban drivetrain. No dirty chains, no noisy derailleurs; just smooth, simple, reliable shifting always.

Specifications

• Platform - Mavaro Neo
• Model Name - Mavaro 3 Low StepThru
• Model Code - C68353U

Frameset

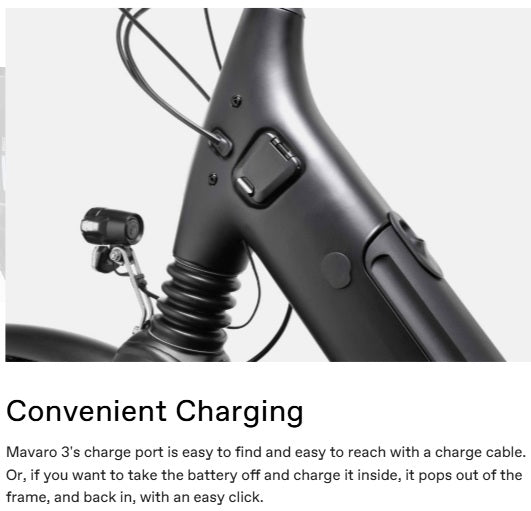

• Frame - SmartForm C2 Alloy, low step-thru, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
• Fork - SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
• Headset - Semi-Integrated, Tapered; 1-1/8"-1-1/2"

E-System

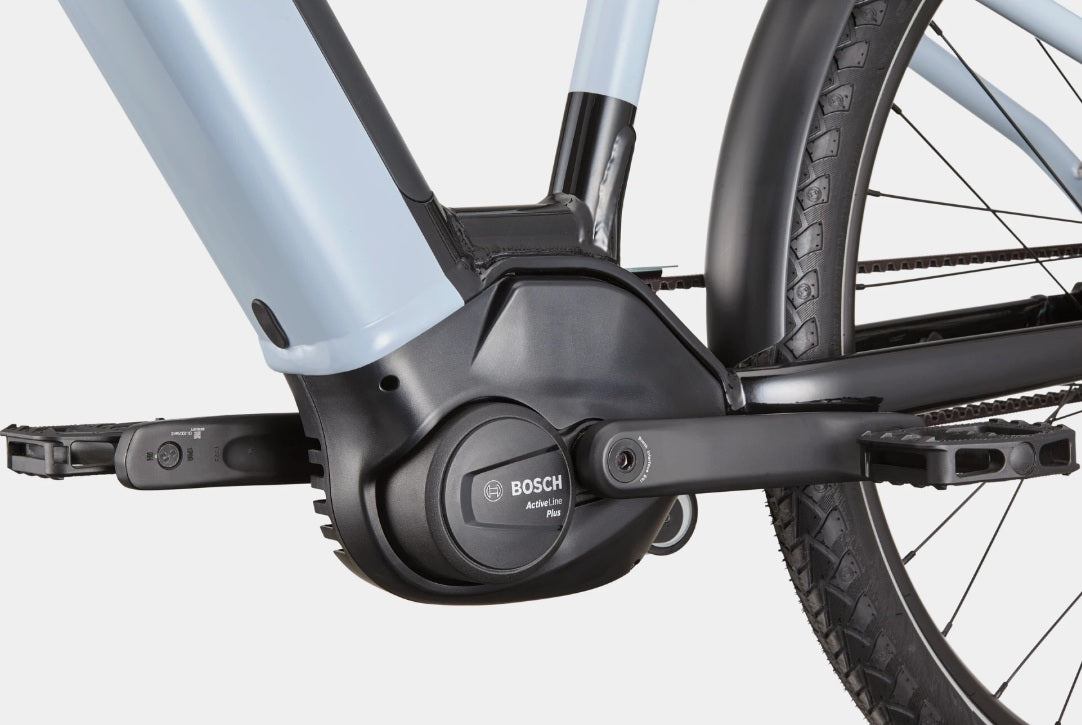

• Drive Unit - Bosch Active Line Plus, Smart System, 20mph
• Battery - Bosch PowerTube, 500Wh
• Charger - Bosch 4A
• Display - Bosch Purion 200
• Certifications - UL 2849

Drivetrain

• Rear Derailleur - Shimano Nexus 7, internal gear hub
• Shifters - Shimano Nexus, 7-speed, twist style
• Chain - Gates CDX Carbon Belt
• Crank - FSA for Bosch
• Rear Cogs - Gates CDC 26T

Brakes

• Brakes - Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors
• Brake Levers - Riderever Attack-U-OE, hydraulic disc

Wheels

• Rims - Alloy, double wall, 32 hole, 25mm internal width, disc-specific
• Spokes - Stainless Steel, 14g
• Tire Size - 29x2.3
• Wheel Size - 27.5/29
• Hubs - (Front) Shimano MT400B, 110x15mm thru-axle / (Rear) Shimano Nexus 7, 7-speed internal gear hub
• Tires - Continental eContact Plus w/ reflective sidewalls 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL)

Components

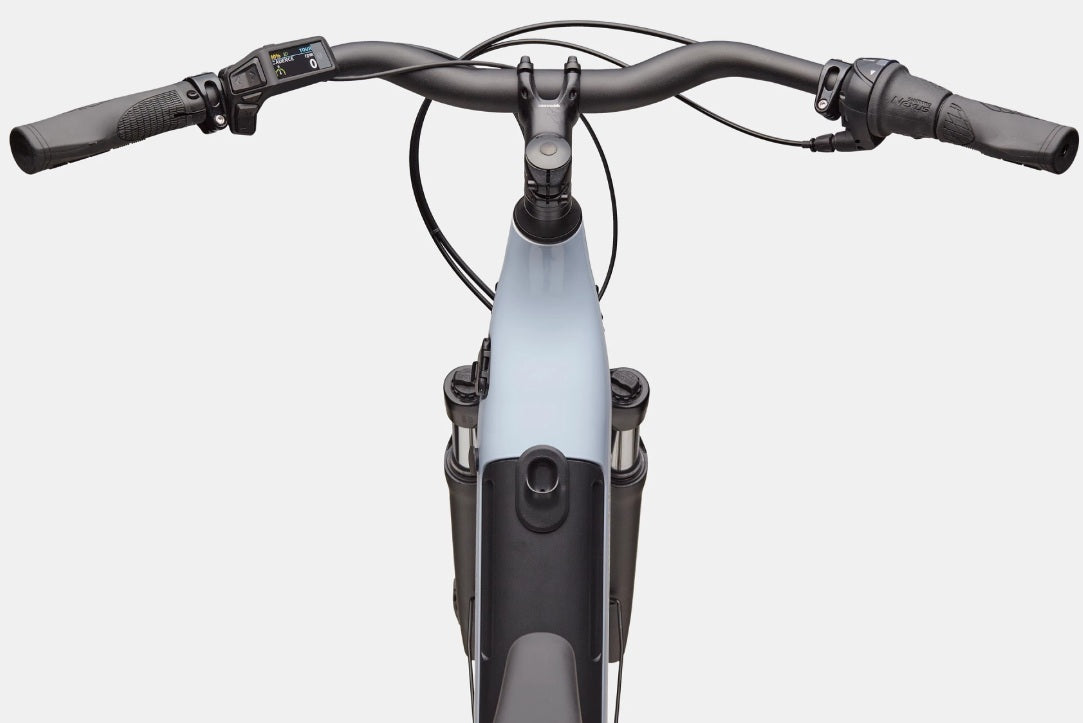

• Handlebar - Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm

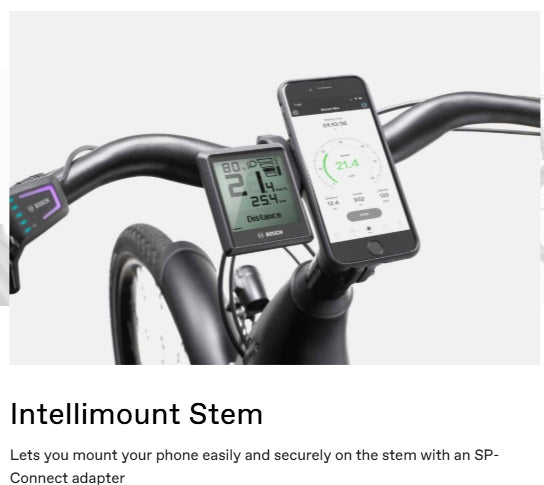

• Stem - Cannondale 3, Alloy, 31.8mm clamp
• Grips - Cannondale Ergo Fitness Dual Density, Lock-on
• Saddle - Fizik Essenza Moderate M
• Seatpost - Cannondale 3, 6061 Alloy, 31.6

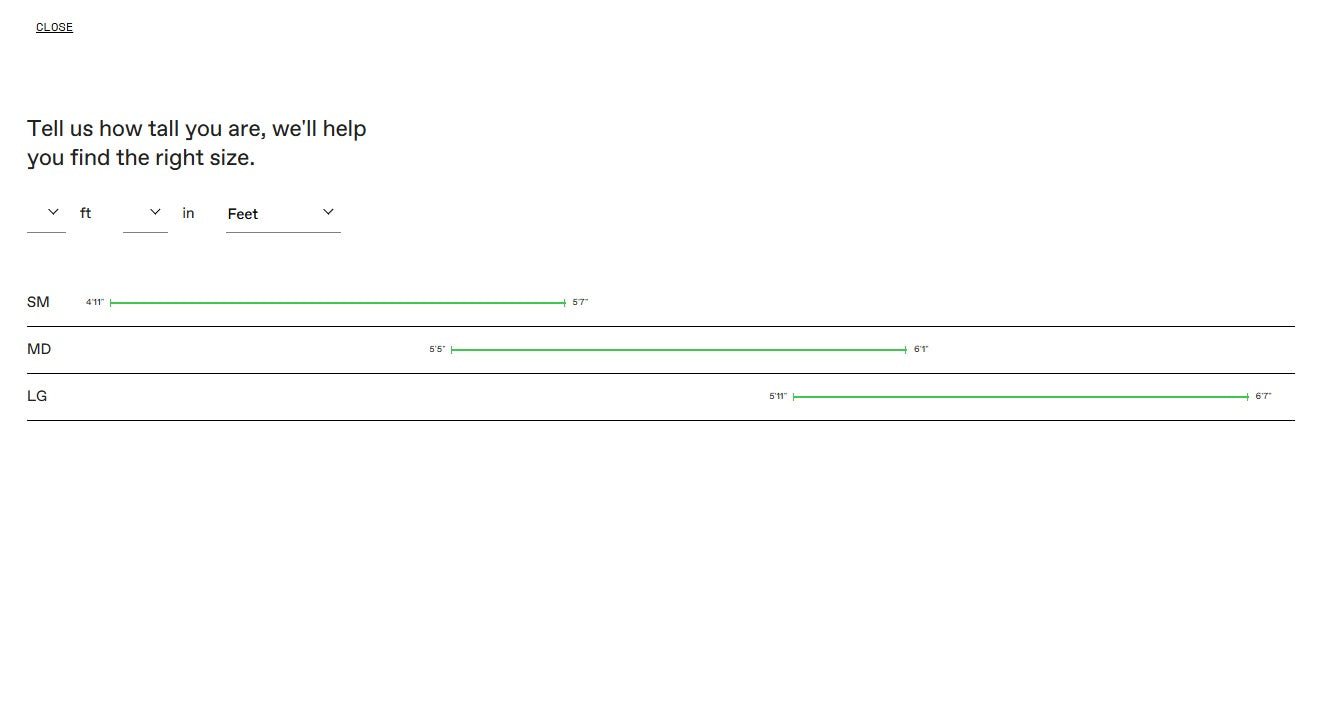

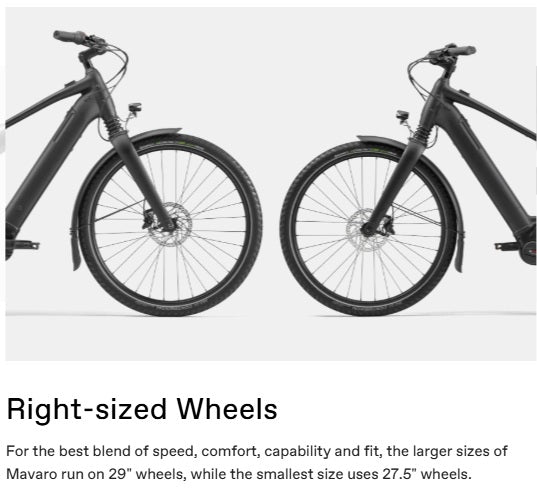

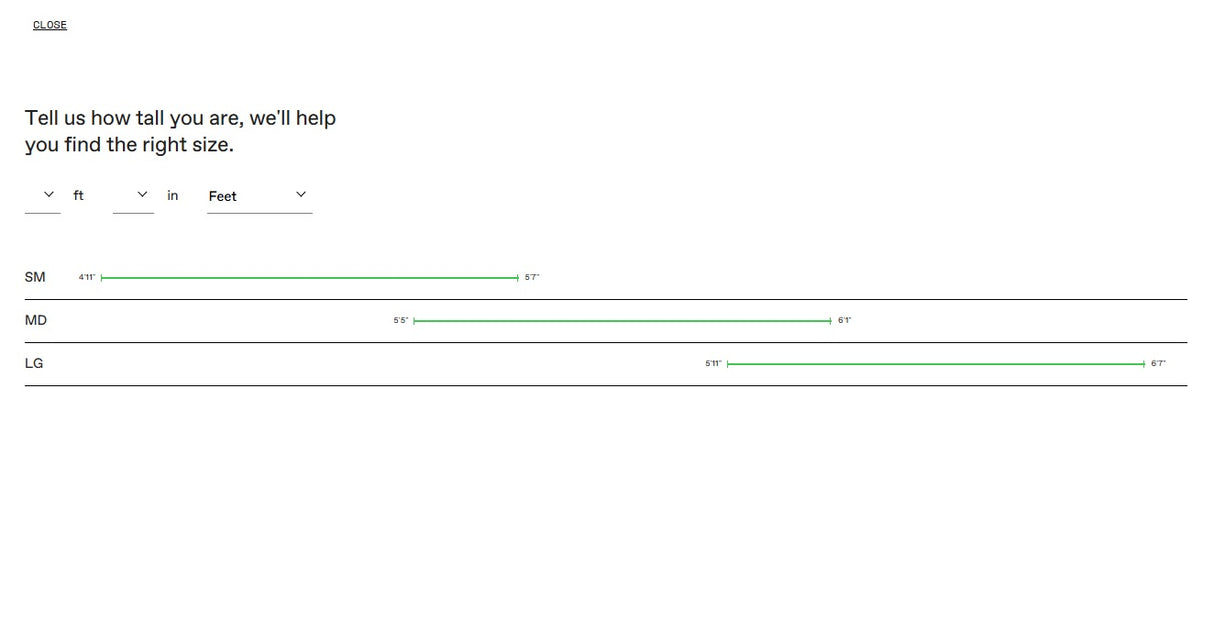

• Size Small (has 27.5" Wheels/Tires, Size Medium and Large have 29" Wheels/Tires)

Extra

• Extra 1 - Axa Compactline 35E front light, Axa Blueline rear light, Tubus rear rack (25kg, Racktime compatible), full-coverage fenders

*Specifications subject to change without notice

• Mack Cycle recommends having your bike assembled by your local, authorized Cannondale retailer, who will charge an assembly fee.
