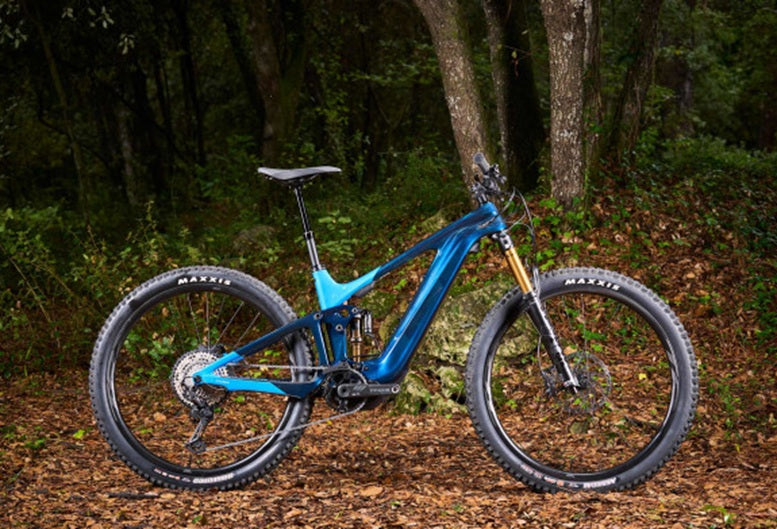

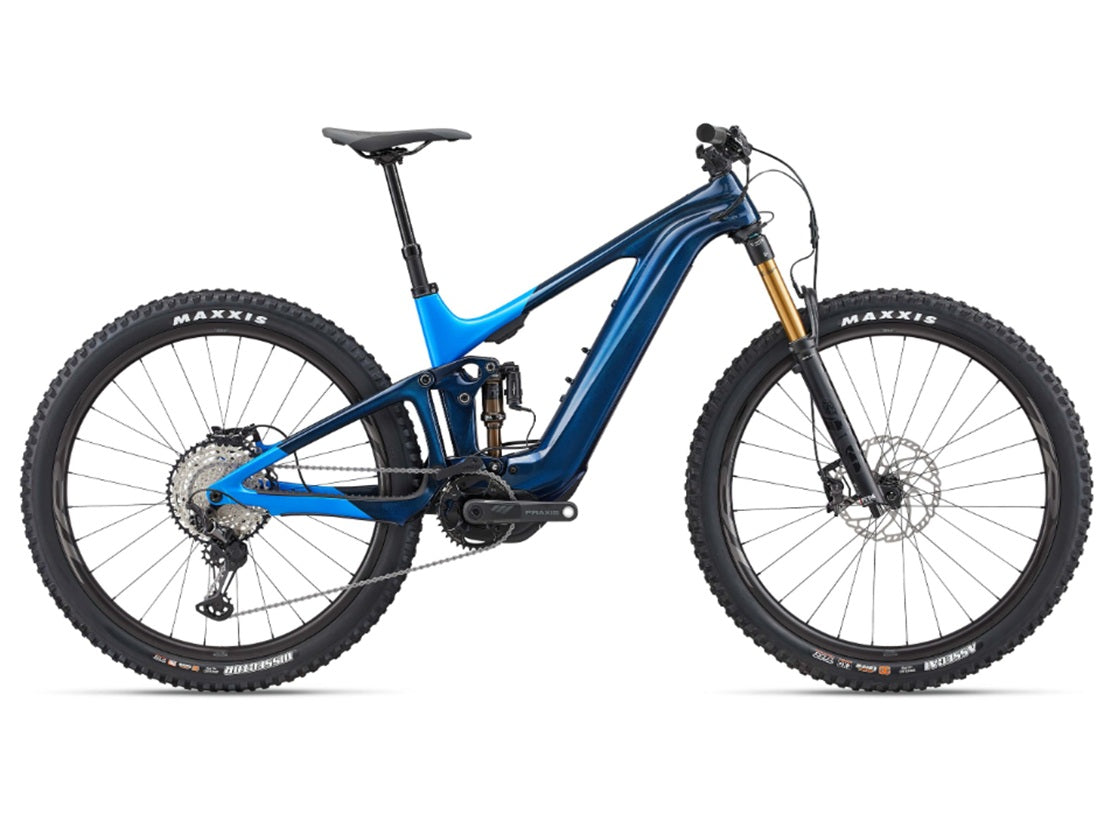

Giant Trance X Advanced E+ 0 Shimano Full Suspension Mountain E-Bike

The Giant Trance X Advanced E+ 0 Full Suspension Mountain E-Bike is a new breed of trail bike that blends power, performance and flat-out fun. With its lightweight composite frame, plush suspension and new motor technology, you’ll never want the ride to end!

Key Performance Factors

• Powerful and responsive - New SyncDrive Pro motor with 85Nm of torque creates powerful pedaling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.

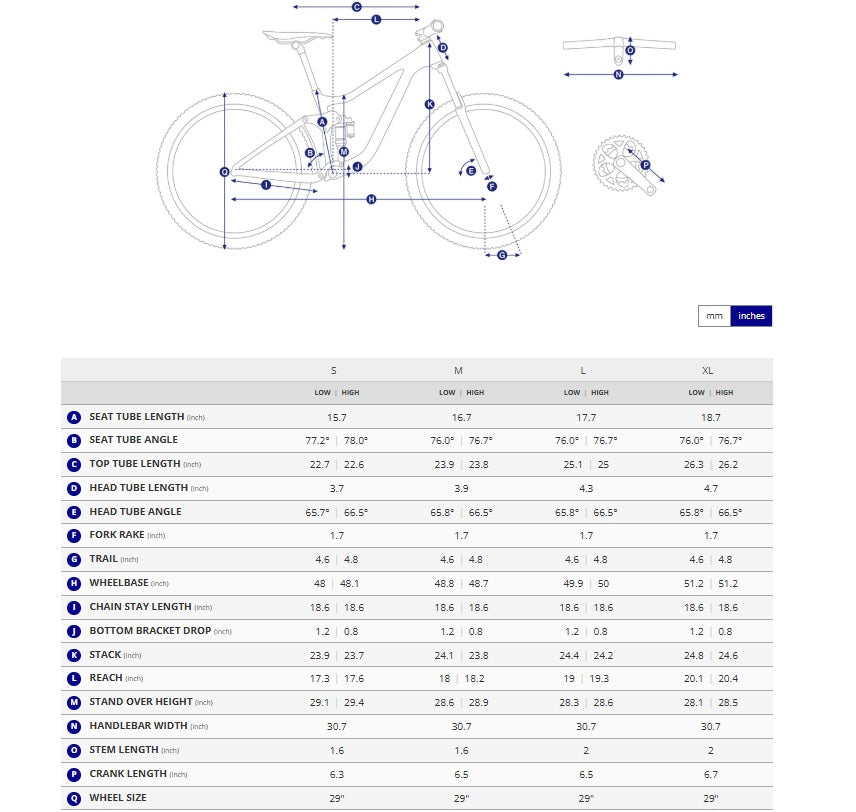

• Adaptable to the terrain - New flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

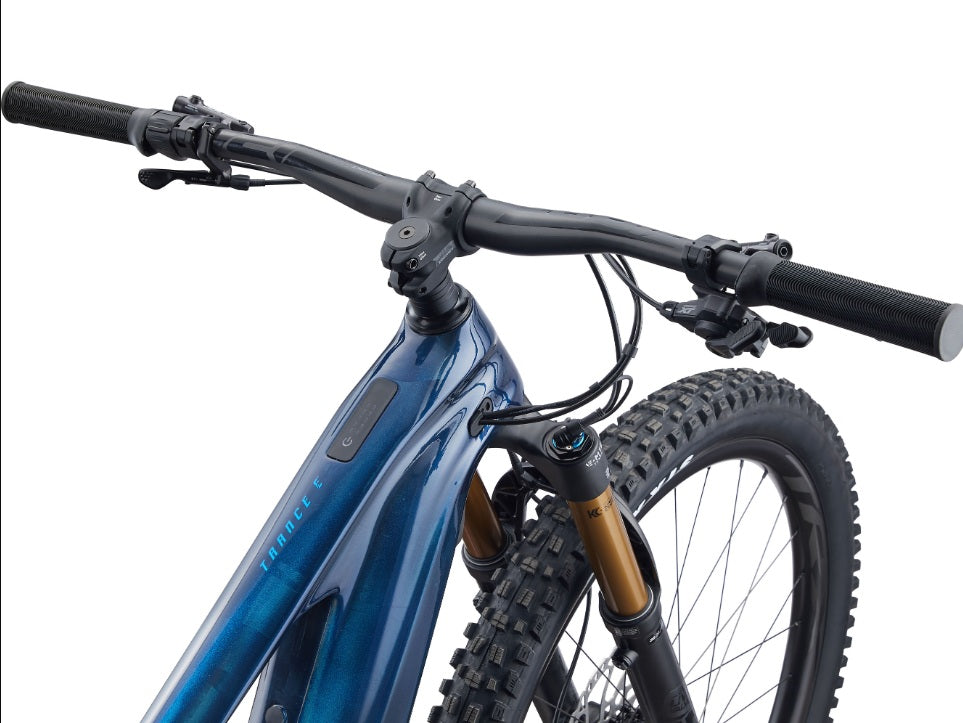

• Clean cockpit - The new RideControl Go top-tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.

Specifications

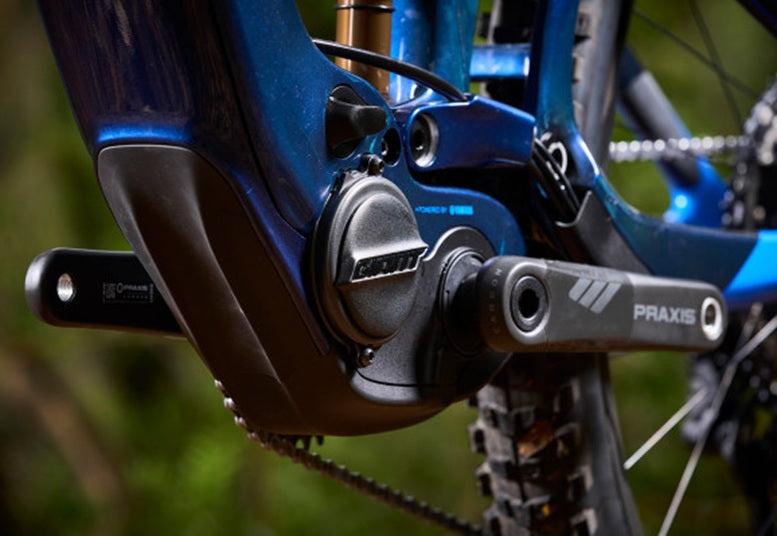

• Motor - SyncDrive Pro, 85Nm, powered by Yamaha, Class 1, Max Assist Speed: 20MPH

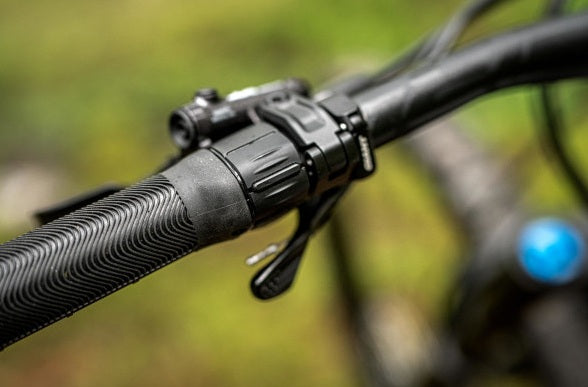

• Controller - RideControl Ergo 3, grip integrated
• Display - RideControl GO, frame integrated LED displayANT+ Wireless display compatible

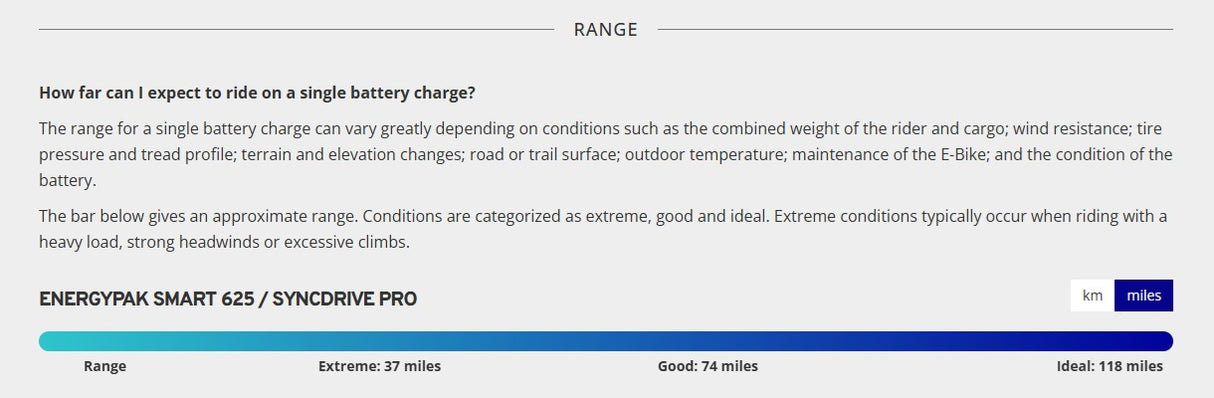

• Battery - EnergyPak Smart 625, EnergyPak Plus, 250Wh range extender compatible

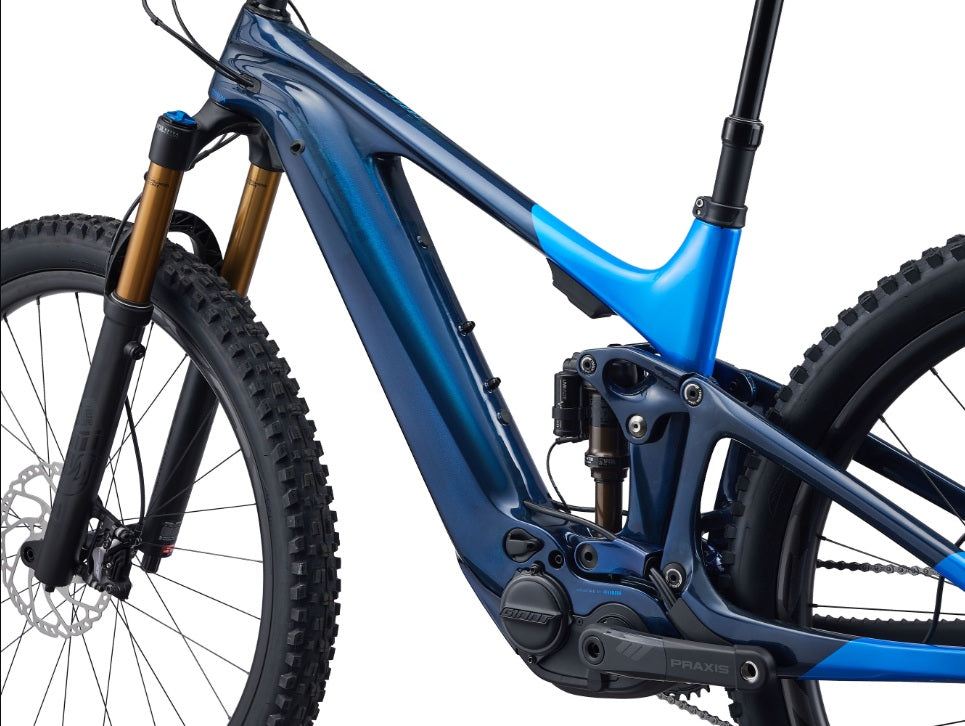

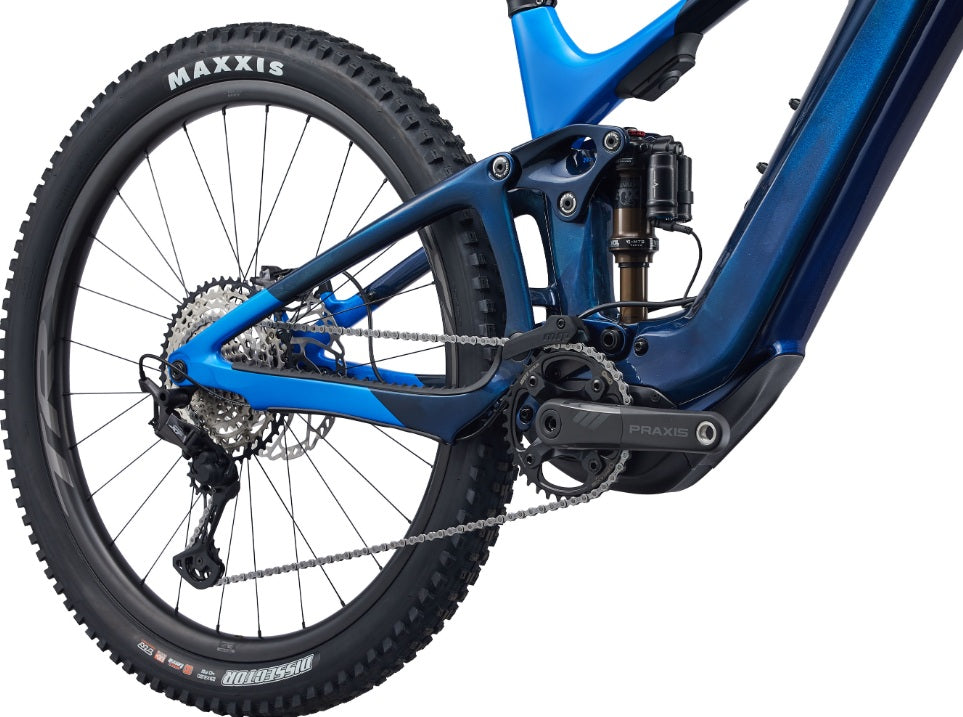

• Frame - Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system

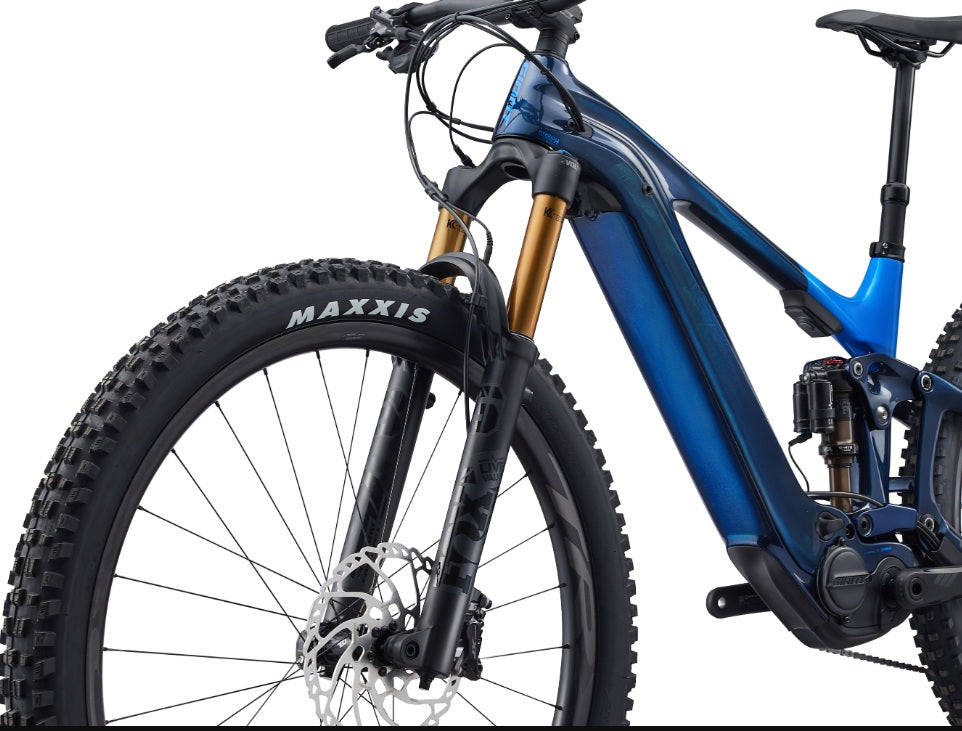

• Fork - Fox 36 Factory Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, e-bike integrated

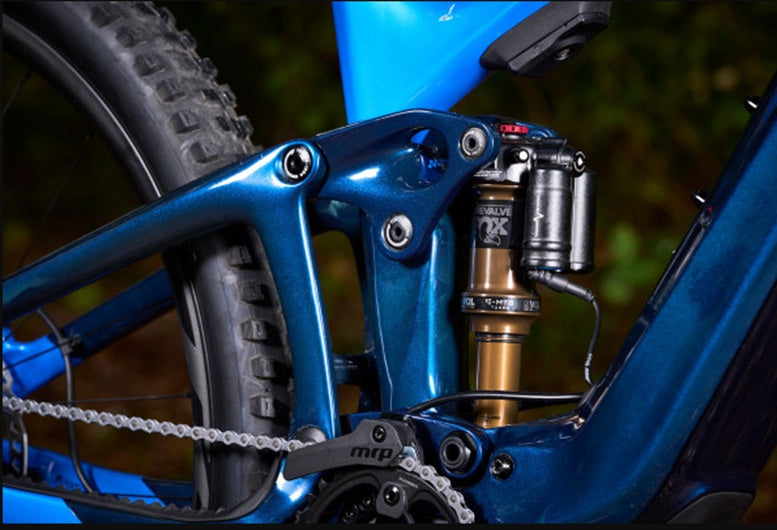

• Shock - Fox Float X Factory Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
• Handlebar - Giant Contact SLR 35 Carbon, 35x780mm
• Grips - Giant Tactal Pro-E, single lock-on
• Stem - Giant Contact SL 35
• Seatpost - Giant Contact Switch, dropper, 30,9mm (S:125, M:150, L/XL:170)
• Saddle - Giant Romero SL, Neutral
• Pedals - Flat pedal
• Shifters - Shimano Deore XT
• Front Derailleur - MRP HD2 co-moulded chain guide
• Rear Derailleur - Shimano Deore XT, 12-speed, Shadow+
• Brakes - Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm
• Brake Levers - Shimano Deore XT, BL-M8120
• Cassette - Shimano HG-M71000, 10-51T, 12-speed
• Chain - KMC e.12 Turbo, EcoProteq, e-bike optimized
• Crankset - Praxis Performance Carbon e-crank armsPraxis Wavetm 36T Cold Forged 4130 premium steel chain ring
• Rims - Giant e-TRX 29", Tubeless ready, 30mm inner width
• Hubs - Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle
• Spokes - Giant e-TRX
• Tires - Maxxis Assegai 29x2.6" foldable, Tubeless, EXO, 3c MaxxTerra- [Front], Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 120tpi 3C [Rear]


• Specifications subject to change without notice

• Mack Cycle recommends having your bike assembled by your local, authorized Giant retailer, who will charge an assembly fee.
