Cannondale Synapse Neo Allroad 1 Gravel E-Bike

Highlights

• Lightweight carbon-fiber construction and proven endurance race geometry.
• Rugged wheels with Vittoria 700x40c gravel endurance tires deliver confidence and grip, on pavement or off.
• Bosch Performance Line Sprint motor offers an ideal combination of low weight and smooth power, delivering up to 55 Nm of torque and 600 watts of assist all the way to 28 mph.
• Integrated 400Wh battery offers serious range for long rides, and keeps the weight low for a lively ride-feel.
• SRAM’s wireless, electronic Force AXS XLPR 12-speed drivetrain delivers wide-range gearing, effortless shifting, and the reliable simplicity of a single chainring set-up.
• Flared drop-bars with a Conceal internal-routing stem deliver comfort and control over all kinds of road surfaces.

• Rock Steady - Synapse Neo Allroad keeps things reliable, so you can keep the ride rolling. The quiet Bosch Performance Line Sprint drive unit is neatly integrated into the carbon frame, and premium componentry like our Conceal Stem, a flared-drop handlebar, and wireless electronic shifting keep things clean, comfortable, and simple.

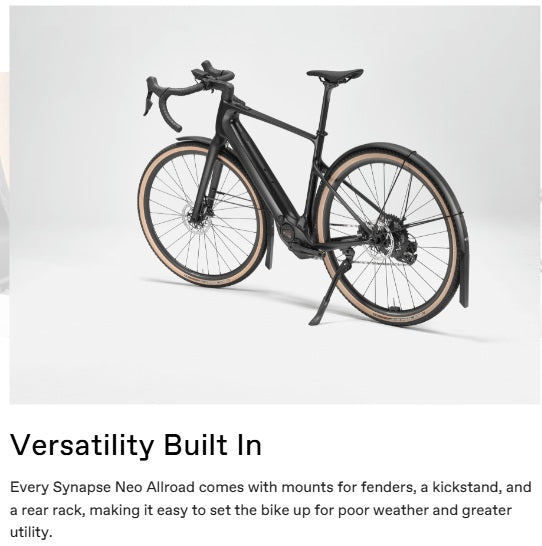

• Ready for Epic - Whether you’re planning for a bike-packing trip, an epic day out, or just some foul weather, Synapse Neo Allroad comes with multiple mounts for fenders, a rear rack, and even a kickstand
• Your Comfort Zone - The carbon fiber frameset features special areas designed to allow small amounts of flex for bump and vibration absorption, creating a super comfortable ride. The riding position is perfectly balanced, too: upright enough for comfort and control in the rough, but still low enough for poise and efficiency at speed.

Specifications

• Platform - Synapse Neo Allroad
• Model Name - Synapse Neo Allroad 1
• Model Code - C67124U

Frameset

• Frame - Synapse Neo Carbon, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, kickstand compatible (K17004 mounting bracket & K17014 kickstand required)
• Fork - Synapse Neo Carbon, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle
• Headset - Integrated, 1-1/8" - 1.5"

E-System

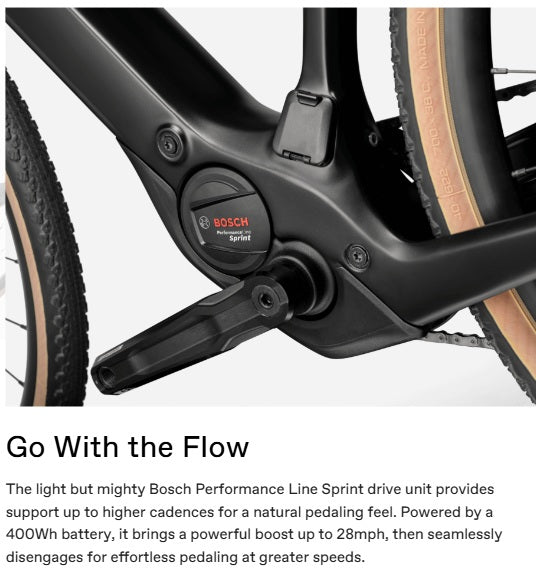

• Drive Unit - Bosch Performance Line Sprint, 28mph
• Battery - Bosch Compact Powertube 400Wh
• Charger - Bosch 2A
• Display - Bosch Kiox 300
• Certifications - UL 2849

Drivetrain

• Rear Derailleur - SRAM Force AXS XPLR
• Shifters - SRAM Force eTap AXS HRD, 12-speed
• Chain - SRAM NX Eagle, 12-speed
• Crank - FSA Bosch E-Bike, SRAM Direct Mount, 38T
• Rear Cogs - SRAM XG-1271 XPLR, 10-44, 12-speed

Brakes

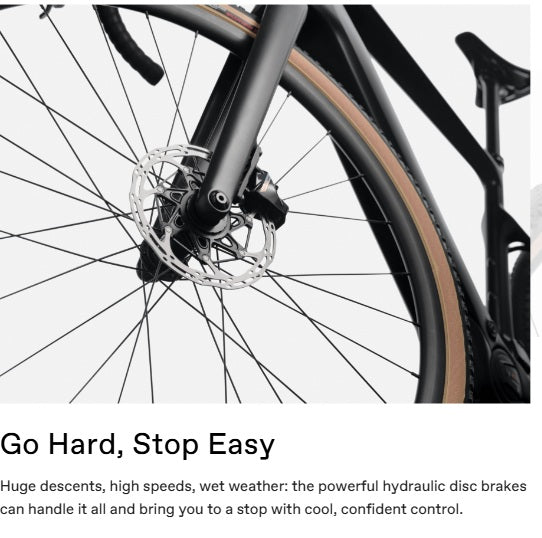

• Brakes - SRAM Force AXS, 160/160mm CenterLine X rotors
• Brake Levers - SRAM Force eTap AXS

Wheels

• Rims - Cannondale GXD10, alloy double-wall rim, 28h
• Spokes - Stainless Steel, 14g
• Tire Size - 40
• Wheel Size - 700
• Hubs - (F) Formula sealed cartridge bearing, 12x110mm thru-axle / (R) Formula sealed cartridge bearing 12x148mm thru-axle
• Tires - Vittoria Terreno Dry, 700x40c, tubeless ready

Components

• Handlebar - Butted 6061 alloy, 20 deg flare drop
• Stem - Cannondale C1 Conceal, Alloy, 31.8, -6°
• Grips - Fabric Knurl tape 3mm
• Saddle - Fizik Terra Argo X5, 150mm width, S-alloy rails
• Seatpost - Cannondale 2, UD Carbon, 27.2x350mm (XS-S), 400mm (M-XL)

*Specifications subject to change without notice

• Mack Cycle recommends having your bike assembled by your local, authorized Cannondale retailer, who will charge an assembly fee.
