Pinarello DOGMA F Carbon SRAM Red AXS 12 Speed Road Bike - Princeton Wheelworks 4550

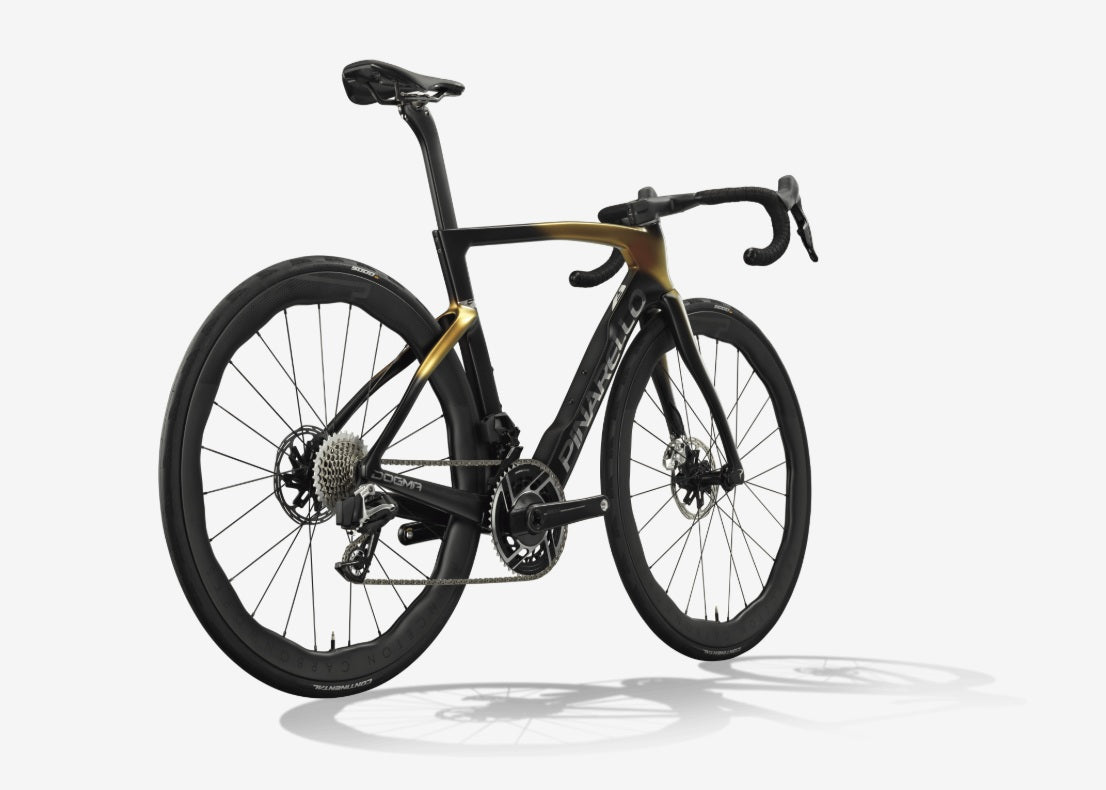

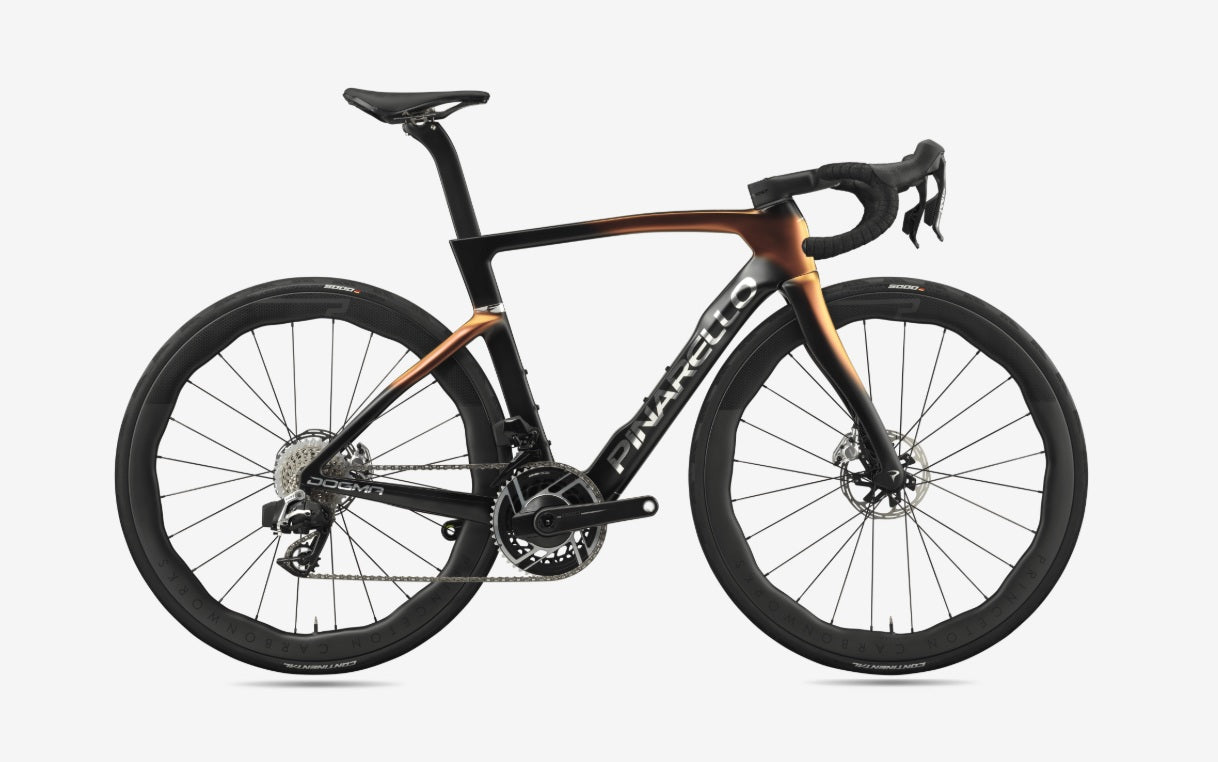

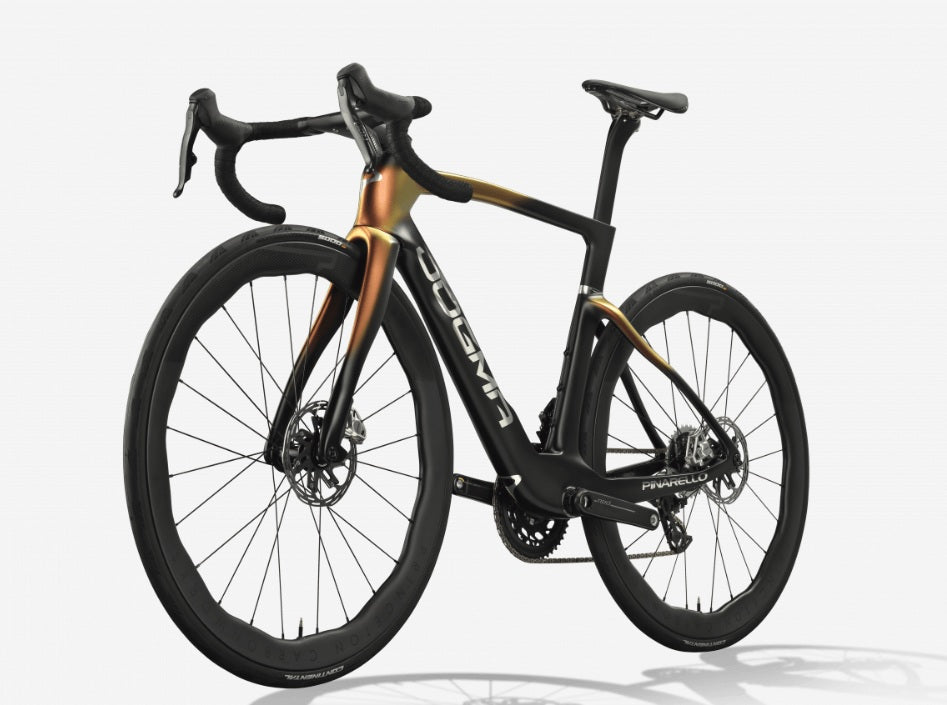

Pinarello has always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between their head designers and Pinarello believes the Pinarello DOGMA F Carbon Road Bike with SRAM Red AXS 12 speed components and Princeton Wheelworks Peak 4550 wheels achieves the perfect blend of the two.

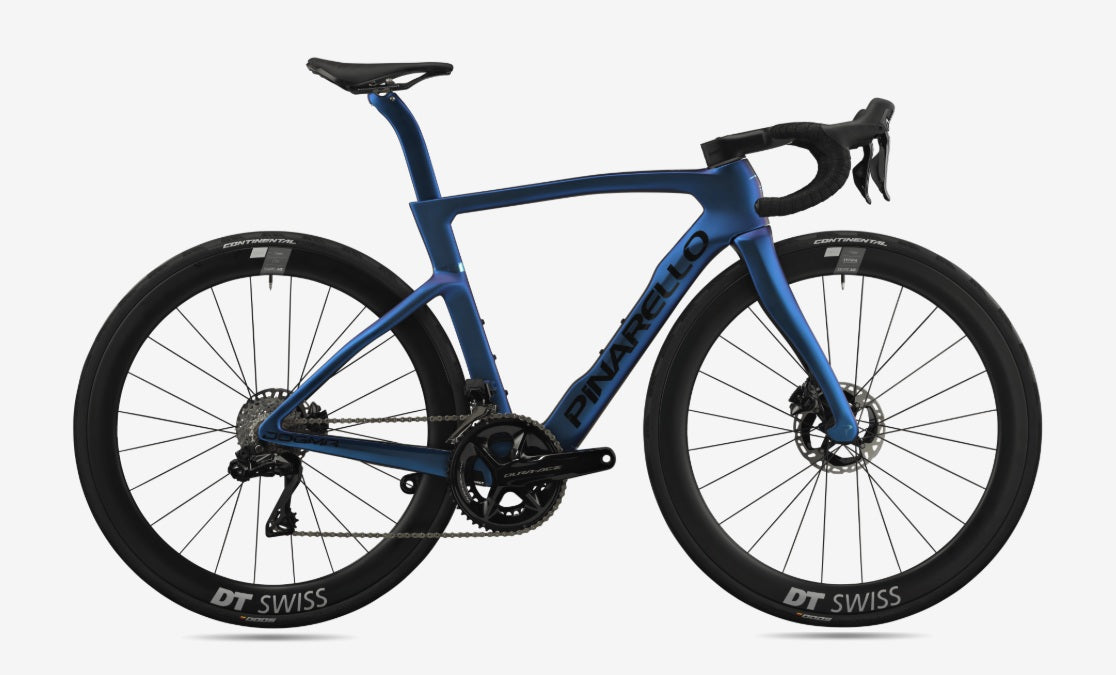

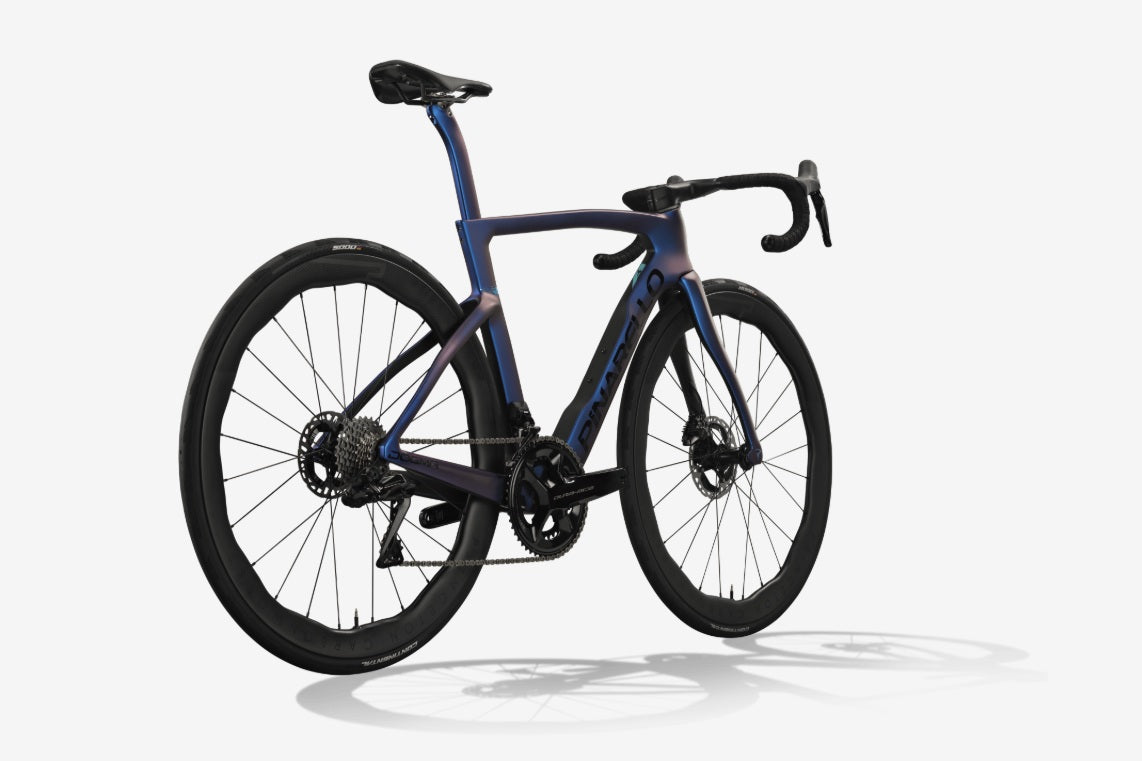

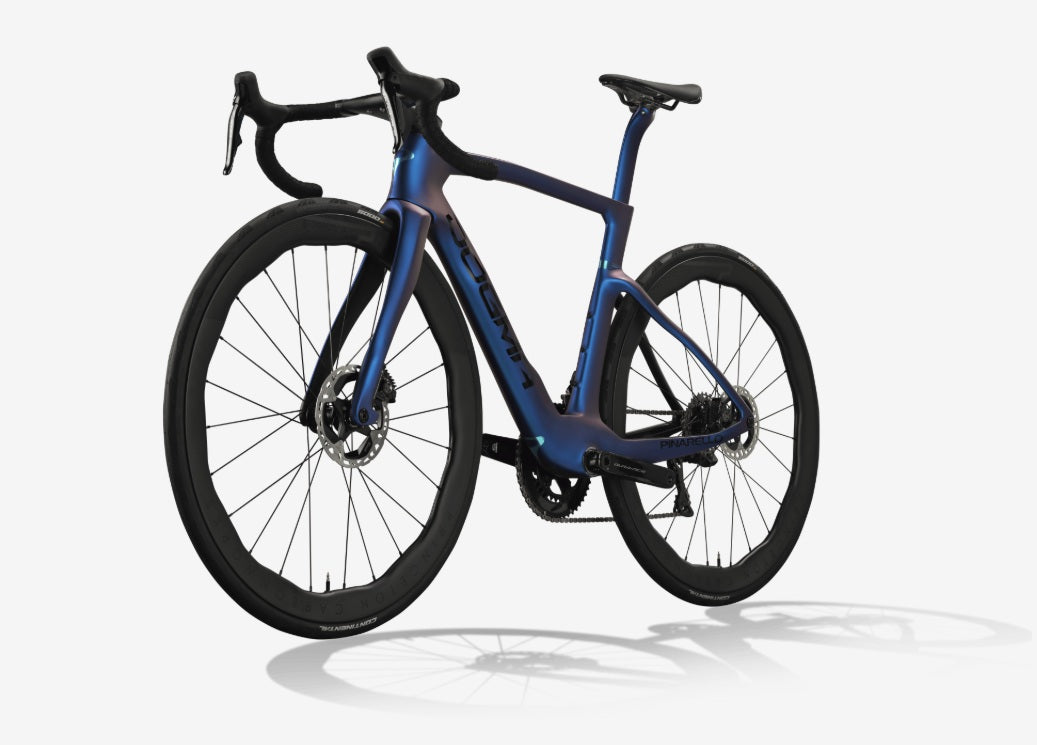

• Wheels shown on the Pinarello Dogma F in Luxter Blue are DT Swiss wheels and components are Shimano Di2 but this bike in Luxter Blue does come with the Princeton Wheelworks Peak 4550 wheels and SRAM Red AXS 12 Speed components.

• Carbon M40X - The Pinarello DOGMA F Carbon Disc Road Bike evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.
• Down Tube - The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag
• New Aero-Keel BB - Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.
• Top Tube - Pinarello's unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.
• Headset - To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.
• Thru Axles - New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame
• New Onda Fork - The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.
• Integrated Seat Post Clamp - Pinarello's seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.
• New Talon Fast - The new Talon Ultra Fast integrated cockpit is lighter and more aero. It is designed with a natural twisted lever position to allow our riders to find a more aero position in a safe manner.

Specifications

• Frame - TorayCa M40X, TiCR™ Cable Routing, Italian BB
• Fork - NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
• Weight - 6.63kg. Weight in size 53, SRAM RED Etap, Princeton Peak 4550 wheels, w/o pedals and w/o bottles

Drivetrain

• Crankset and Chainrings - SRAM Red ETAP AXS 12S
• Cassette - Sram Red XG-1290
• Front Derailleur - SRAM Red ETAP AXS 12S
• Bottom Bracket - SRAM Red
• Rear Derailleur - SRAM Red ETAP AXS 12S

Brakes

• Front Disc Brakes - SRAM Red 2 pistons, 160mm rotor
• Rear Disc  Brakes - SRAM Red 2 pistons, 160mm rotor

Cockpit

• Integrated Handlebar - MOST Talon Ultra Fast
• Seatpost - Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
• Bar Tape - Most Bar Tape
• Saddle - Most Lynx Ultrafast Superflow L Carbon Large 145mm

Wheels and Tires

• Tires - Continental GP 5000S - 700x28
• Wheelset - Princeton Peak 4550 DB (disc brake)
• Axles - NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
• Wheels shown on the Pinarello Dogma F in Luxter Blue are DT Swiss wheels and components are Shimano Di2 but this bike in Luxter Blue does come with the Princeton Wheelworks Peak 4550 wheels and SRAM Red AXS 12 Speed components

**Specifications subject to change without notice

• Mack Cycle recommends to bring this bike to your authorized bike mechanic to complete assembly.  Your local mechanic will charge an assembly fee that would be payable to your mechanic.
