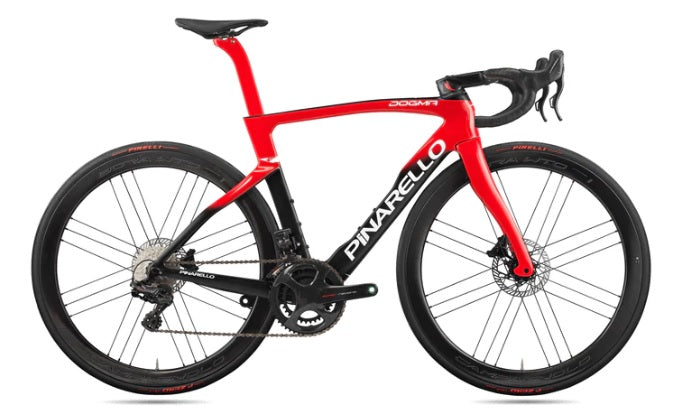

Pinarello Dogma F Disc Super Record Fulcrum Speed Lite 40 Road Bike

Seamlessly linking a sophisticated design, state-of-the-art materials and indisputable style via Pinarello’s vast Grand Tour winning experience, the Pinarello Dogma F Disc road bike is a truly versatile performer. With composed handling, spritely responsiveness under power, comfort and wind-cheating aerodynamics, the Dogma F is the perfect choice for riding up and down challenging mountain passes, soloing away from the peloton or rapidly charging towards the finish line in a bunch gallop.

Realized in ultra high-quality TorayCa T1100 1K carbon with Nanoalloy Technology, the frame is 9% lighter and 12% stiffer than the previous iteration, the Dogma F12, to offer even more reactivity when tackling stiff gradients or punching away from café ride peers. The Onda fork complements the frame perfectly thanks to it also shaving weight. Despite its weight loss, the fork remains as strong as ever and enlists its unique shape to grant extra steering precision, increased stability and enhanced vibration damping.

The Dogma F frameset has been aerodynamically optimized to slash its wind resistance by 4.8%. The key refinement in this regard is the new Flatback tube profiles that have aggressively truncated shapes to markedly lower drag and improve crosswind stability. Additional aero tweaks include the TiCR hidden cable routing, a slender seatpost and innovative tabs on the fork legs.

Technical Specifications

• Frame: Pinarello Dogma F TorayCa T1100 1K Dream Carbon with Nanoalloy Technology, TiCR™ Cable Routing, Italian threaded bottom bracket, UCI approved, 142mm x 12mm thru-axle
• Fork: Pinarello Dogma F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, 100 x 12mm thru-axle
• Headset: Pinarello with ultra light bearings
• Bottom Bracket: SRAM RED, DUB, Italian threaded
• Integrated Handlebar/Stem: MOST Talon Ultra Fast
• Bar Tape: MOST ULTRAGRIP evo 3mm, Black
• Front Brake: Campagnolo Super Record two piston caliper, hydraulic, with 160mm disc rotor
• Rear Brake: Campagnolo Super Record two piston caliper, hydraulic, with 160mm disc rotor
• Brake Levers: Campagnolo Super Record, hydraulic
• Front Derailleur: Campagnolo Super Record EPS 12-speed, with stiffness increaser
• Rear Derailleur: Campagnolo Super Record EPS, 12-speed
• Shift Levers: Campagnolo Super Record EPS, 2 x 12-speed
• Chain: Campagnolo Record, 12-speed
• Cassette: Campagnolo Super Record, 12-speed
• Crankset: Campagnolo Super Record EPS 12-speed
• Front Wheel: FULCRUM SPEED Lite C40, 40mm deep full carbon rim, 700c, disc brake, tubeless-ready
• Rear Wheel: FULCRUM SPEED Lite C40, 40mm deep full carbon rim, 700c, disc brake, tubeless-ready
• Front Tire: Pirelli P ZERO Race, 700x26
• Rear Tire: Pirelli P ZERO Race, 700x26
• Saddle: MOST Linx Ultrafast Superflow L Carbon, Large 145mm width
• Seatpost: Pinarello Aero Seatpost with 3D printed titanium top seat clamp, titanium bolts

*Specifications subject to change without notice

• Mack Cycle highly recommends to have the final assembly (of the handlebars, front wheel, and saddle/seatpost) performed by your local, authorized Pinarello retailer.
• Your local, authorized Pinarello retailer will charge their own assembly fee to complete this assembly.
