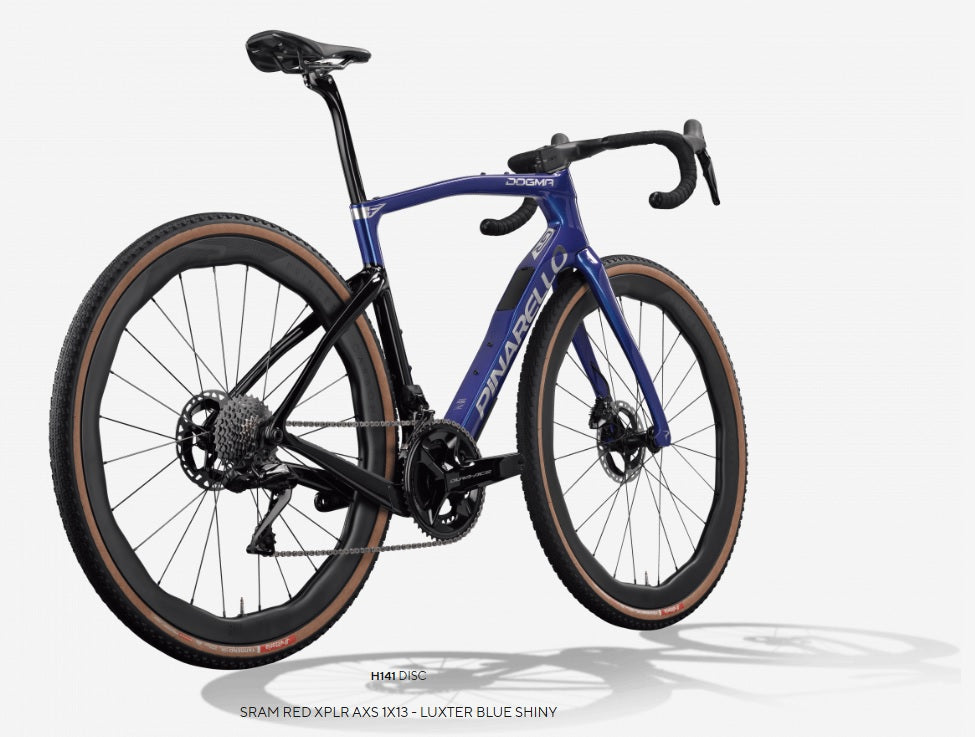

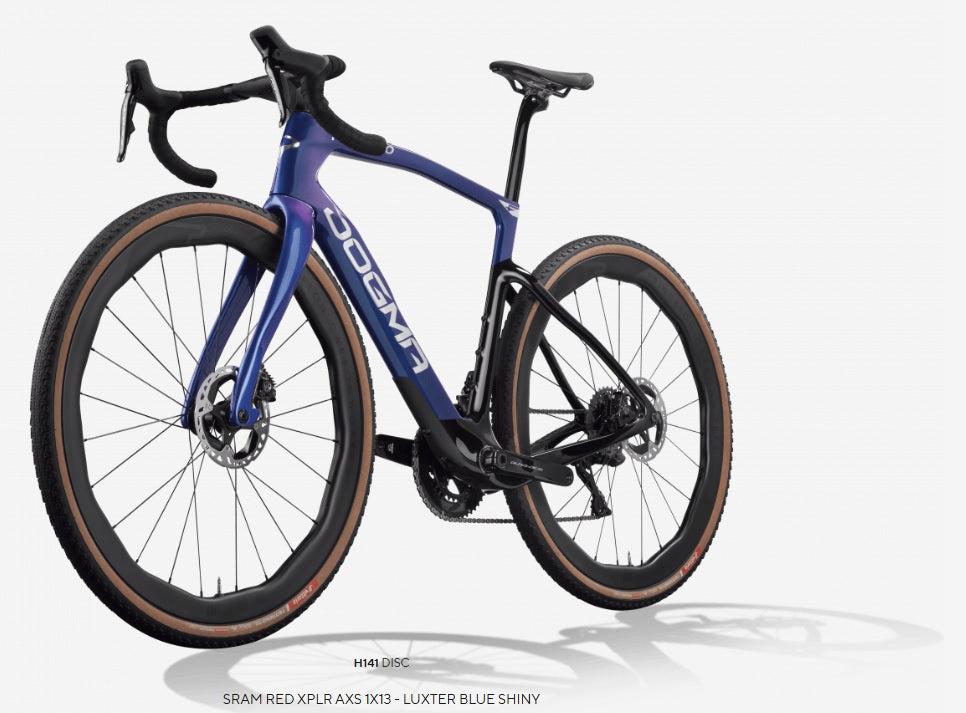

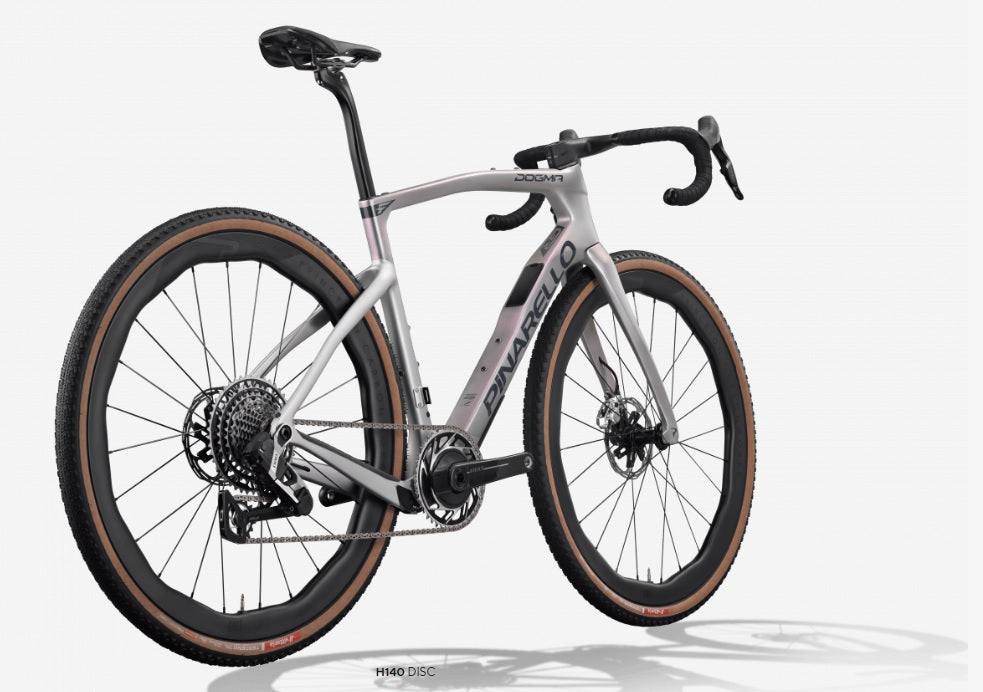

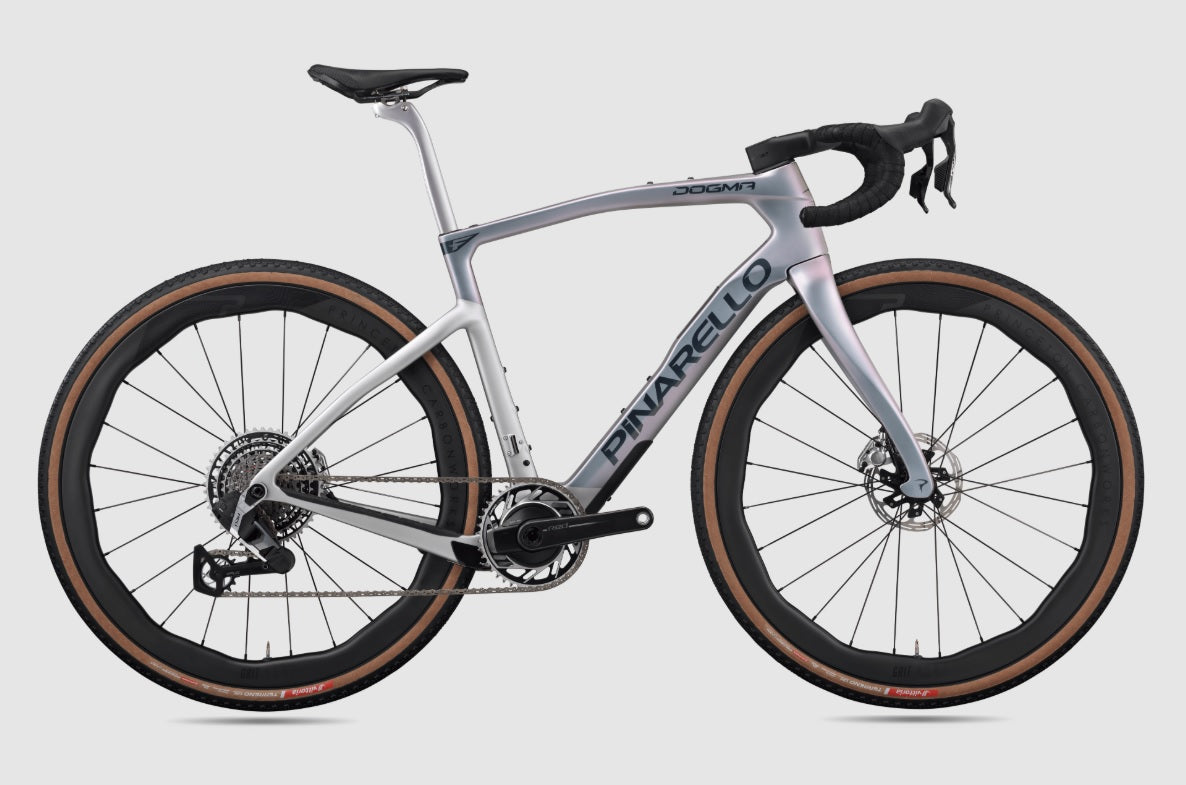

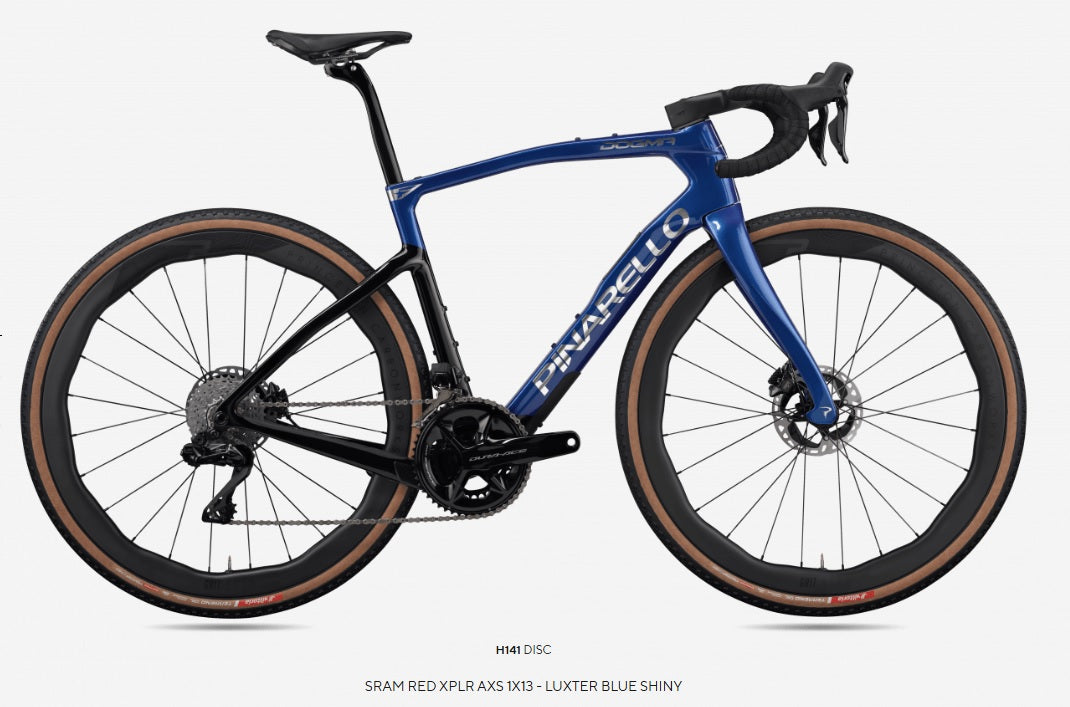

Pinarello Dogma GR SRAM RED XPLR AXS 13 Speed Carbon Gravel Bike

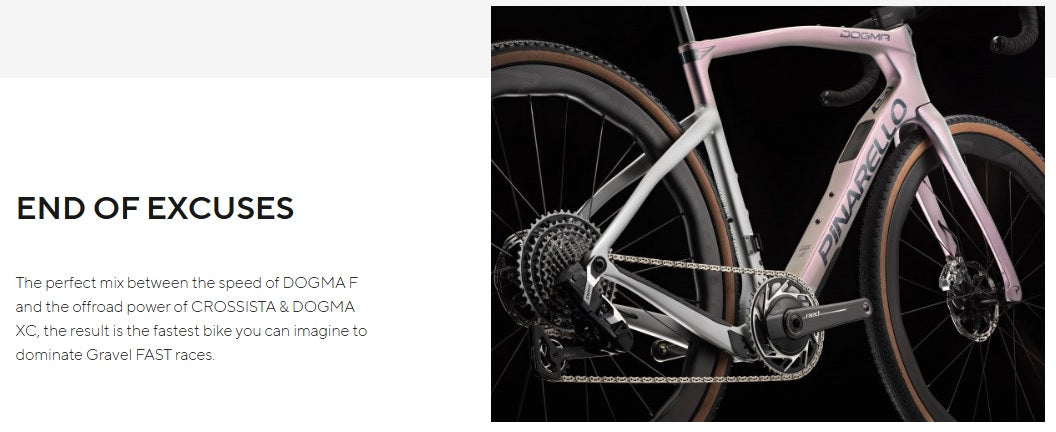

The Pinarello Dogma GR SRAM RED XPLR AXS 13 Speed Carbon Gravel Bike is the perfect mix between the speed of DOGMA F and the offroad power of CROSSISTA & DOGMA XC.   The result is the fastest bike you can imagine to dominate Gravel FAST races.  Ride like a demon on your new Pinarello Dogma GR Carbon Gravel Bike!

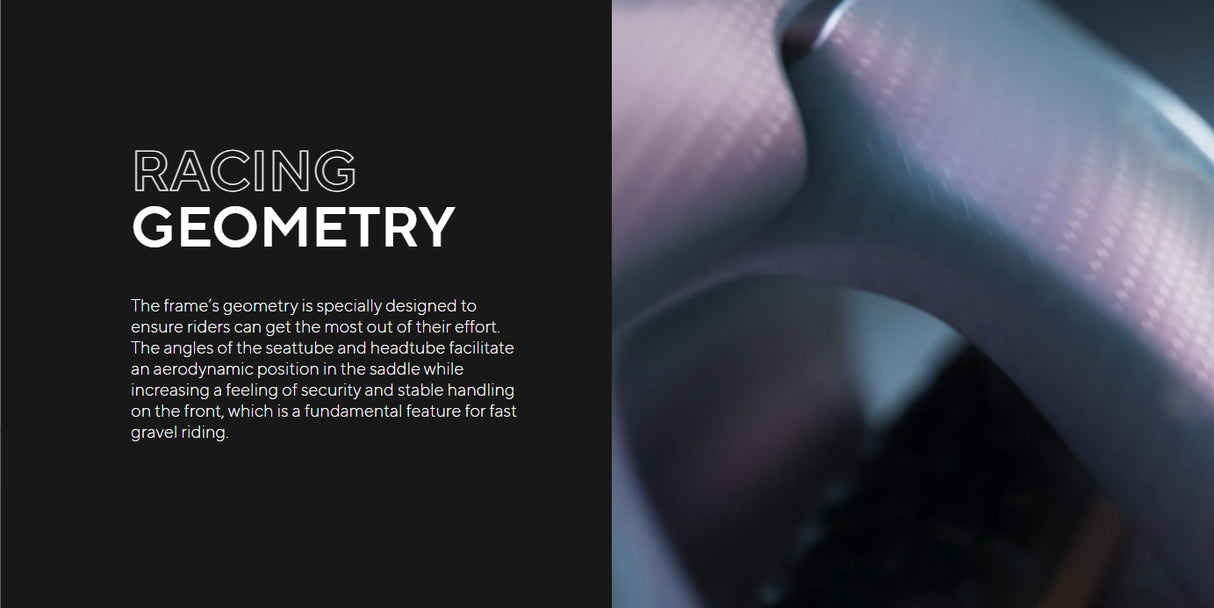

• Racing Geometry - The frame’s geometry is specially designed to ensure riders can get the most out of their effort. The angles of the seattube and headtube facilitate an aerodynamic position in the saddle while increasing a feeling of security and stable handling on the front, which is a fundamental feature for fast gravel riding.

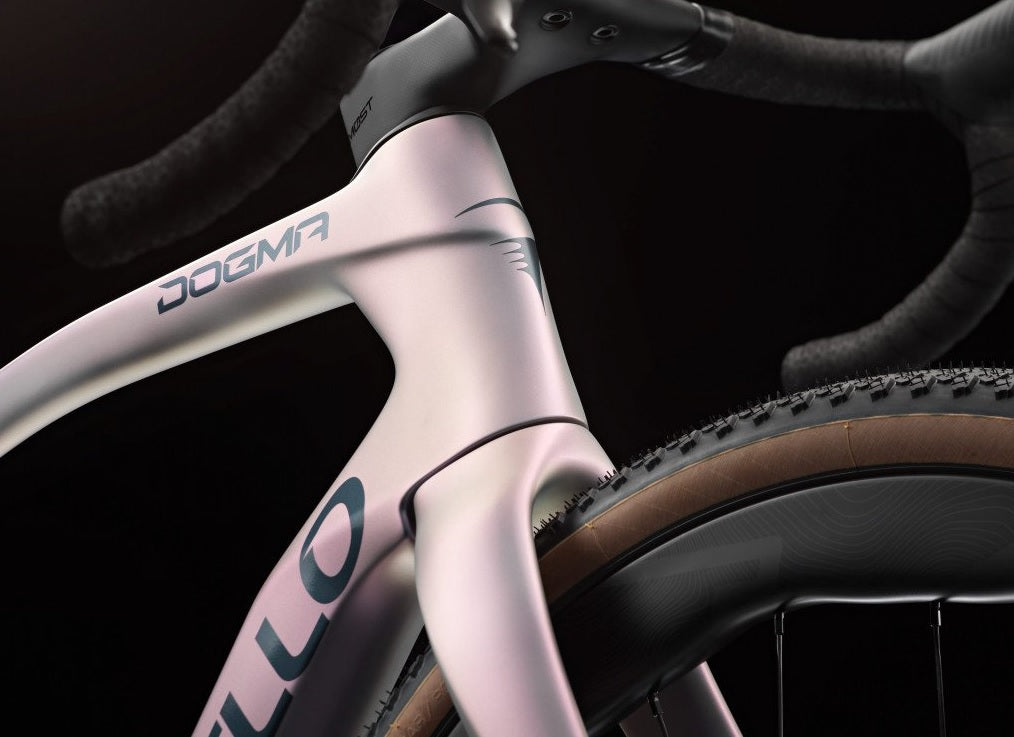

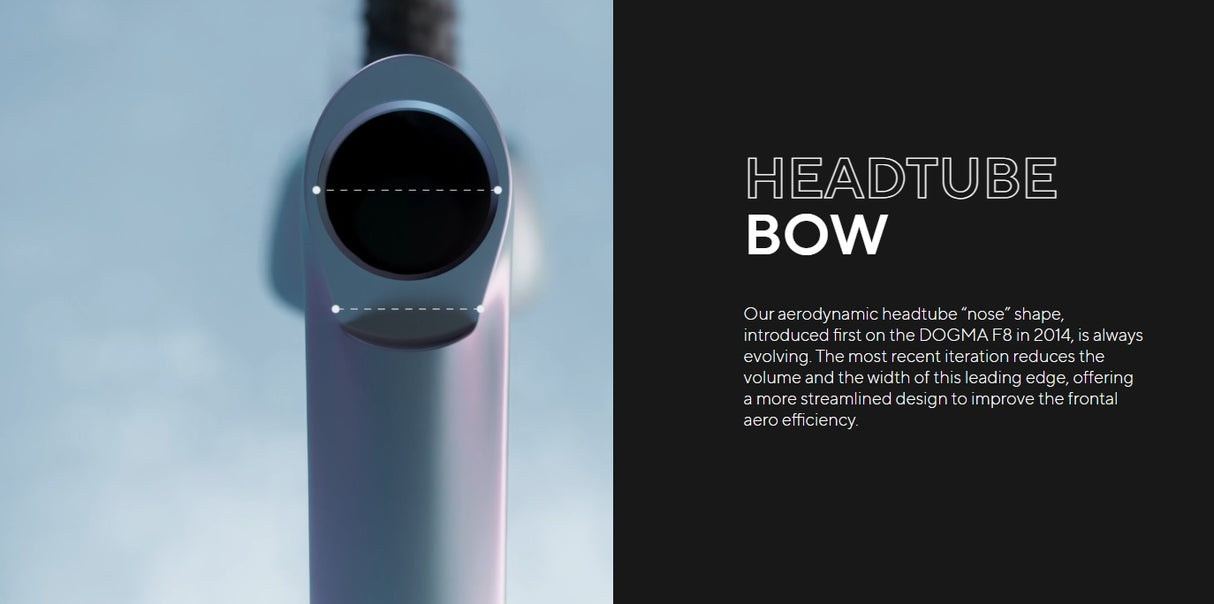

• Headtube Bow - Pinarello's aerodynamic headtube “nose” shape, introduced first on the DOGMA F8 in 2014, is always evolving. The most recent iteration reduces the volume and the width of this leading edge, offering a more streamlined design to improve the frontal aero efficiency.

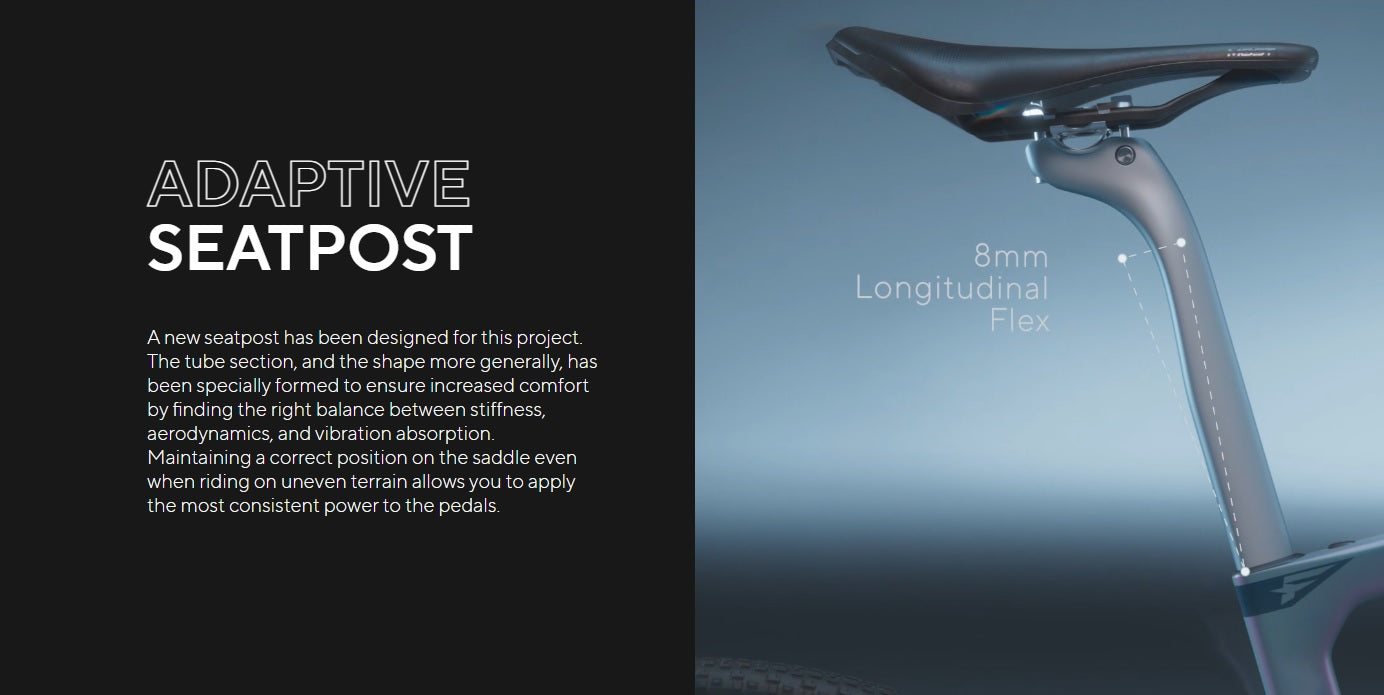

• Adaptive Seatpost - A new seatpost has been designed for this project. The tube section, and the shape more generally, has been specially formed to ensure increased comfort by finding the right balance between stiffness, aerodynamics, and vibration absorption. Maintaining a correct position on the saddle even when riding on uneven terrain allows you to apply the most consistent power to the pedals.

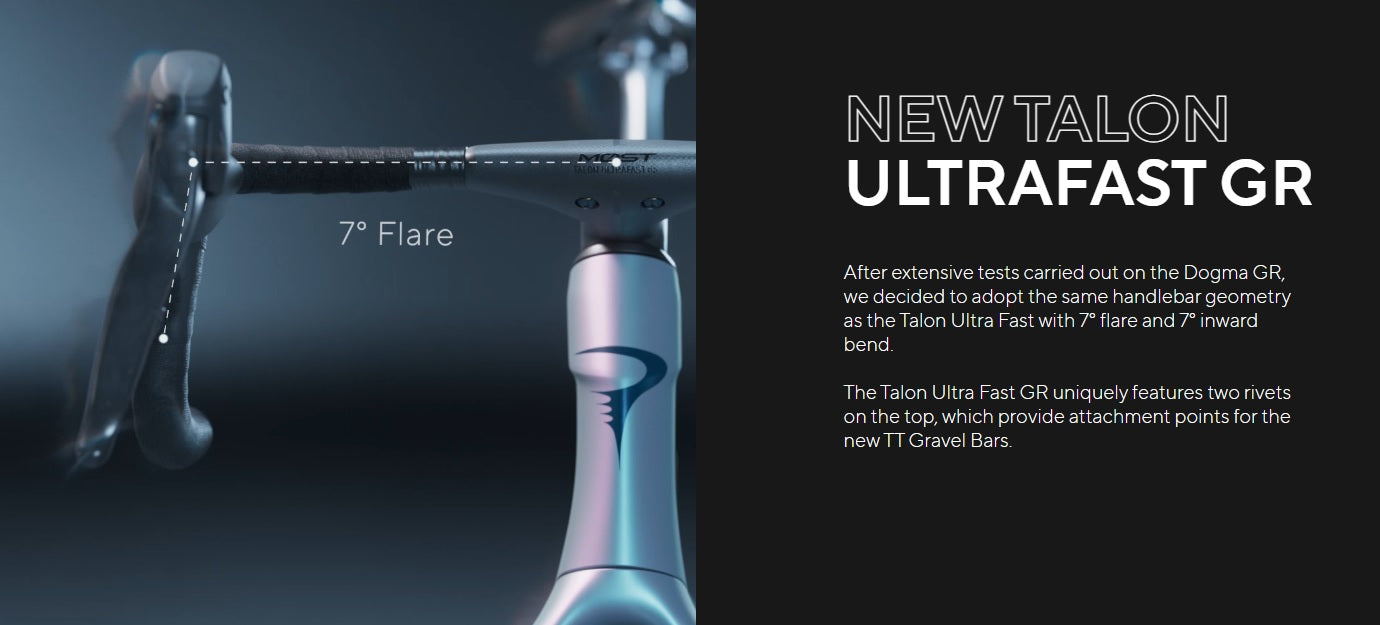

• New Talon UltraFast GR - After extensive tests carried out on the Dogma GR, Pinarello decided to adopt the same handlebar geometry as the Talon Ultra Fast with 7° flare and 7° inward bend. The Talon Ultra Fast GR uniquely features two rivets on the top, which provide attachment points for the new TT Gravel Bars.

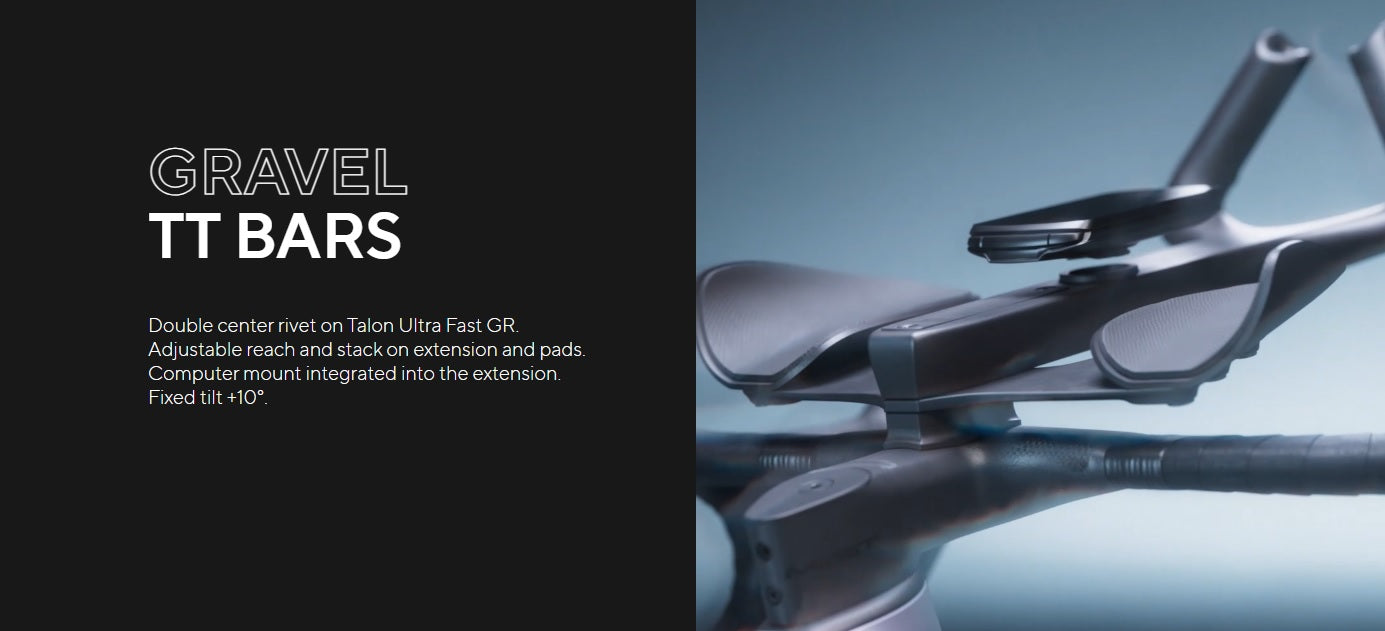

• Gravel TT Bars - Double center rivet on Talon Ultra Fast GR.  Adjustable reach and stack on extension and pads.  Computer mount integrated into the extension.  Fixed tilt +10°.

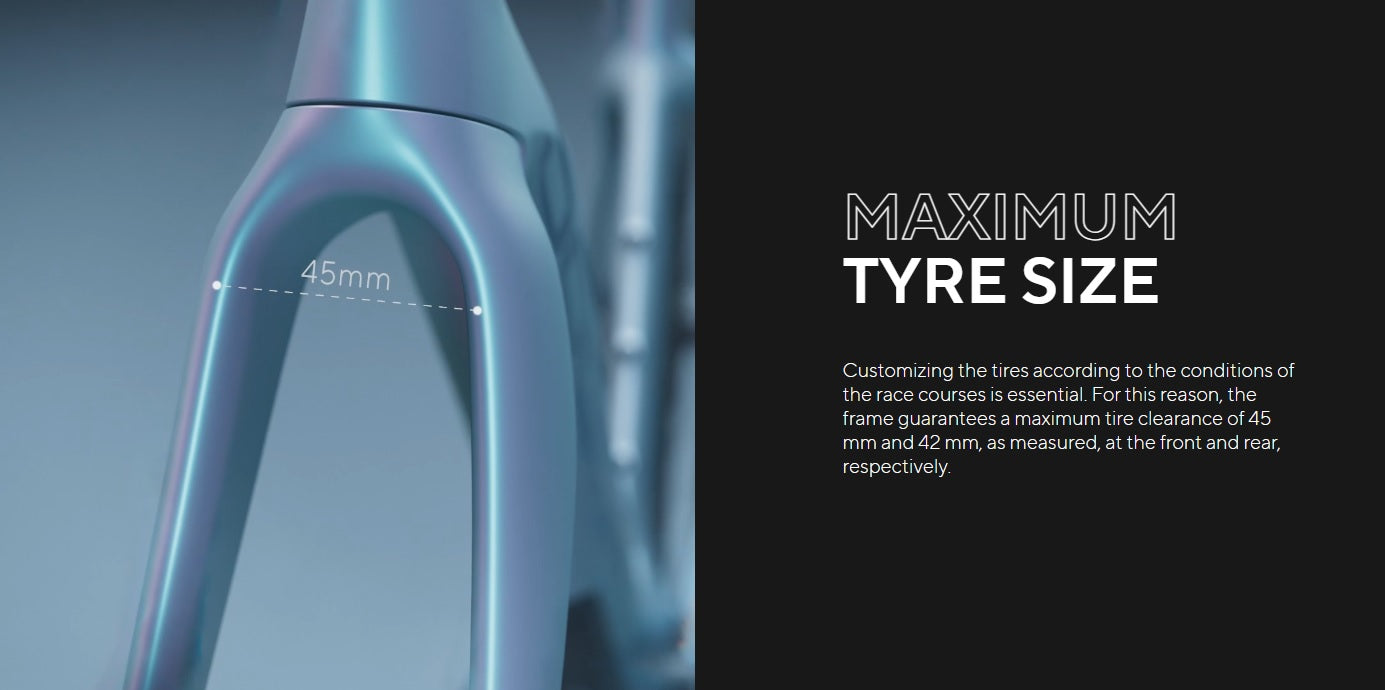

• Maximum Tire Size - Customizing the tires according to the conditions of the race courses is essential. For this reason, the frame guarantees a maximum tire clearance of 45 mm and 42 mm, as measured, at the front and rear, respectively.

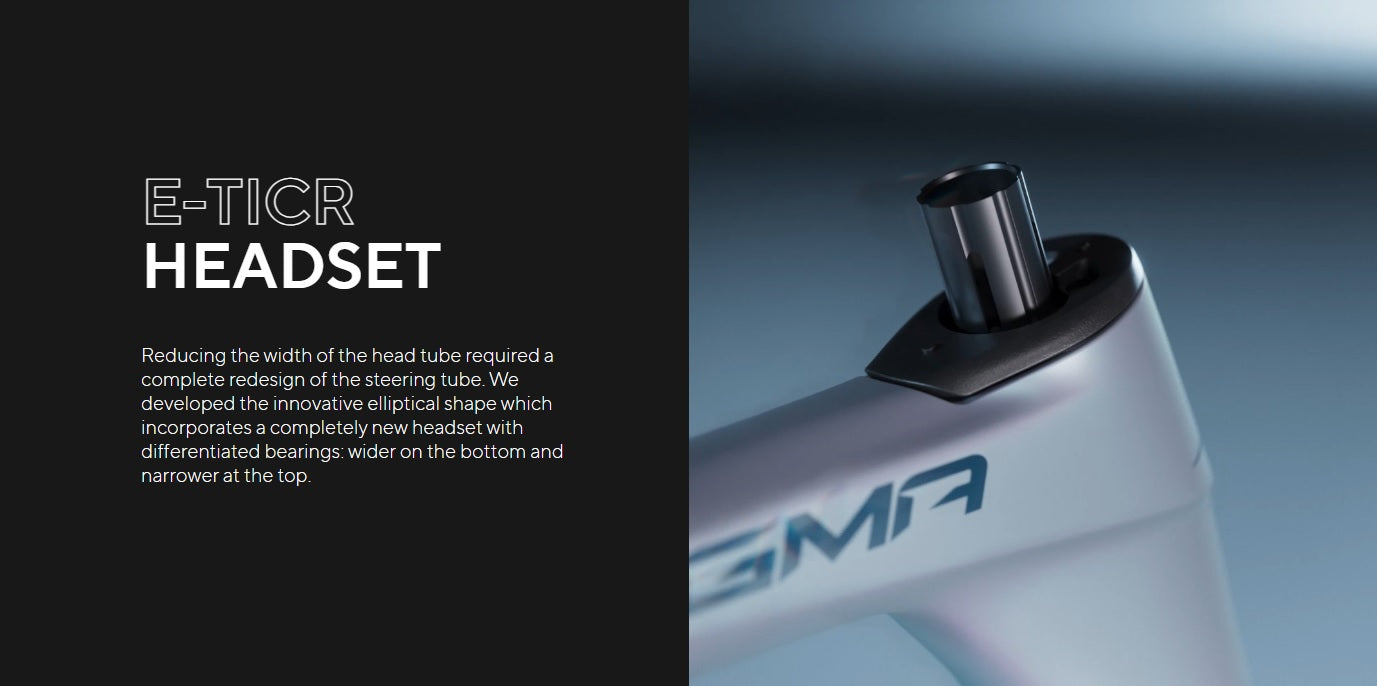

• E-Ticr Headset - Reducing the width of the head tube required a complete redesign of the steering tube. We developed the innovative elliptical shape which incorporates a completely new headset with differentiated bearings: wider on the bottom and narrower at the top.

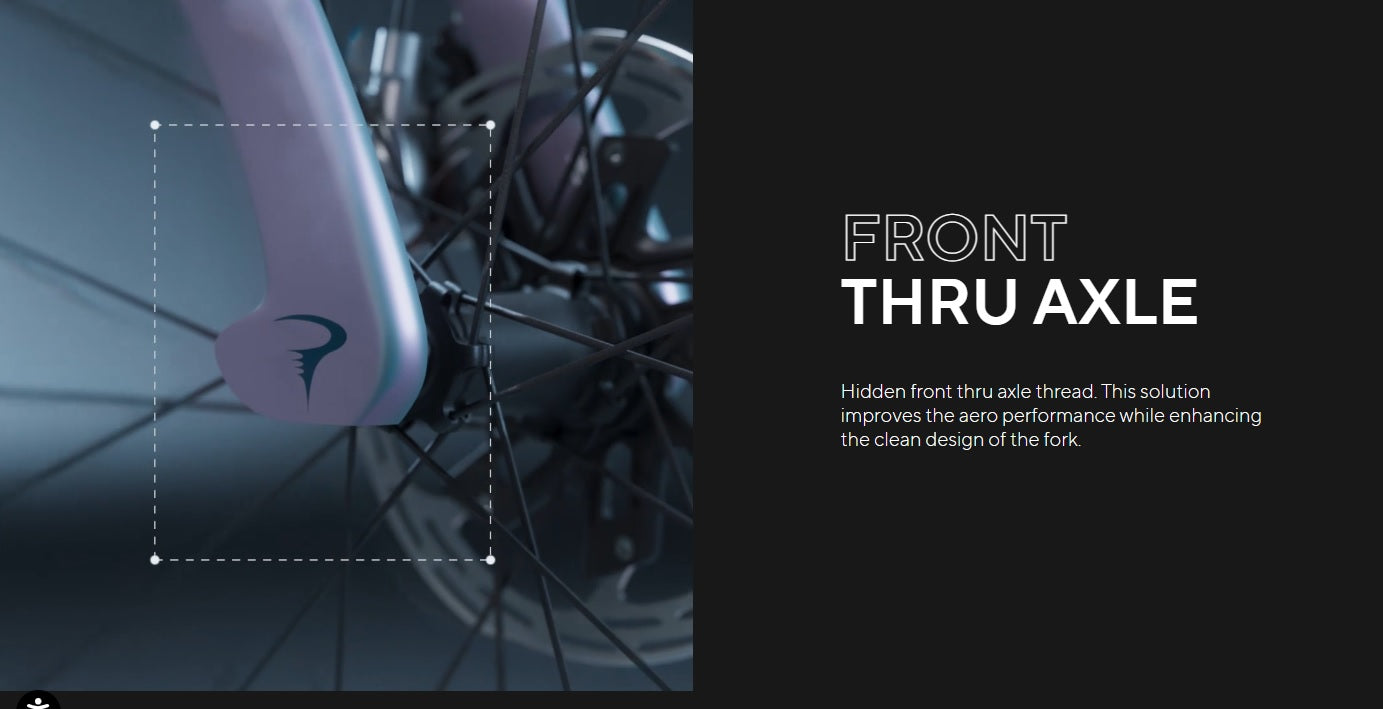

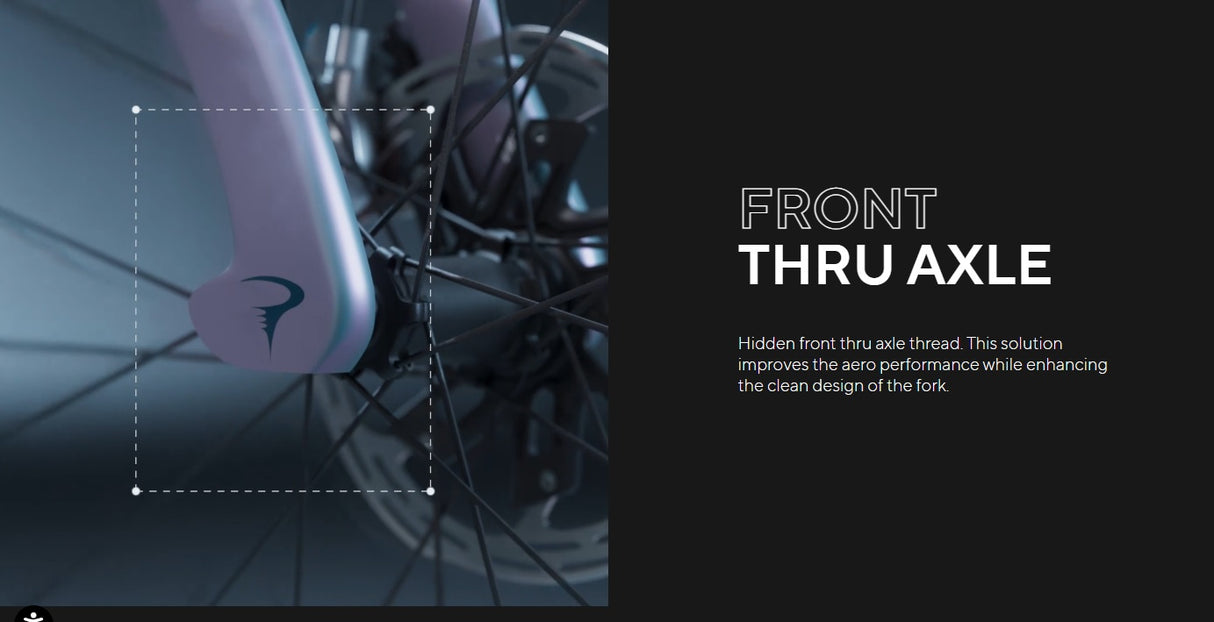

• Front Thru Axle - Hidden front thru axle thread. This solution improves the aero performance while enhancing the clean design of the fork.

Specifications

Frameset

• Frame - TorayCa M40X, TiCR™ Cable Routing, Italian BB
• Fork - NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer

Drivetrain

• Crankset and Chainrings - SRAM RED XPLR AXS 1x13
• Chain - SRAM Red
• Rear Derailleur - SRAM RED XPLR AXS 1x13
• Cassette - SRAM RED XPLR AXS 1x13
• Bottom Bracket - SRAM BB DUB ITALIAN 70mm ROAD WIDE

Brakes

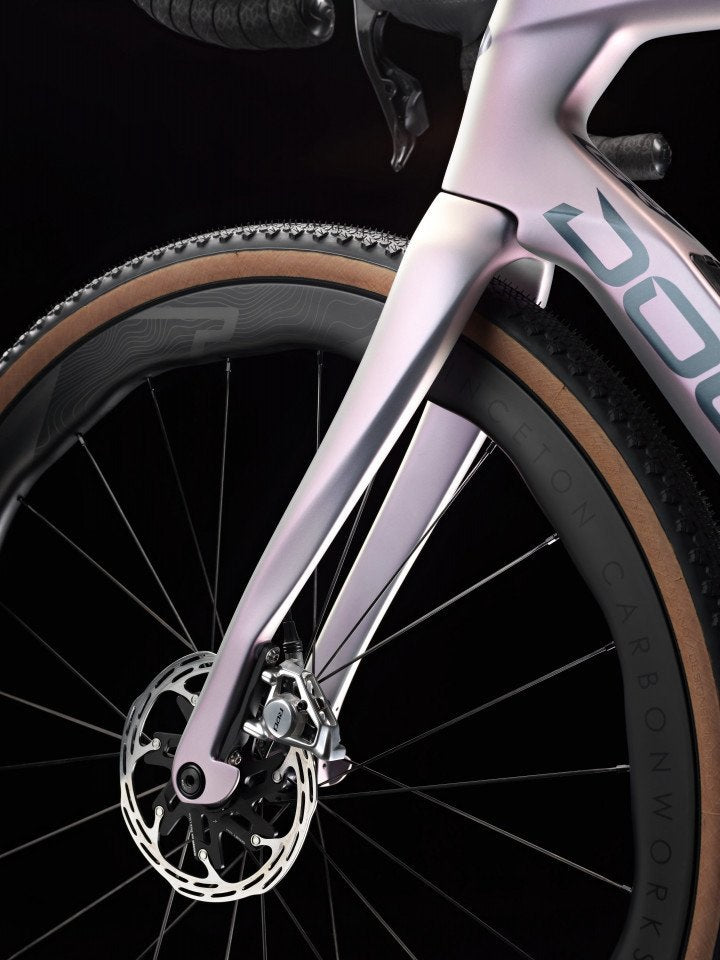

• Front Disc Brake - Sram Red 2 pistons caliper, 160mm rotor
• Rear Disc Brake - Sram Red 2 pistons caliper, 160mm rotor

Cockpit

• Integrated Handlebar - TALON ULTRA FAST GR
• Bar Tape - Most Bar Tape
• Saddle - LYNX 2.0 XC
• Seatpost - Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts

Wheels and Tires

• Tires - Maxxis Reaver 700x40mm
• Wheelset - PRINCETON GRIT 4540 DB (Disc Brake)
• Disc Wheel Axles - NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal

Accessories and Notes

• Bottles and Bottles Cages - Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml, Black

*Specifications subject to change without notice

• Mack Cycle recommends to bring this bike to your authorized bike mechanic to complete assembly.  Your local mechanic will charge an assembly fee that would be payable to your mechanic.
