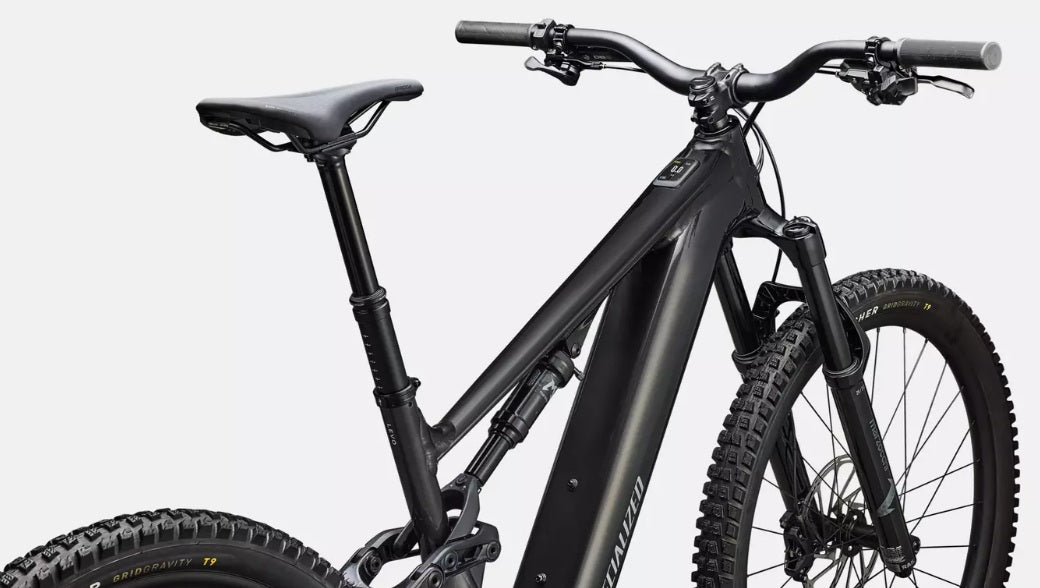

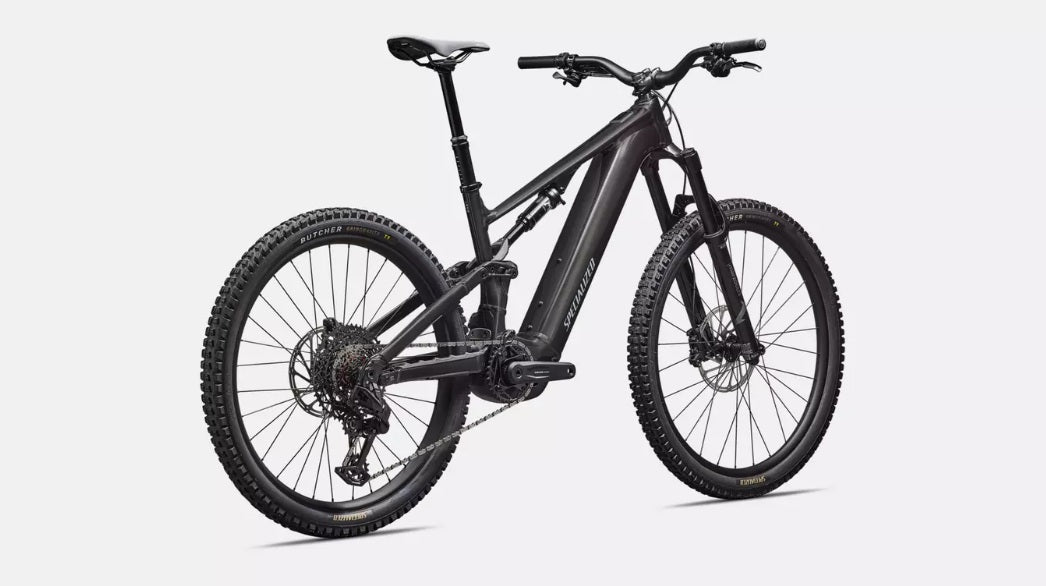

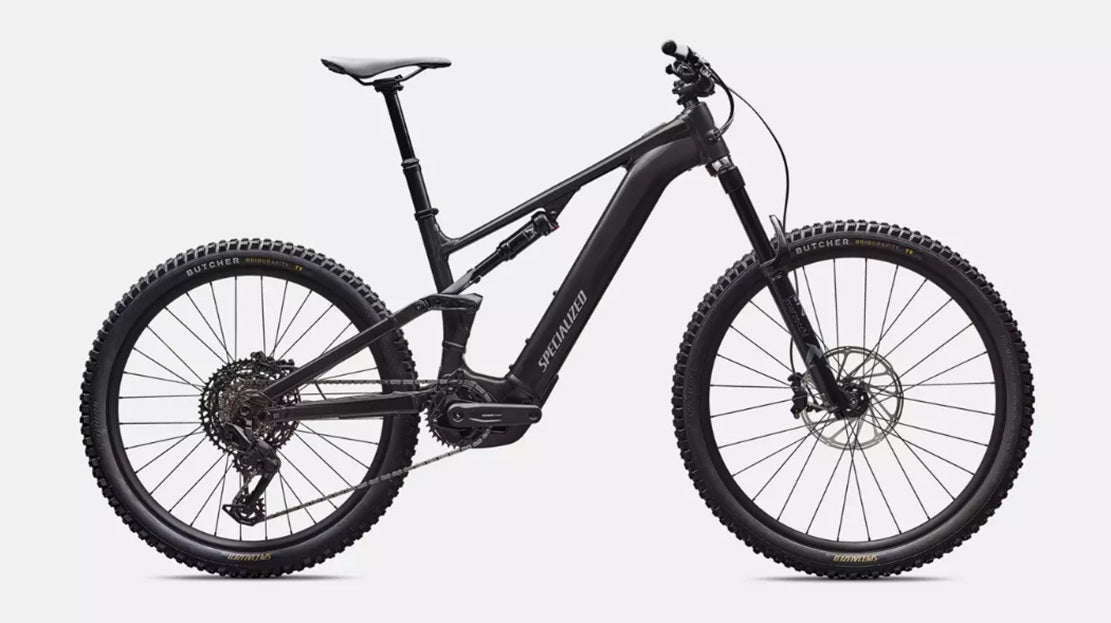

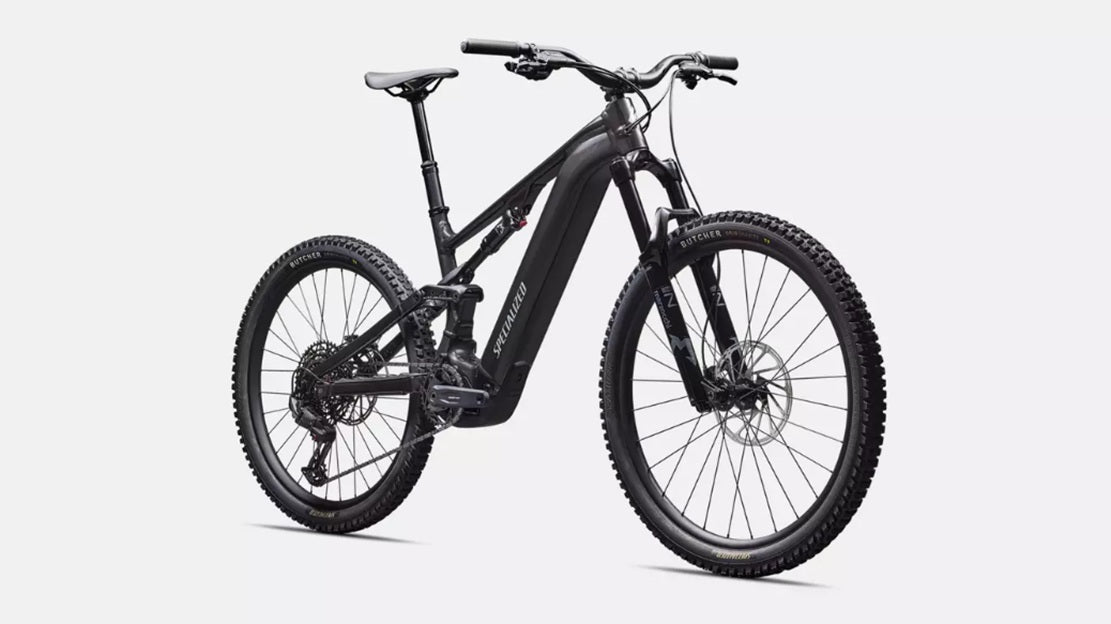

Specialized Turbo Levo 4 SRAM Eagle 70 Full Suspension Mountain Electric Bike

The Specialized Science Club Introduces the new Specialized Turbo Levo 4 SRAM Eagle 70 Full Suspension Mountain Electric Bike, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

At a Glance

• Use - Full Power E-MTB Trail
• E-System - Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33 hour range
• Frame - Premium M5 Alloy, Geo Adj & SWAT Storage

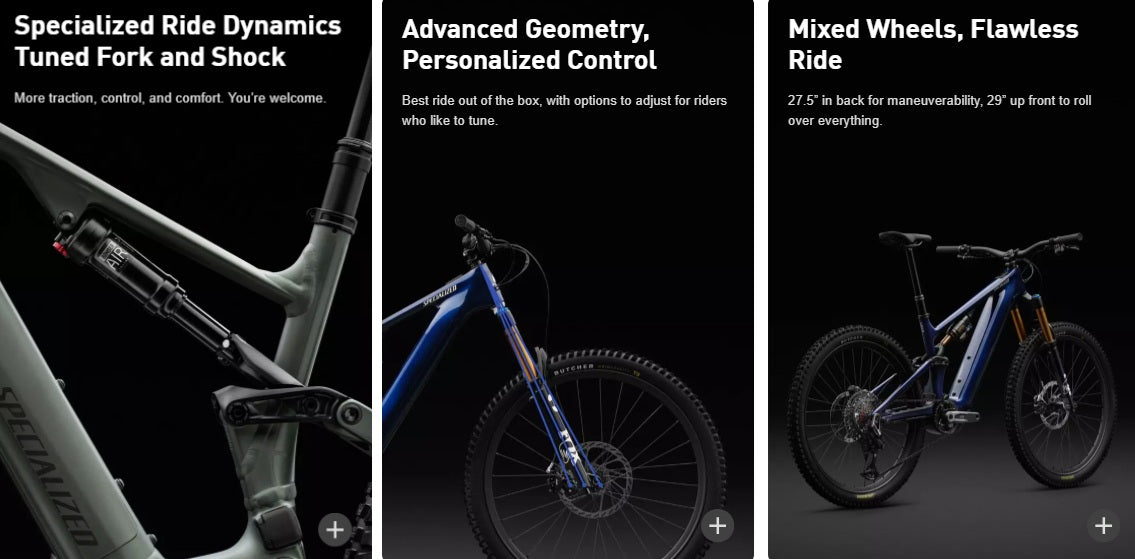

• Suspension - Front: 160mm Marzocchi Bomber Z1, Rear: 150mm Marzocchi Bomber Inline (shock subject to upgrade)
• Drivetrain - SRAM 70 Eagle T-Type Mechanical
• Wheels - Specialized Alloy Rims / Bear Pawls hubs

Technical Specifications

E-Bike

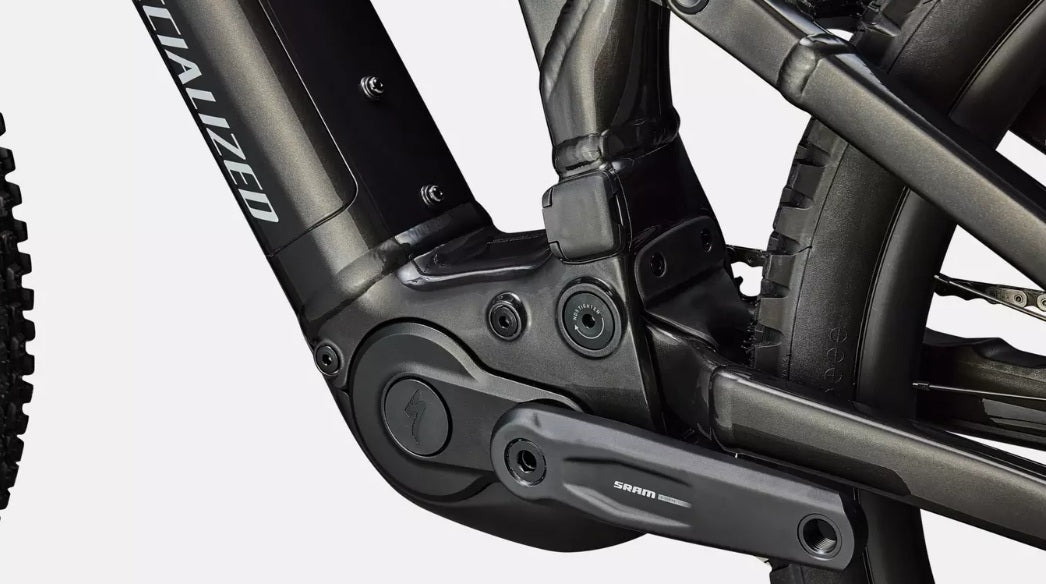

• Motor - All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
• Battery - 840Wh battery

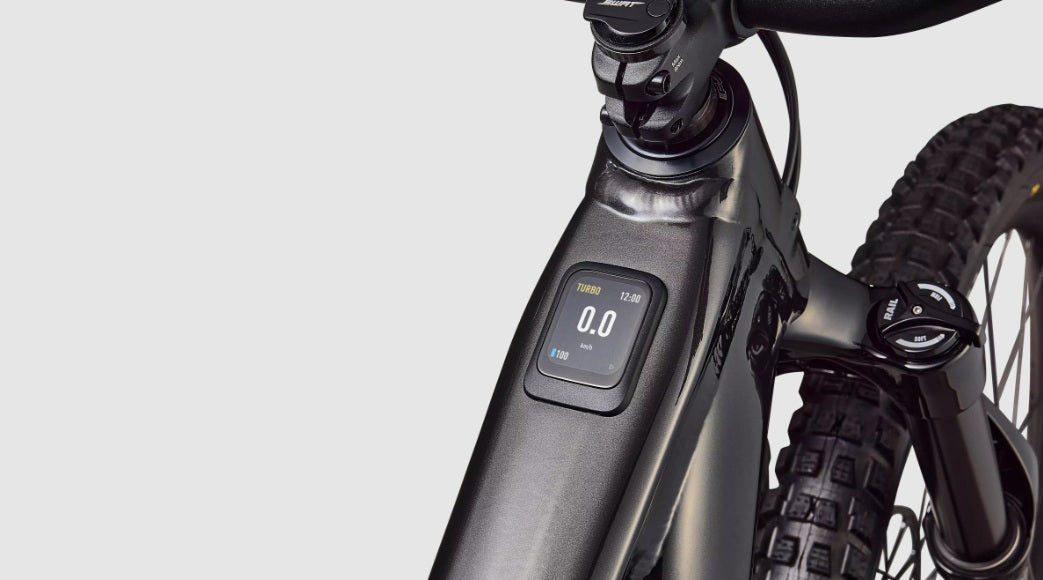

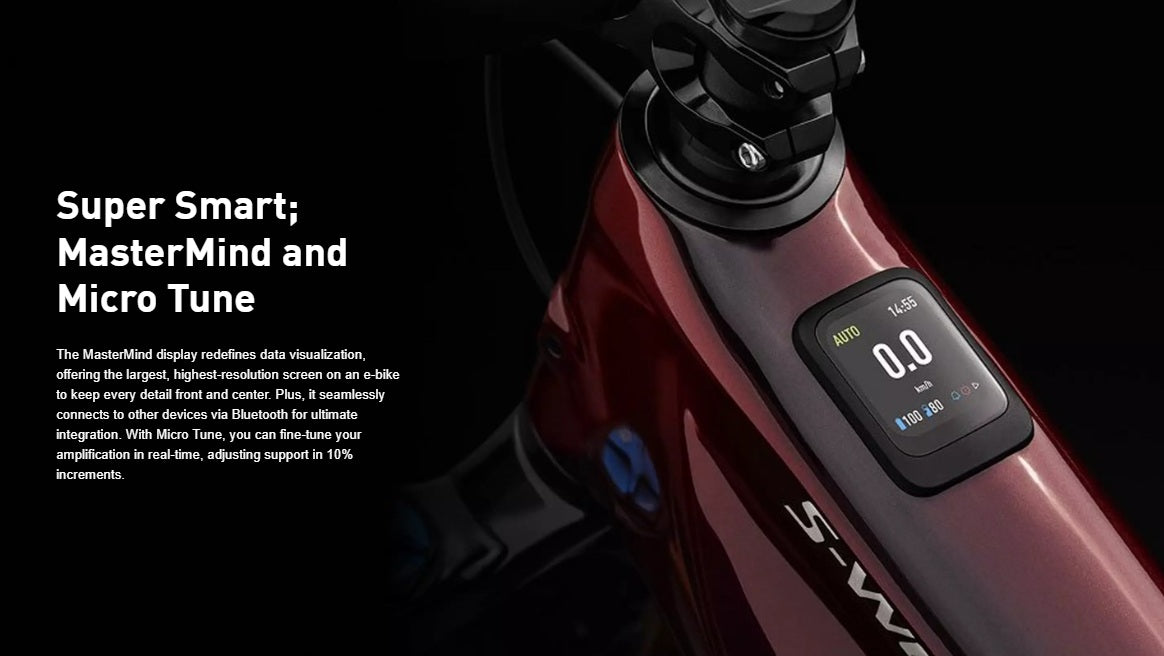

• UI/Remote - All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
• Charger - Specialized 4amp charger

Frameset

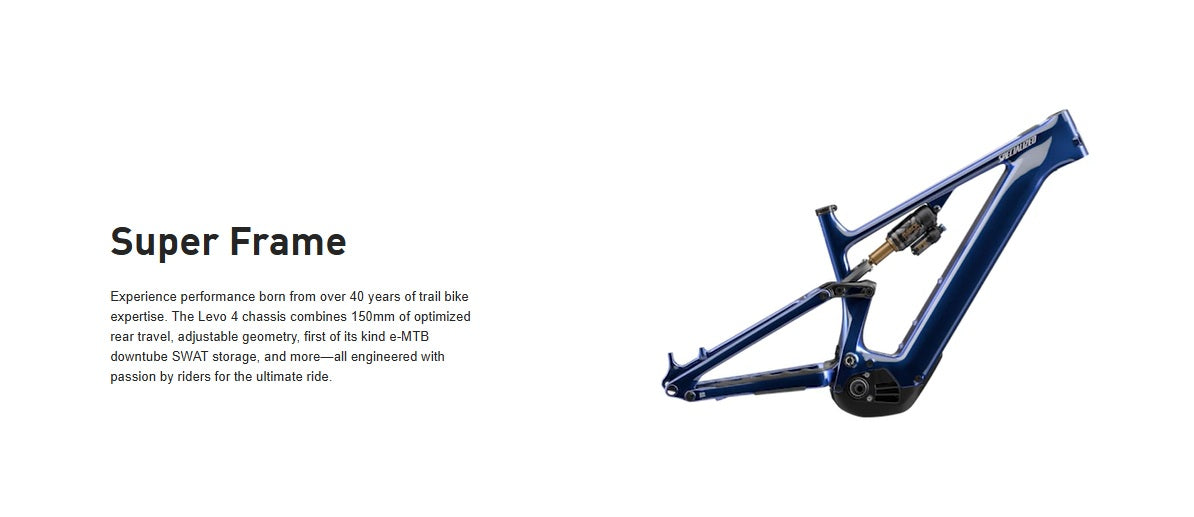

• Frame - All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
• Seat Binder - Alloy, 38.6mm

Suspension

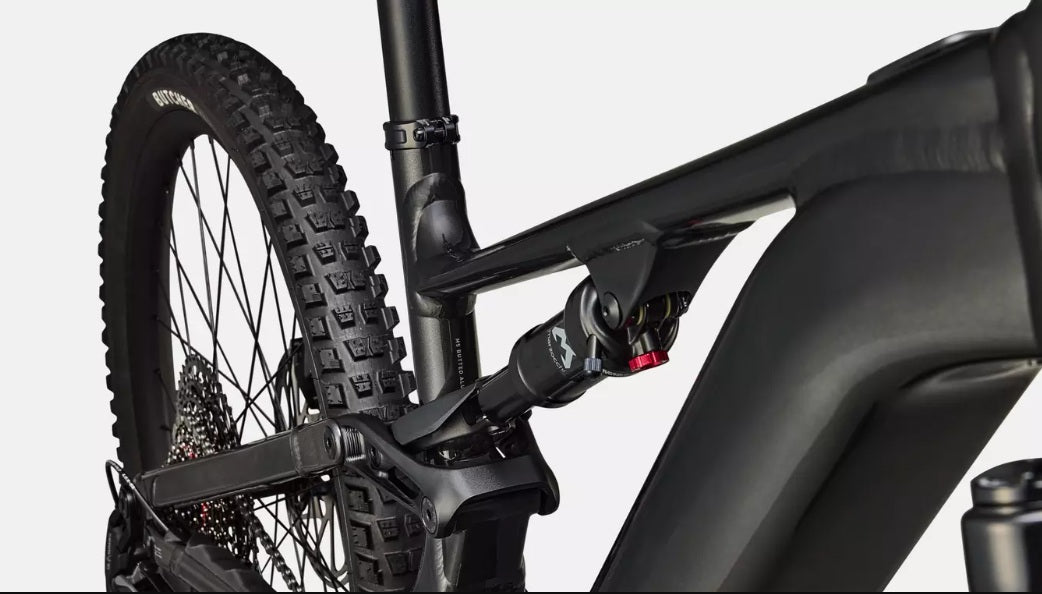

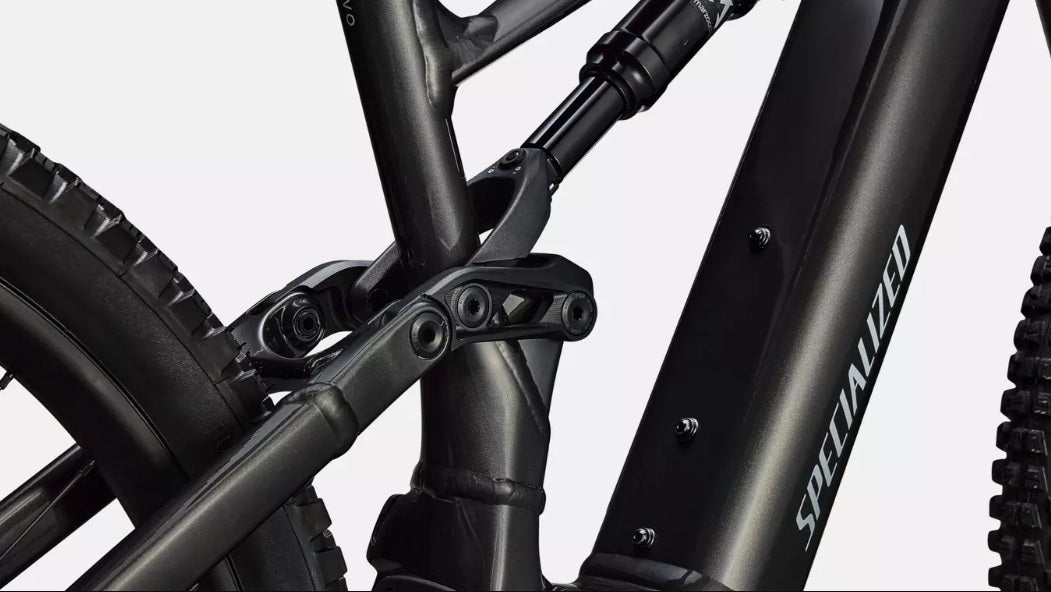

• Rear Shock - *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
• Fork - Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

Brakes

• Front Brake - SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
• Rear Brake - SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Drivetrain

• Shift Levers - SRAM 70 trigger, 12-speed, single click
• Rear Derailleur - SRAM Eagle 70 T-Type
• Cassette - XS-1270, 12-speed, 10-52t
• Chain - SRAM Eagle 70 T-Type Flattop Chain
• Crankset - SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
• Chainrings - SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires

• Rims - Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
• Front Hub - Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
• Rear Hub - Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
• Spokes - DT Swiss Industry
• Front Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
• Rear Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
• Inner Tubes - Standard, Presta valve

Cockpit

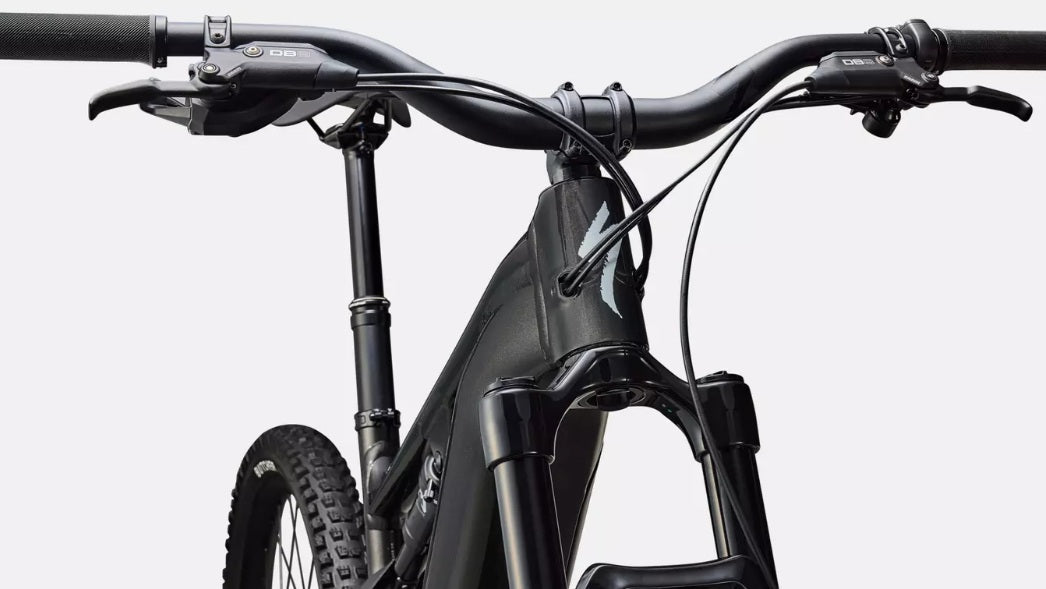

• Stem - Alloy Trail Stem, 35mm bar bore
• Handlebars - Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
• Grips - Specialized Trail Grips
• Saddle - Body Geometry Bridge Saddle, steel rails
• SeatPost - TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm

Accessories

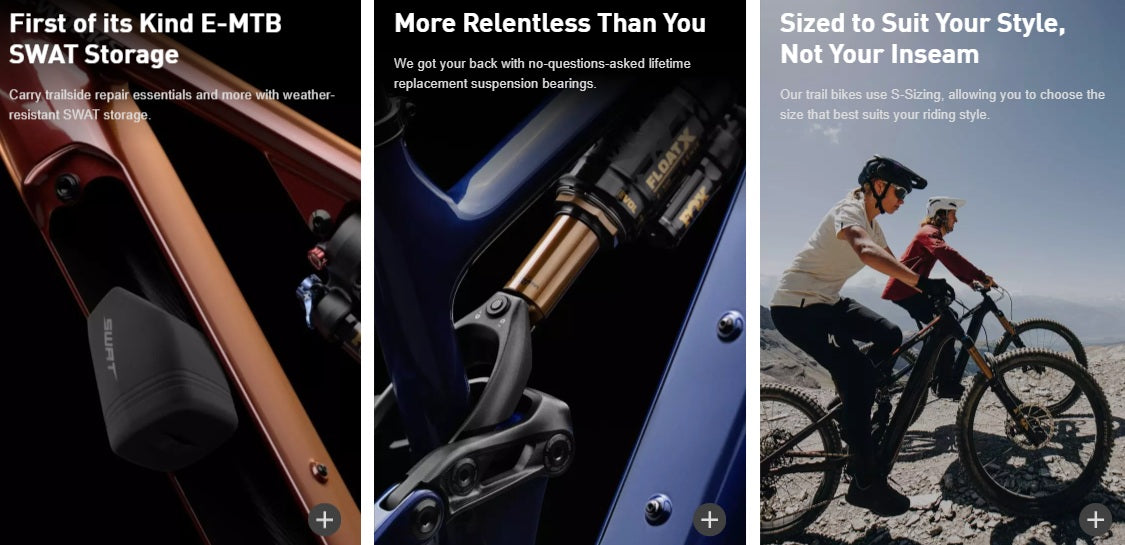

• SWAT - SWAT internal downtube storage

• Compliance Certification - As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
• For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

• Weight - 26.08 kg (57 lb, 7.8 oz) - Based on Size S4

*Specifications subject to change without notice
