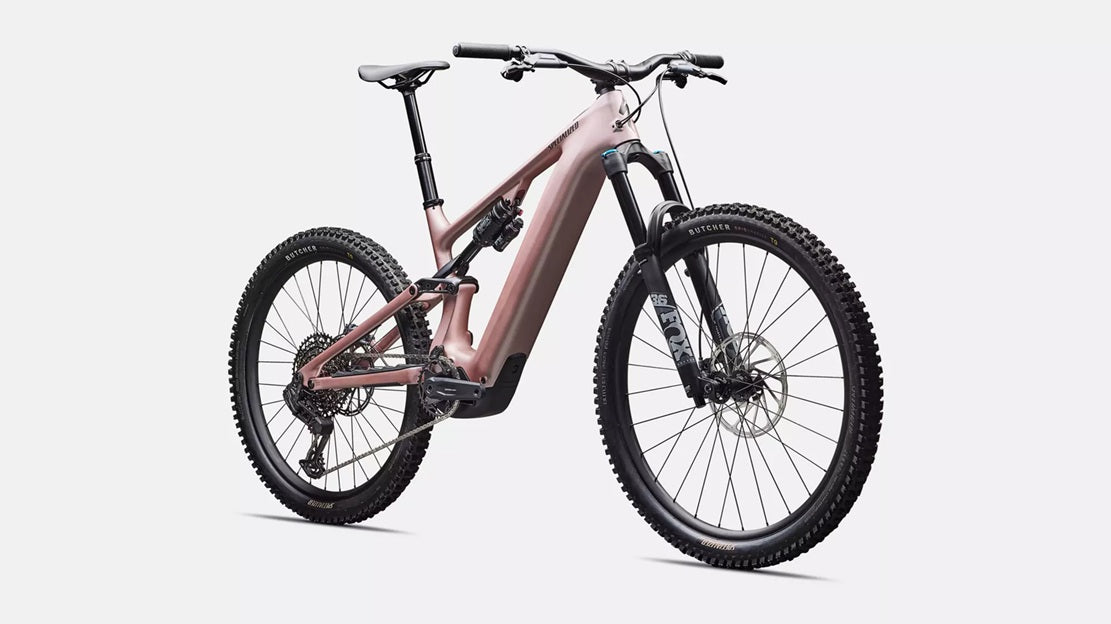

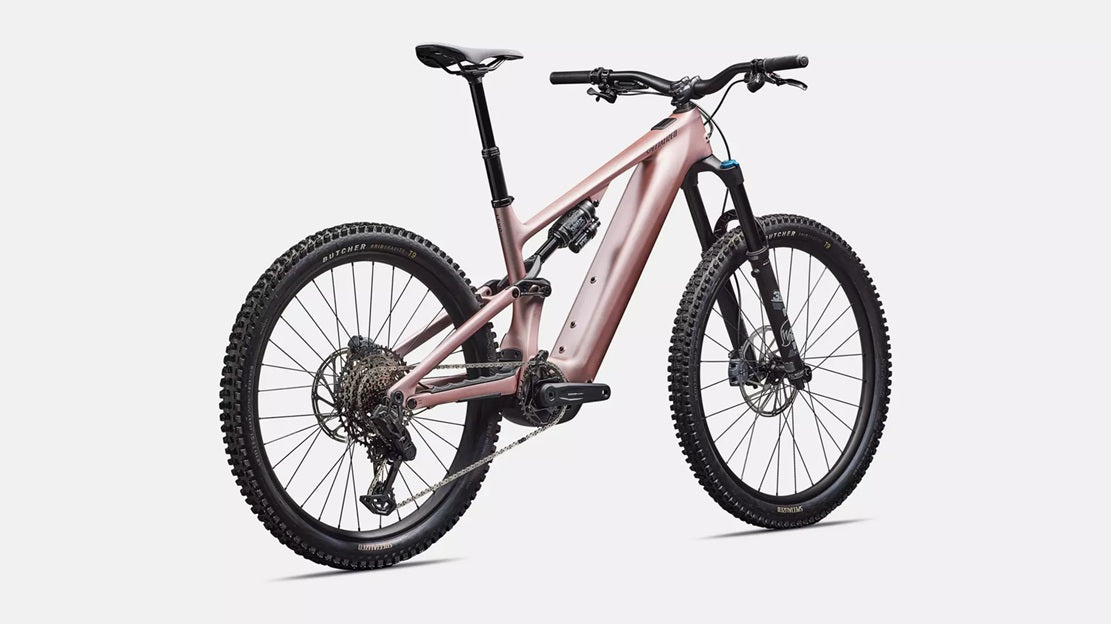

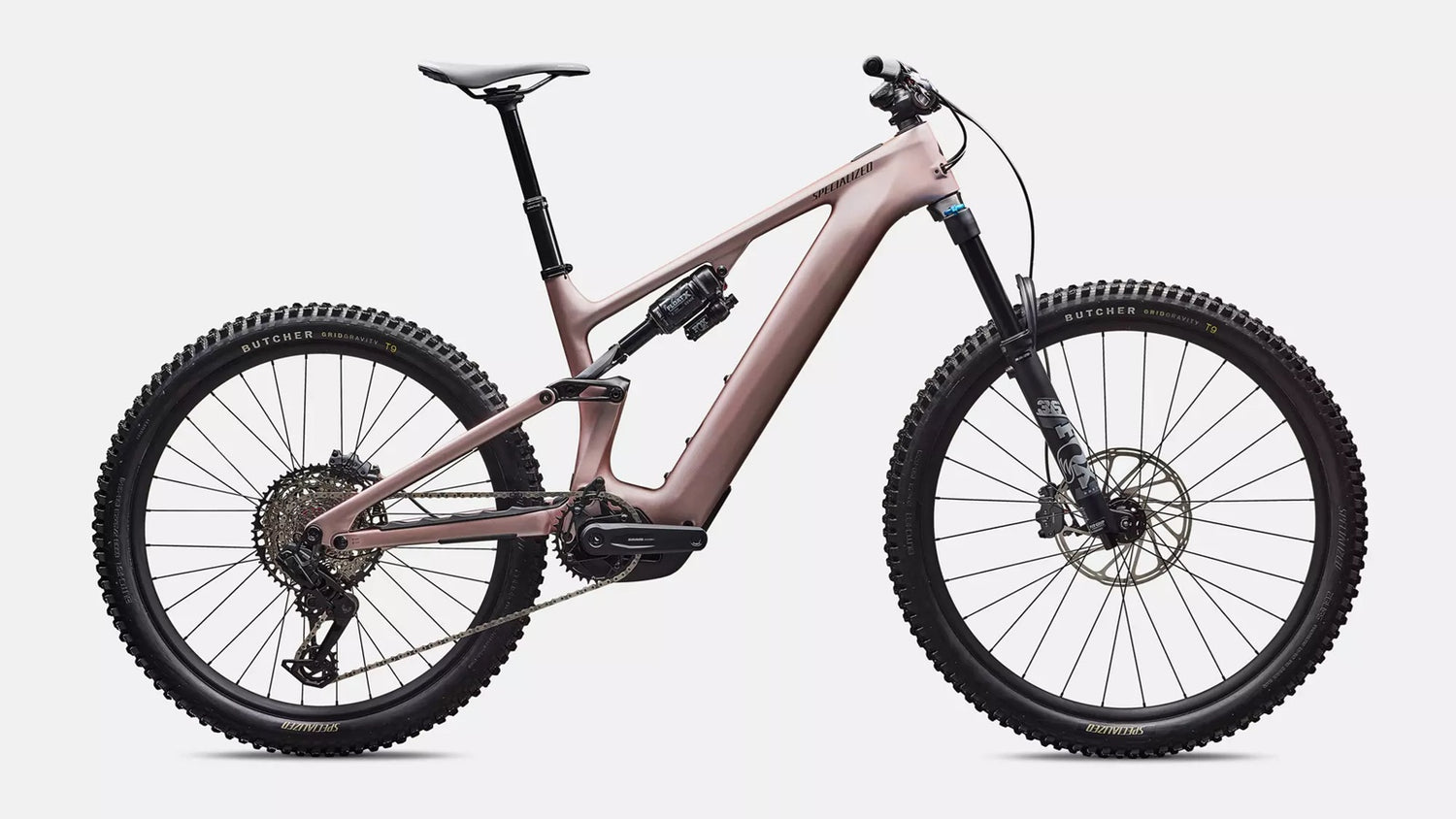

Specialized Turbo Levo 4 Comp 840WH Electric Mountain Bike

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Specialized Turbo Levo 4 Comp 840WH Electric Mountain Bike, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

At a Glance

• Use - Full Power E-MTB Trail
• E-System - Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range
• Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
• Suspension - Front: 160mm FOX FLOAT 36 Rhythm GRIP, Rear: 150mm GENIE - FOX FLOAT X Performance
• Drivetrain - SRAM S1000 Eagle T-Type AXS
• Wheels - Specialized Alloy Rims / Bear Pawls hubs

Technical Specifications

E-Bike

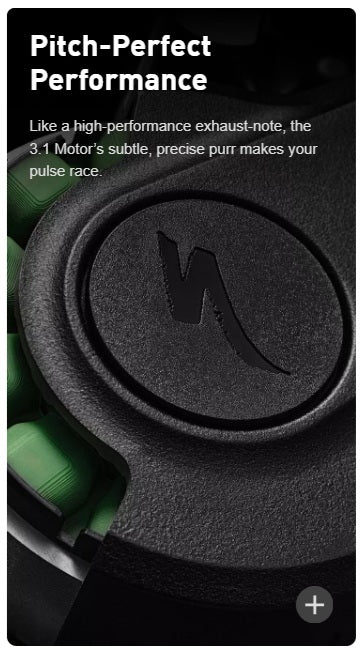

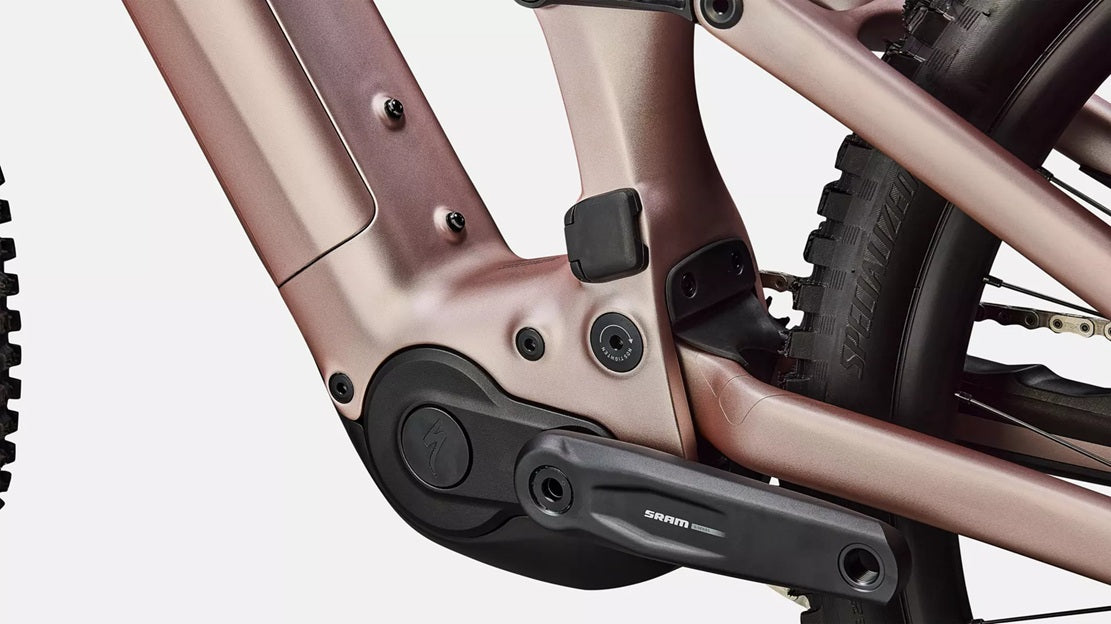

• Motor - All New Specialized 3.1 Motor, 101Nm torque, 666W power

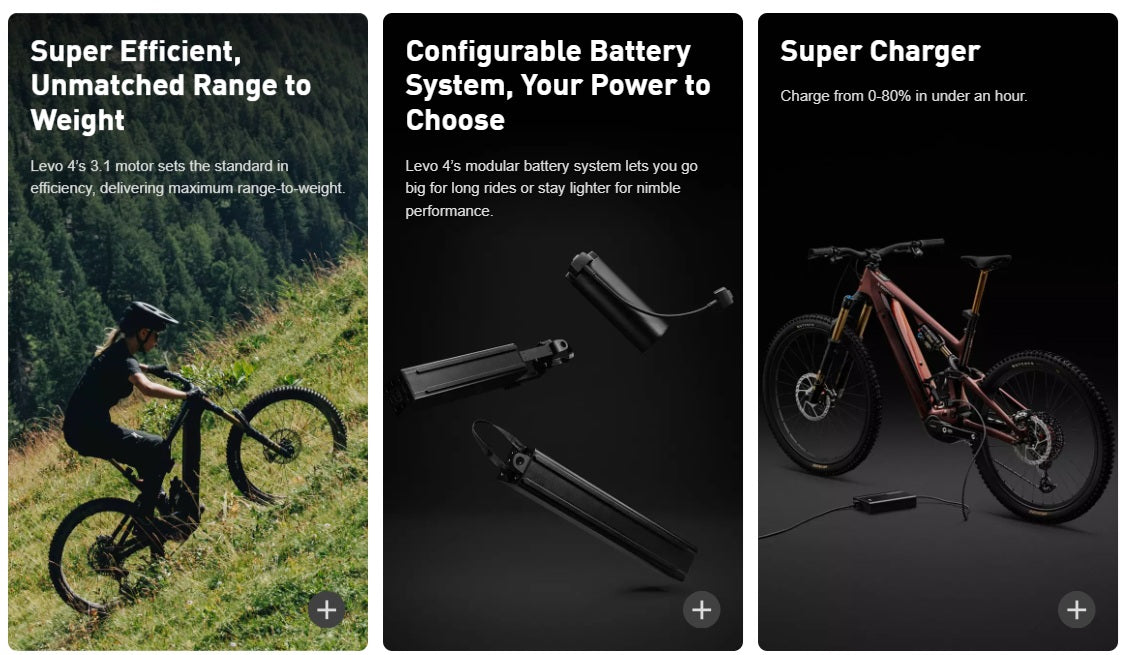

• Battery - 840Wh battery

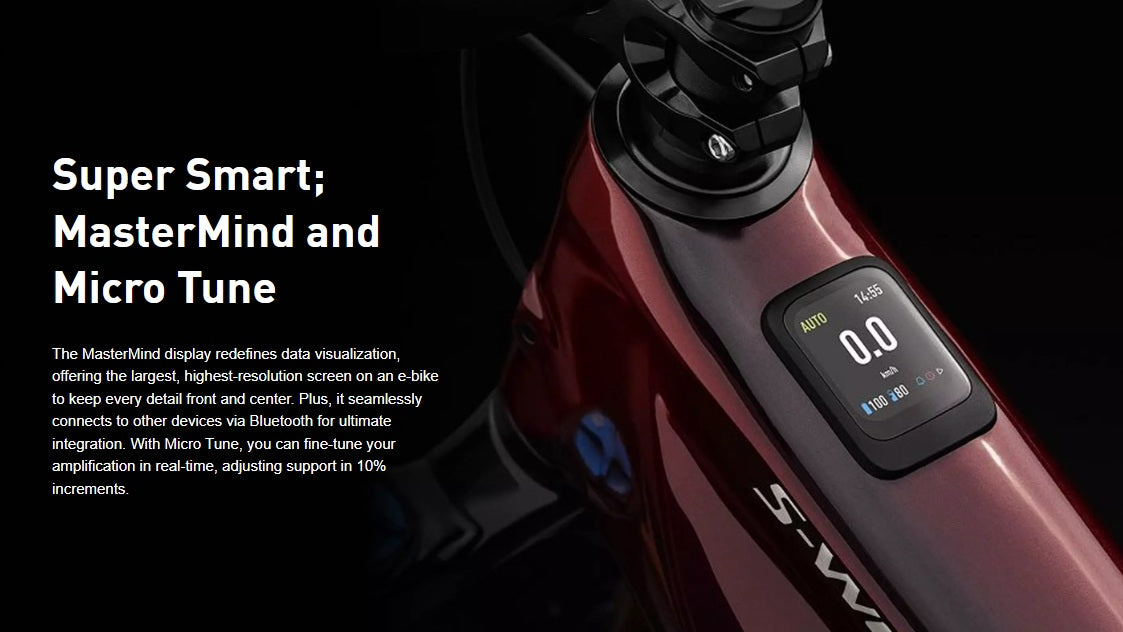

• UI/Remote - All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
• Charger - Specialized 4amp charger

Frameset

• Frame - All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
• Seat Binder - Alloy, 38.6mm

Suspension

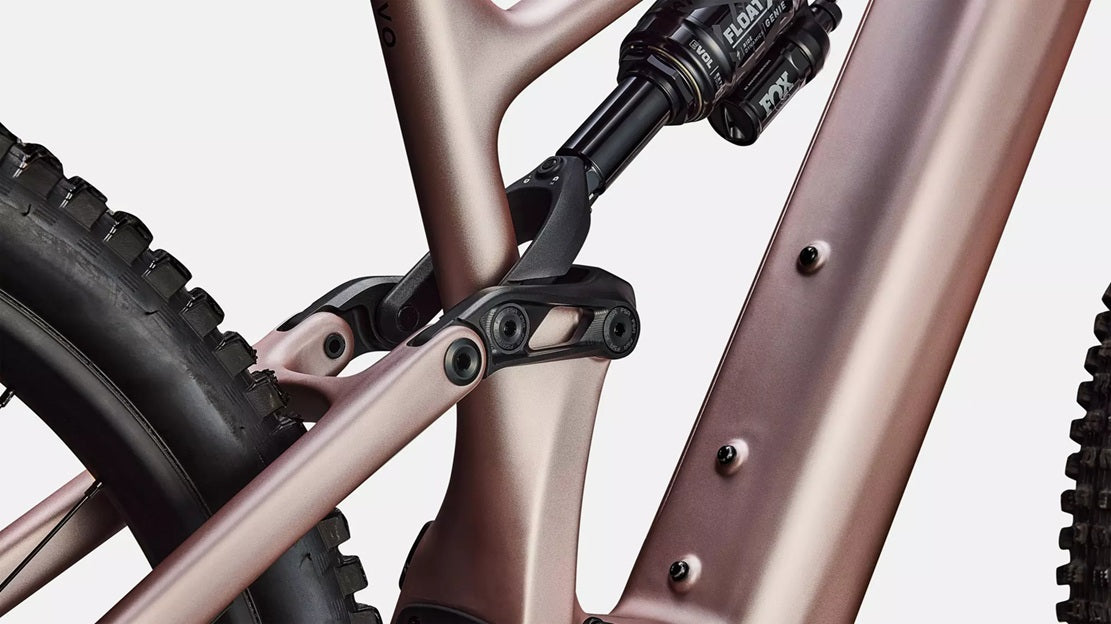

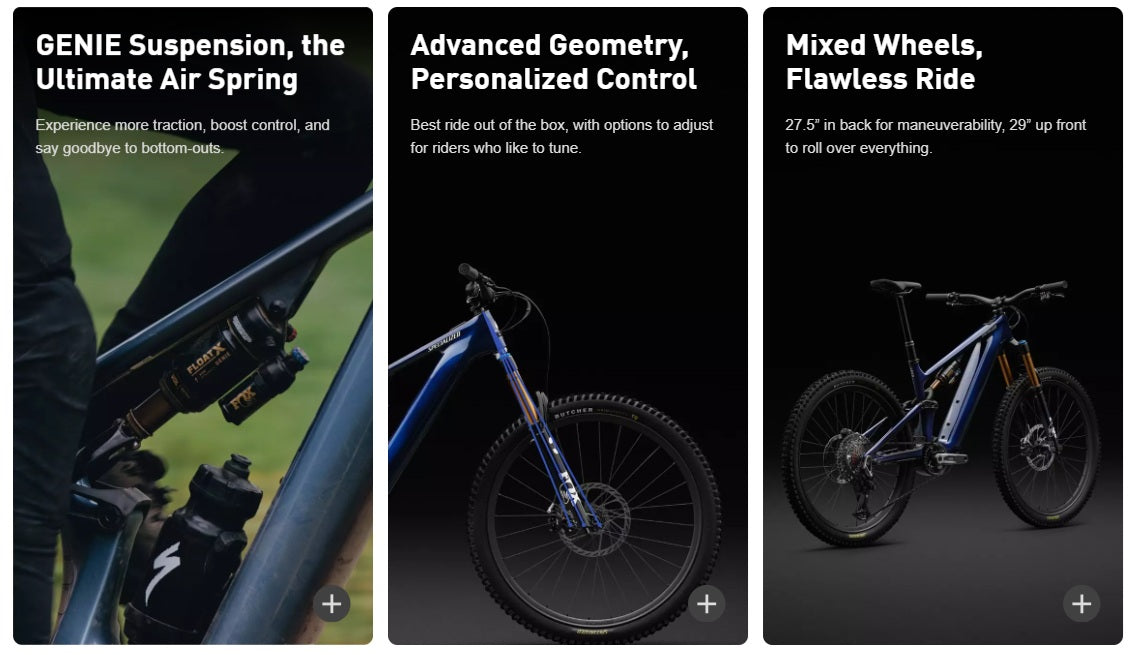

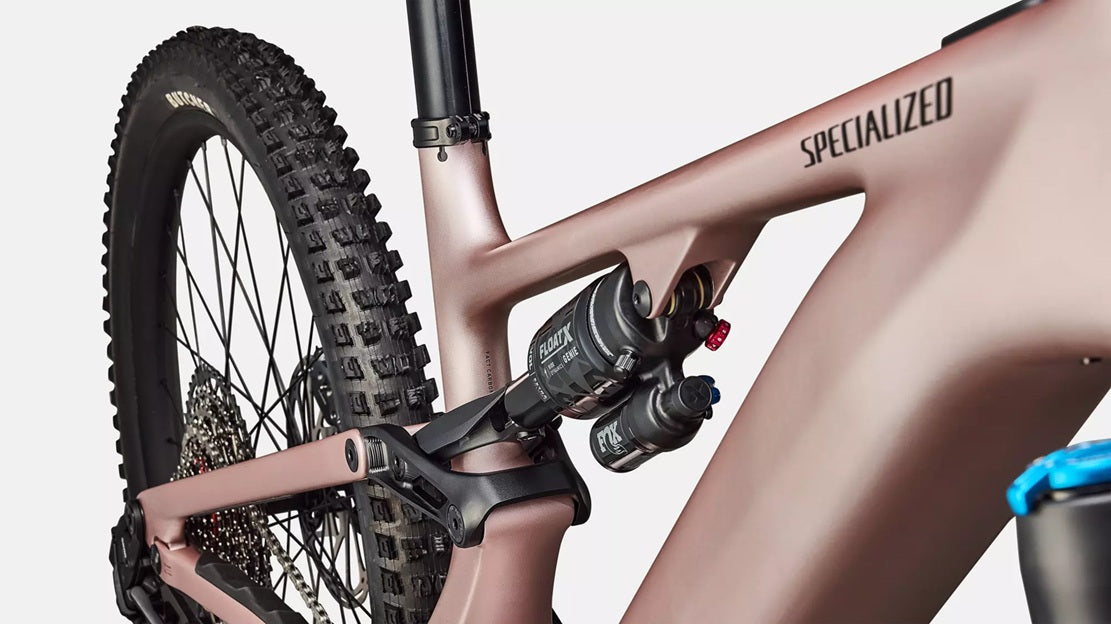

• Rear Shock - FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
• Fork - FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Brakes

• Front Brake - SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor
• Rear Brake - SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor

Drivetrain

• Shift Levers - SRAM AXS POD Controller
• Rear Derailleur - SRAM S1000 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
• Cassette - SRAM 1270 Transmission Cassette, 12 Spd,10-52t
• Chain - SRAM GX Eagle Transmission Flattop Chain
• Crankset - SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
• Chainrings - SRAM T-type ring, 34T, 104 BCD, steel

Wheels & Tires

• Rims - Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
• Front Hub - Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
• Rear Hub - Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
• Spokes - DT Swiss Industry
• Front Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
• Rear Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
• Inner Tubes - Standard, Presta valve

Cockpit

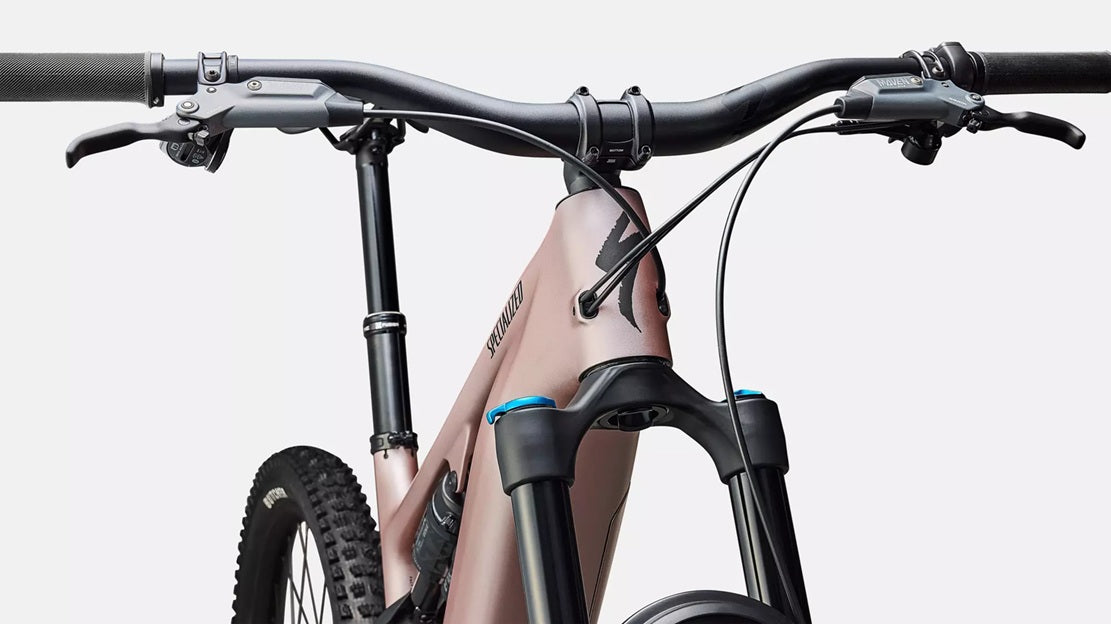

• Stem - Alloy Trail Stem, 35mm bar bore
• Handlebars - Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
• Grips - Specialized Trail Grips
• Saddle - Bridge Comp, Hollow Cr-mo rails
• SeatPost - Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm

Accessories

• SWAT - SWAT internal downtube storage

• Compliance Certification
• As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
• For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
• Weight - 24.41 kg (53 lb, 13.0 oz) - Based on Size S4

*Specifications subject to change without notice

• Mack Cycle recommends assembly by your local, authorized mechanic. They will charge an assembly fee.
