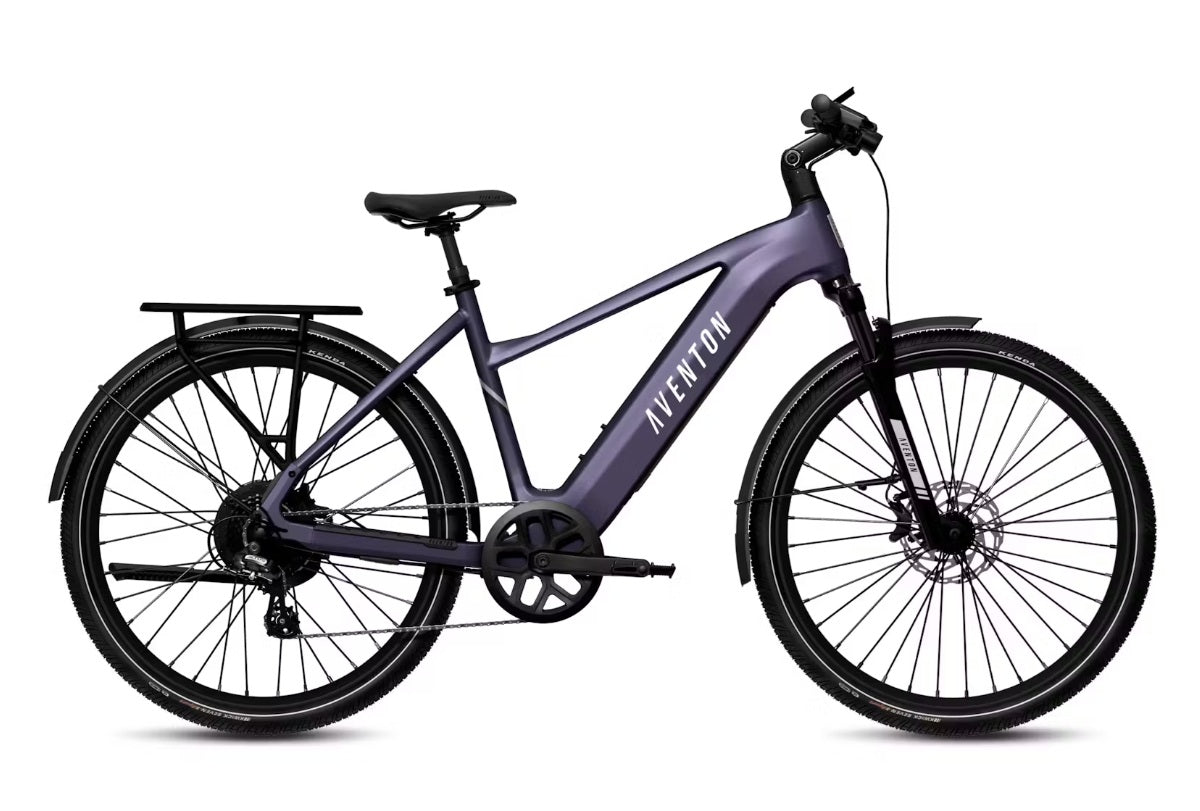

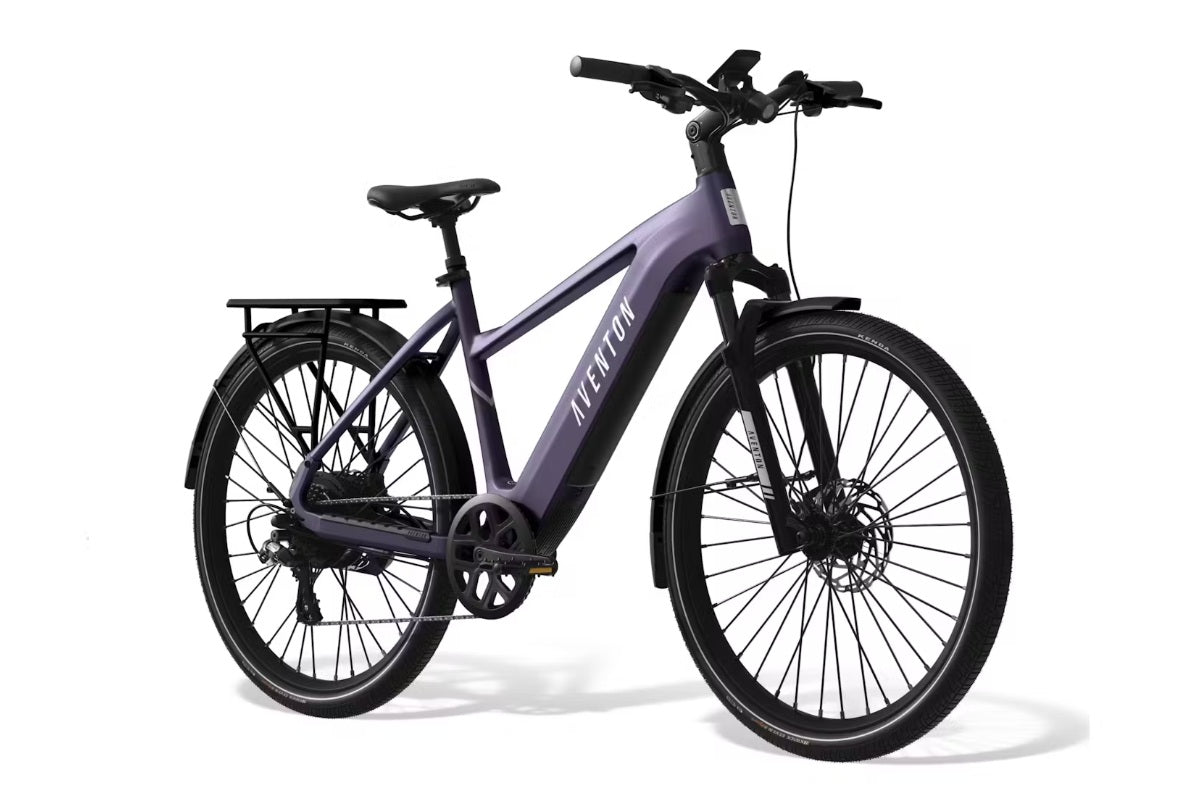

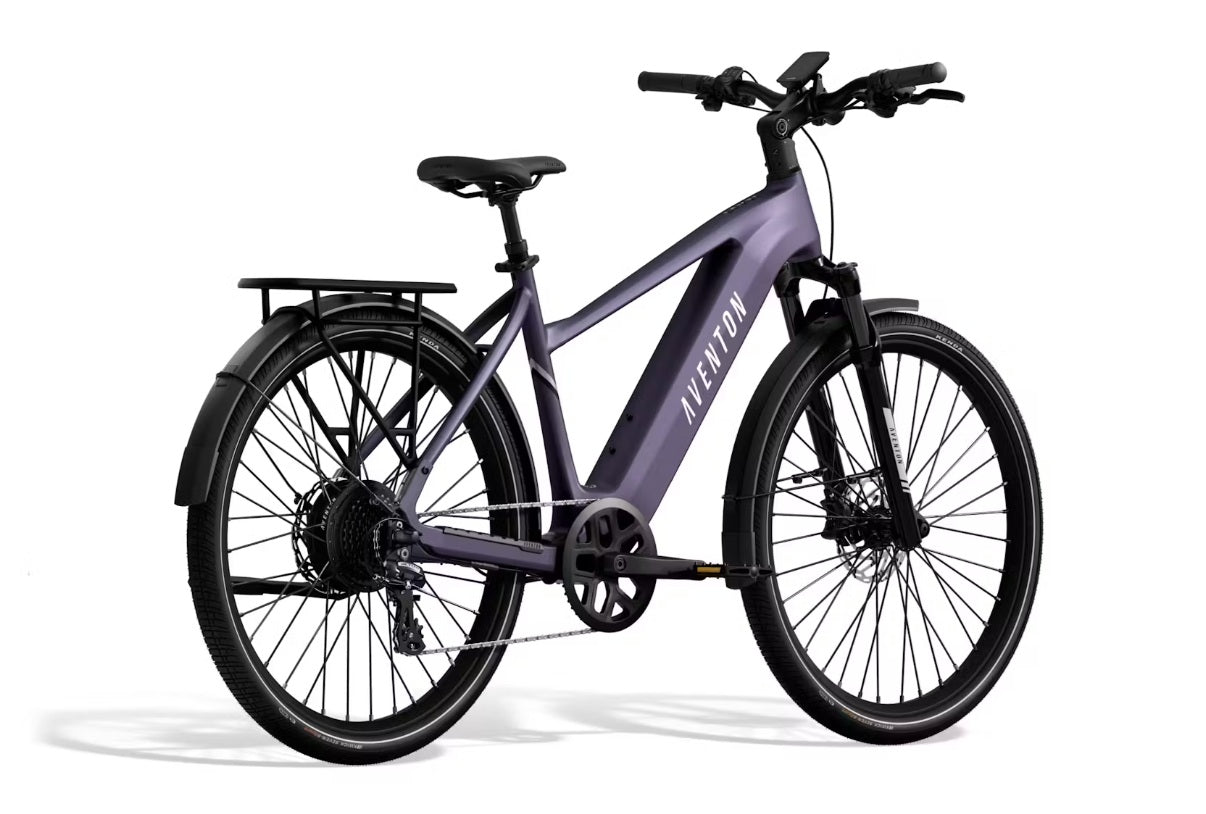

Aventon Level 3 Step Over Front Suspension Commuter E-Bike

Turn daily drives into daily rides with the Aventon Level 3 Step Over Front Suspension Commuter E-Bike, the do-it-all commuter e-bike!

Take your commutes to the next LEVEL. The all new Aventon Level 3 Step Over Front Suspension Commuter E-Bike comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Aventon's  ACU technology provides peace of mind with GPS^† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3

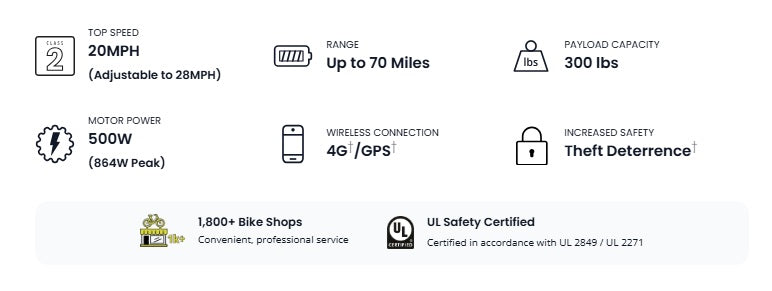

Specifications

• Model - Aventon Level 3 E-Bike
• Weight - 67lbs
• Total Weight Limit - 300lbs
• Box Size - 61x13x34
• Ebike Class - Class 2 Ebike
• Range - Up to 70 Miles
• Battery Safety Certifications - Certified to UL 2271
• Safety Certifications - UL Safety Certified UL 2849
• Ideal Use - Commuting

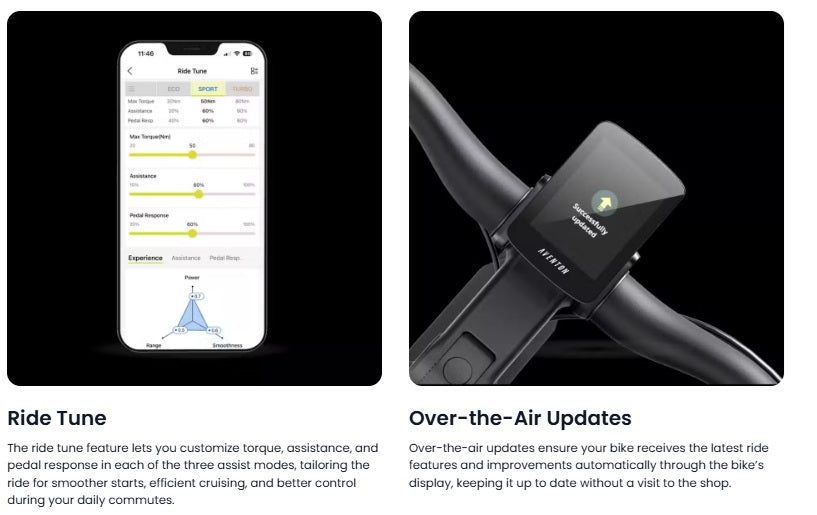

• Pedal Assist - 3 Levels (with Ride Tune Customization)
• Water Resistance - Bike - IPX5 // Components - IPX6

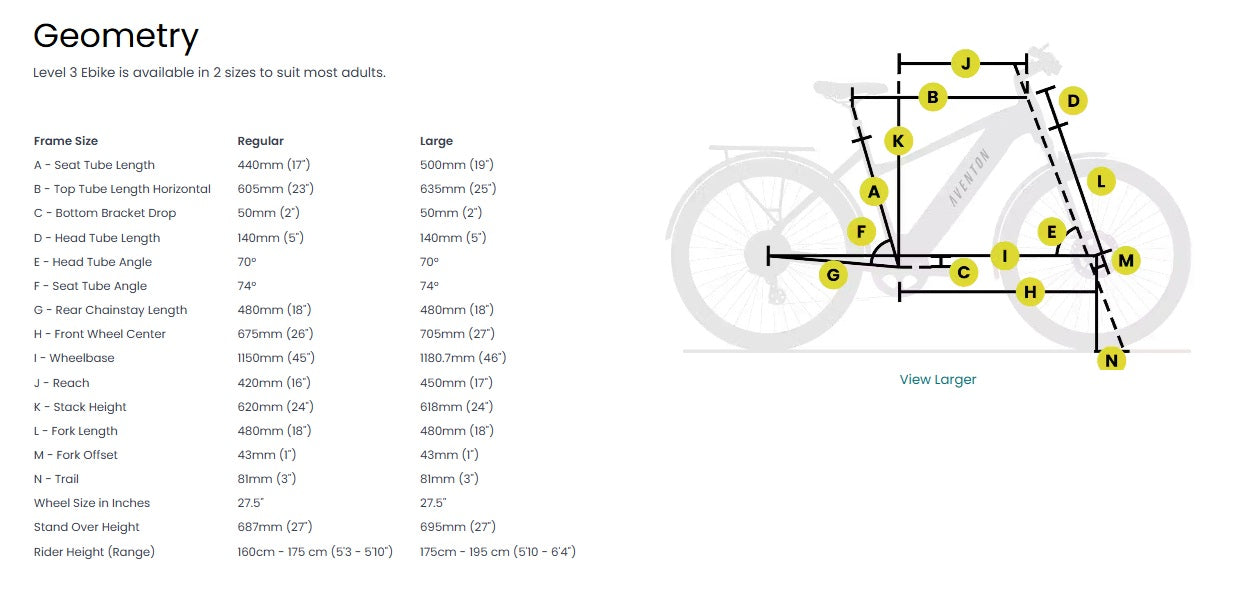

Frameset

• Frame - 6061 Aluminum, Gravity Cast Front Triangle
• Fork - Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
• Rear Spacing - 142mm
• Fork Spacing - 110mm
• Frame Style - Step-Over

Wheelset

• Front Wheel - 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
• Rear Wheel - 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
• Tires - Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

Ebike System

• Motor - 36V, 500W (sustained), 864W (peak)
• Motor Torque - 60Nm
• Display - Aventon BC280
• Battery - Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
• Battery Weight - 8.7lbs
• Controller - 36V, 24A
• Throttle - Aventon LH Handlebar Mounted
• Sensors - Double Sided Bottom Bracket Torque Sensor
• Charger - 36V Output: 42V/ 4A
• Charging time from 0% to 100% - 5 hours
• Lights - Front and rear lights integrated
• Speed - Class 2

Brakes

• Front Brake - Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
• Rear Brake - Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
• Front Brake Rotor - Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
• Rear Brake Rotor - Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor

Drivetrain

• Rear Derailleur - Shimano Altus RD-M310
• Shifter - Shimano 8 Speed Trigger SL-M315-8R
• Chain - 7/8 speed 120L
• Cassette - 12-32T / 8 Speed Shimano CS HG200-8
• Chainring - 48T
• Crankset - 3pc, 170mm crank arm
• Bottom Bracket - Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
• Pedals - 9/16" Composite Platform

Cockpit

• Saddle - Aventon Saddle
• Seatpost - 30.9mm Aventon Suspension Seatpost with 50mm travel
• Seatpost Clamp - 34.9mm
• Handlebars - Aluminum 31.8mm, 680mm
• Grips - Aventon Lock on grips
• Headset - Sealed Bearing Headset

Included Accessories

• Fenders - Included
• Rear Rack - Included
• Rear Rack Weight Limit - 60lbs

*Specifications subject to change without notice

* Mack Cycle recommends to have your local bike store or authorized mechanic complete the assembly of your new Aventon Level 3 E-bike.
