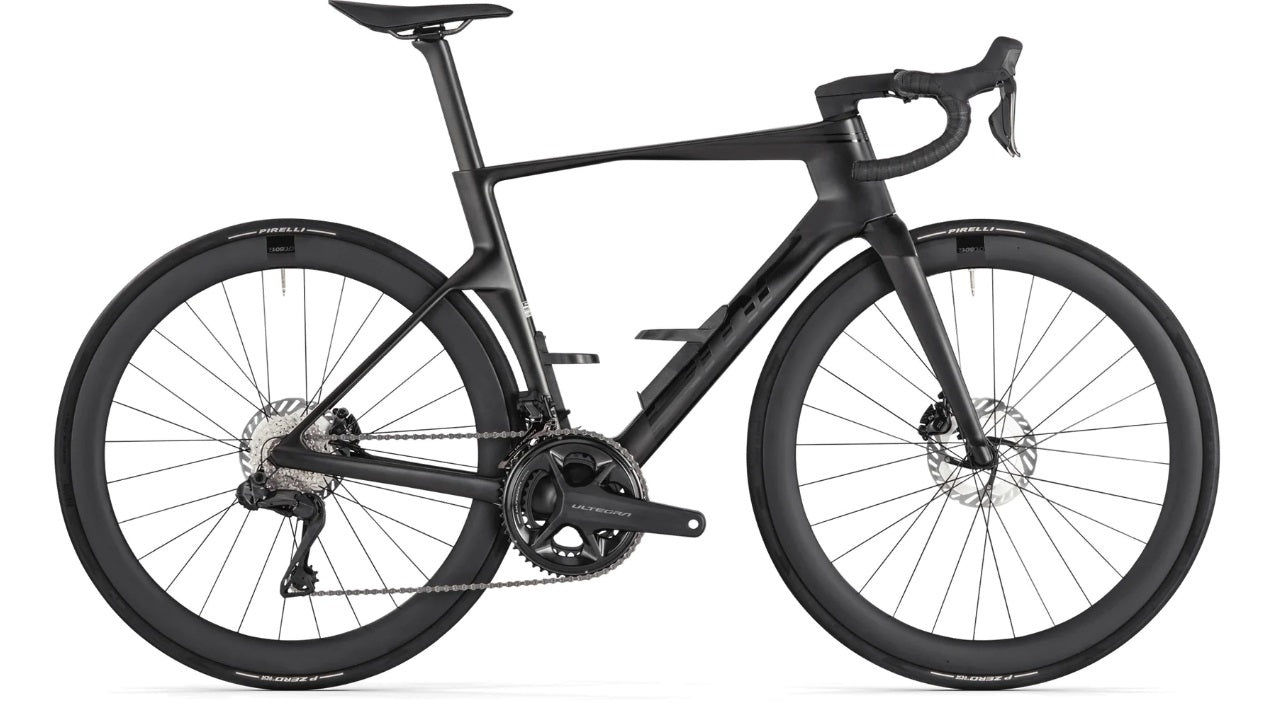

2024 BMC Teammachine R 01 Four Ultegra Di2 12-Speed Carbon Road Bike

Forged on the slopes of the Swiss Alps. Hardened over the cobbles of Spring Classics. Perfected within the echelons of the Grand Tours. Developed in collaboration with Red Bull Advanced Technologies the BMC Teammachine R 01 Four Ultegra Di2 12 Speed Disc Road Bike isn’t just another race bike. The BMC Teammachine R 01 Four is equipped with Shimano Ultegra Di2 drivetrain including powermeter, CRD-501 Carbon Wheelset and BMC’s ICS2 Integrated Cockpit Design.

Technical Specifications

Frameset

• Frame - Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology, Stealth Cable Routing | Integrated Aerocore Bottle Cages | Stealth Dropout Design | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle

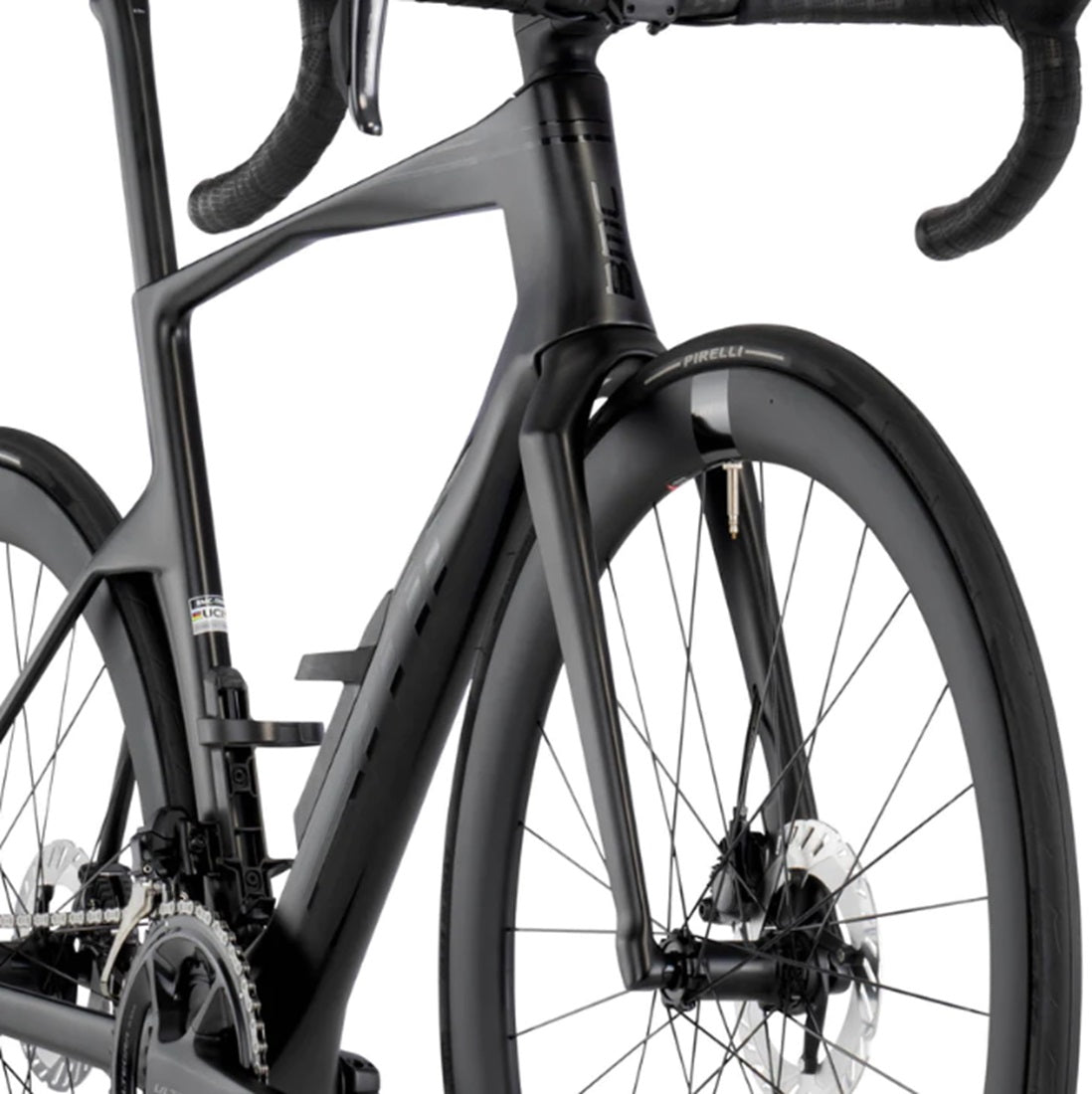

• Fork - Teammachine R 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle

Cockpit

• Handlebar - Easton EC70 SL Carbon or Easton EC90 SLX Carbon

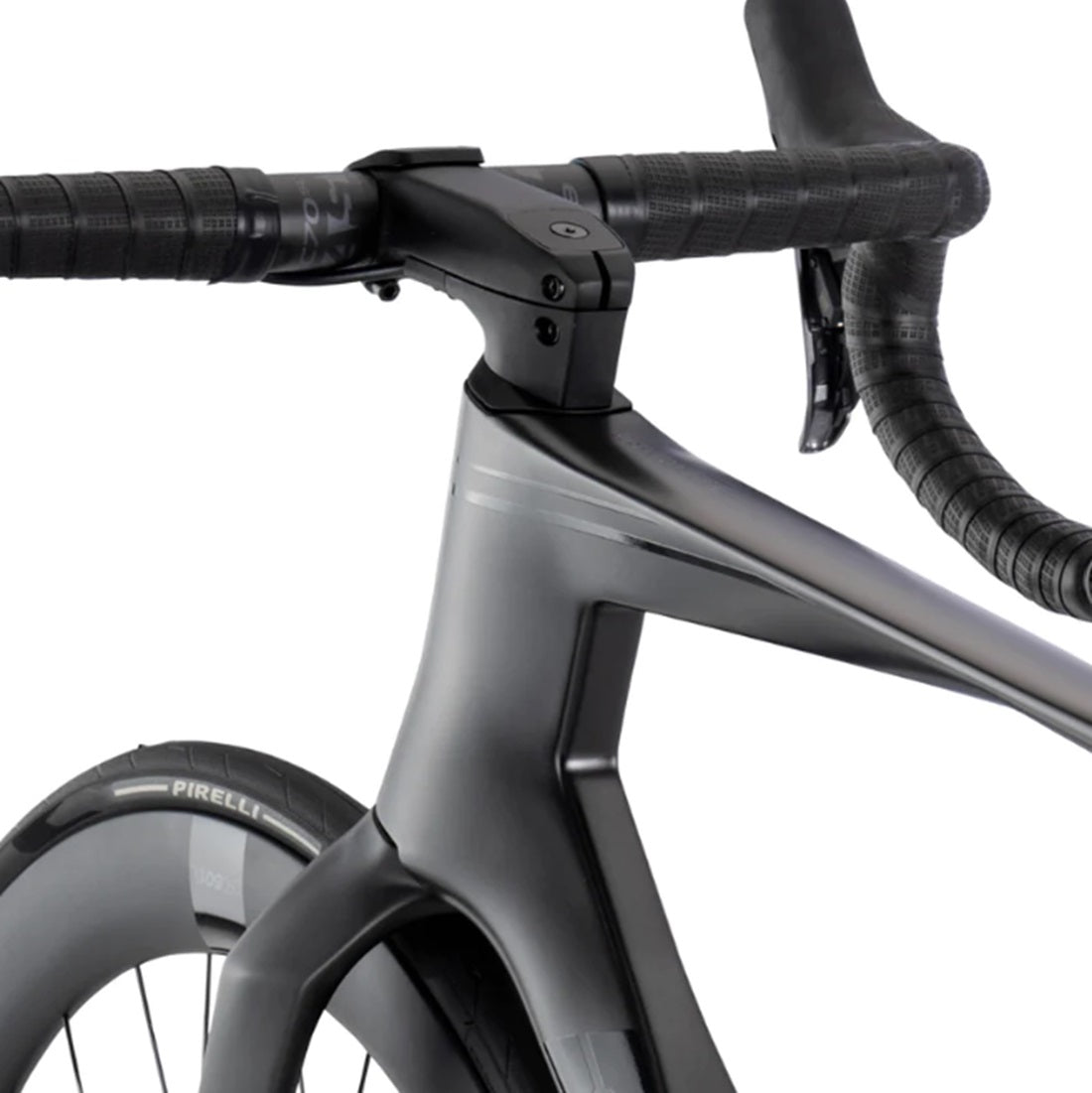

• Stem - BMC ICS2 - Integrated Cockpit System Technology

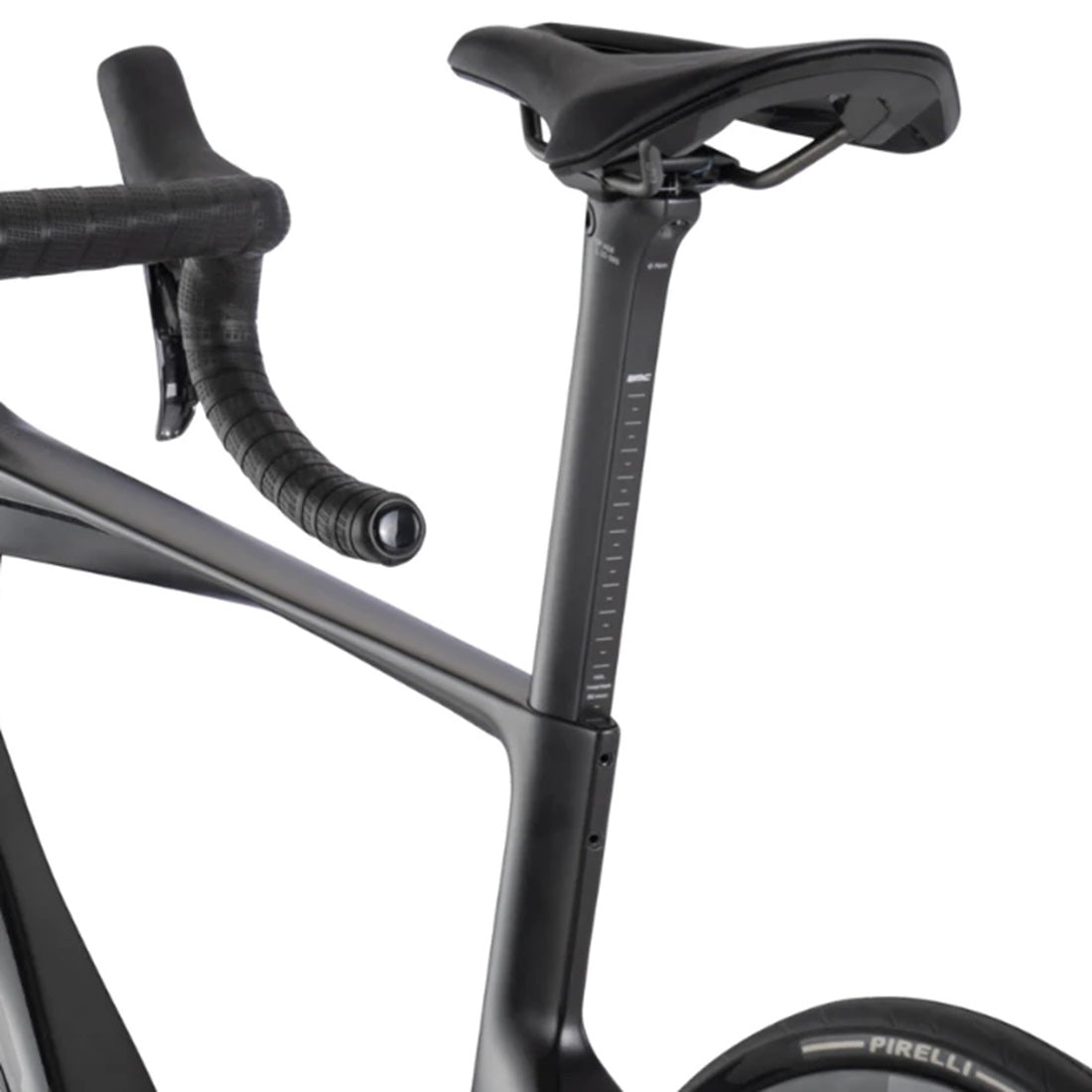

• Seatpost - Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
• Saddle - Fizik Argo Vento R3 (140mm)

Drivetrain

• Gears - 2x12

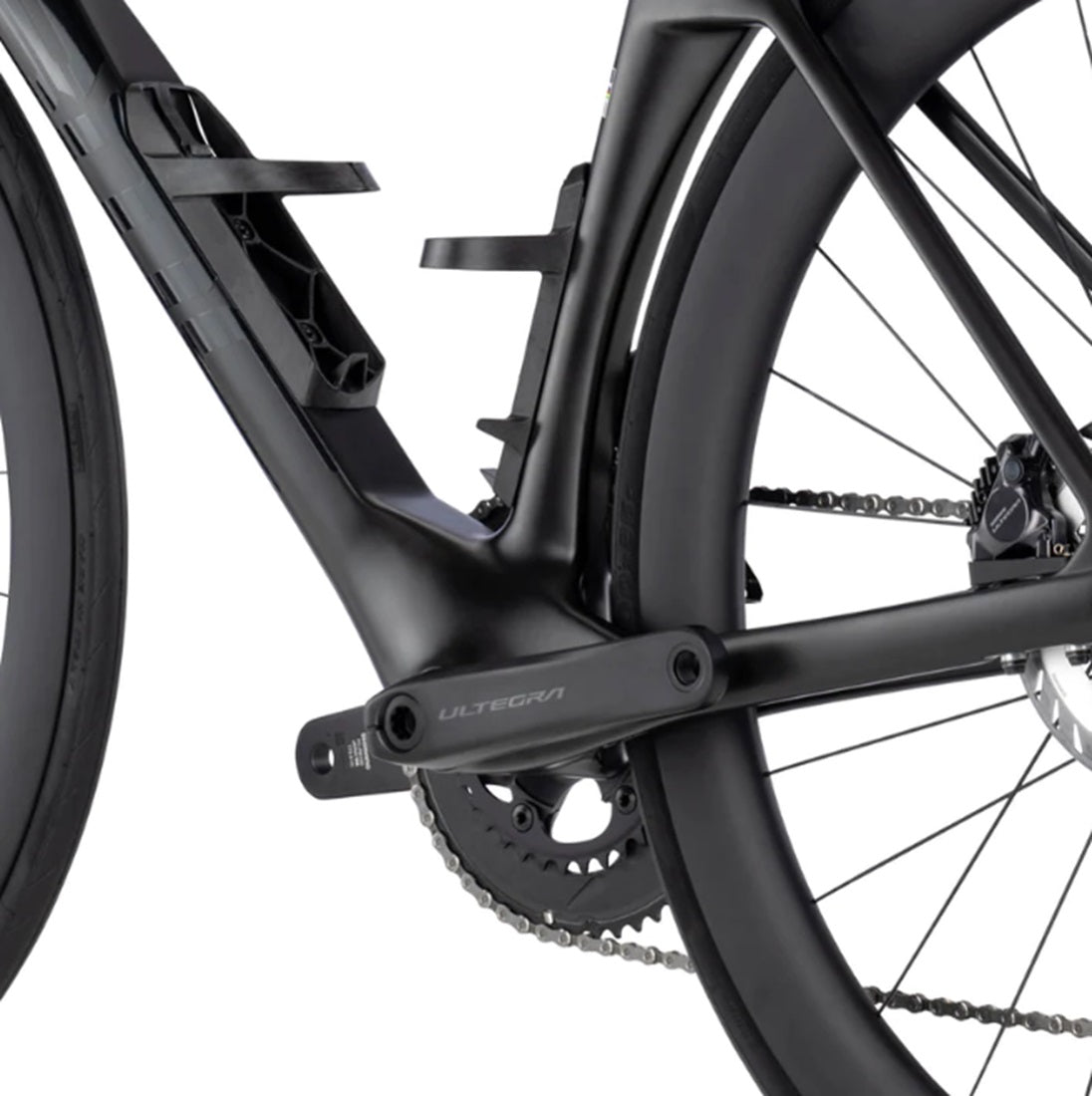

• Crankset - SHIMANO Ultegra FC-R8100 12spd 52-36T 4iii Precision 3+ Power Meter (Left Side)
• Cassette - SHIMANO Ultegra CS-R8100 12spd 11-30T
• Chain - SHIMANO Ultegra CN-M8100 12spd
• Front Derailleur - SHIMANO Ultegra Di2 FD-R8150 12spd
• Rear Derailleur - SHIMANO Ultegra Di2 RD-R8150 12spd
• Shifters - SHIMANO Ultegra Di2 ST-R8170 12spd

Brakes

• Brake Levers / Calipers - SHIMANO Ultegra BR-R8170
• Rotors - SHIMANO RT-CL800 160 / 160 mm

Wheels

• Rims - CRD-501 Carbon - Tubeless Ready - 50mm
• Hubs (Front/Rear) - CRD-501
• Tires - Pirelli P ZERO Race TLR 26mm
• Tubeless Information - Tubeless Ready Rims / Tubeless Tires

• Accessories - Aerocore Bottle Cages

Additional Information

• Tire Clearance - 30mm (Measured Width)
• ASTM Classification - Level 1
• Weight Limit - 110 Kg

*Specifications subject to change without notice

• Mack Cycle recommends any BMC bike that Mack Cycle ships to a customer be assembled by an authorized mechanic. Expect to pay an assembly fee.
