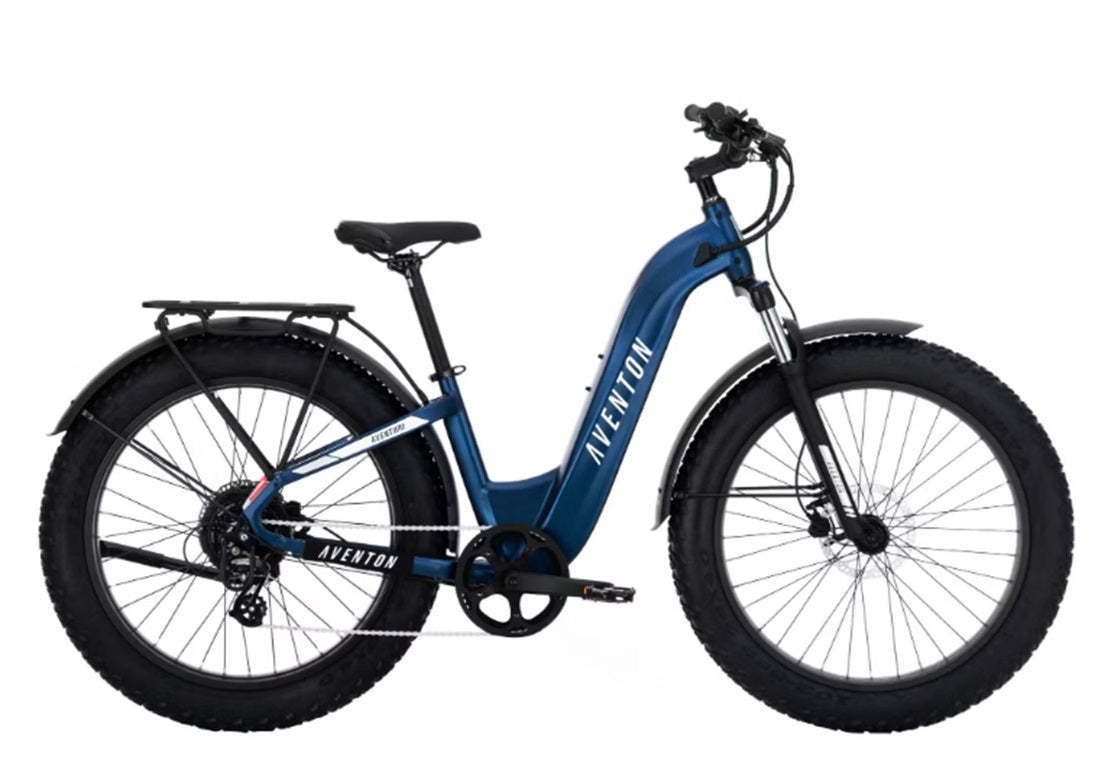

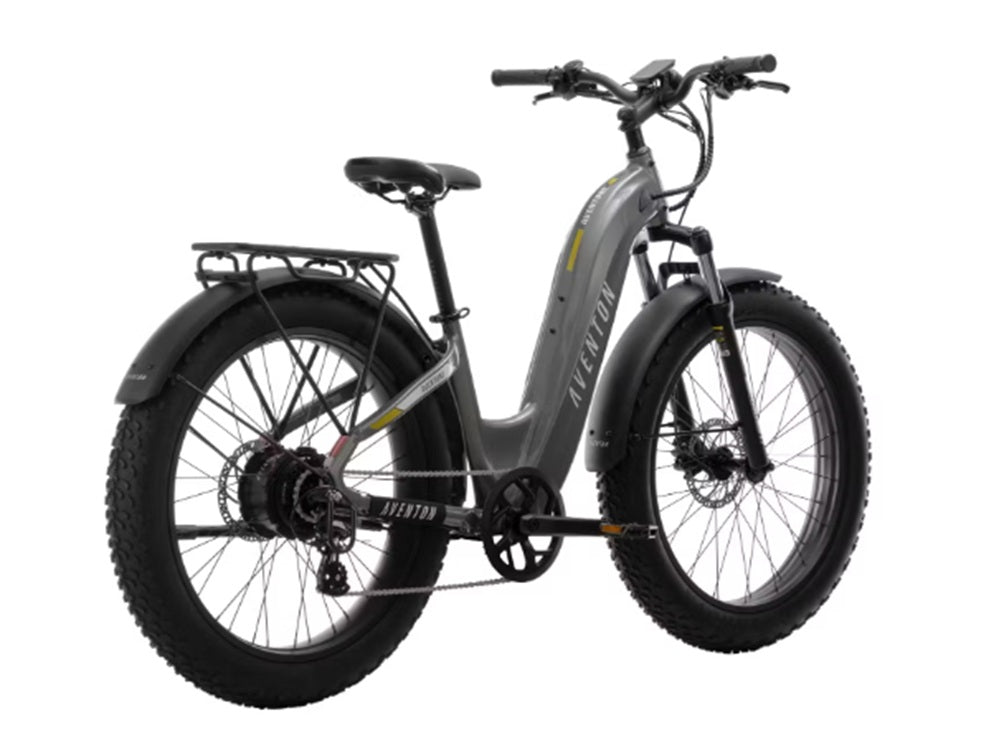

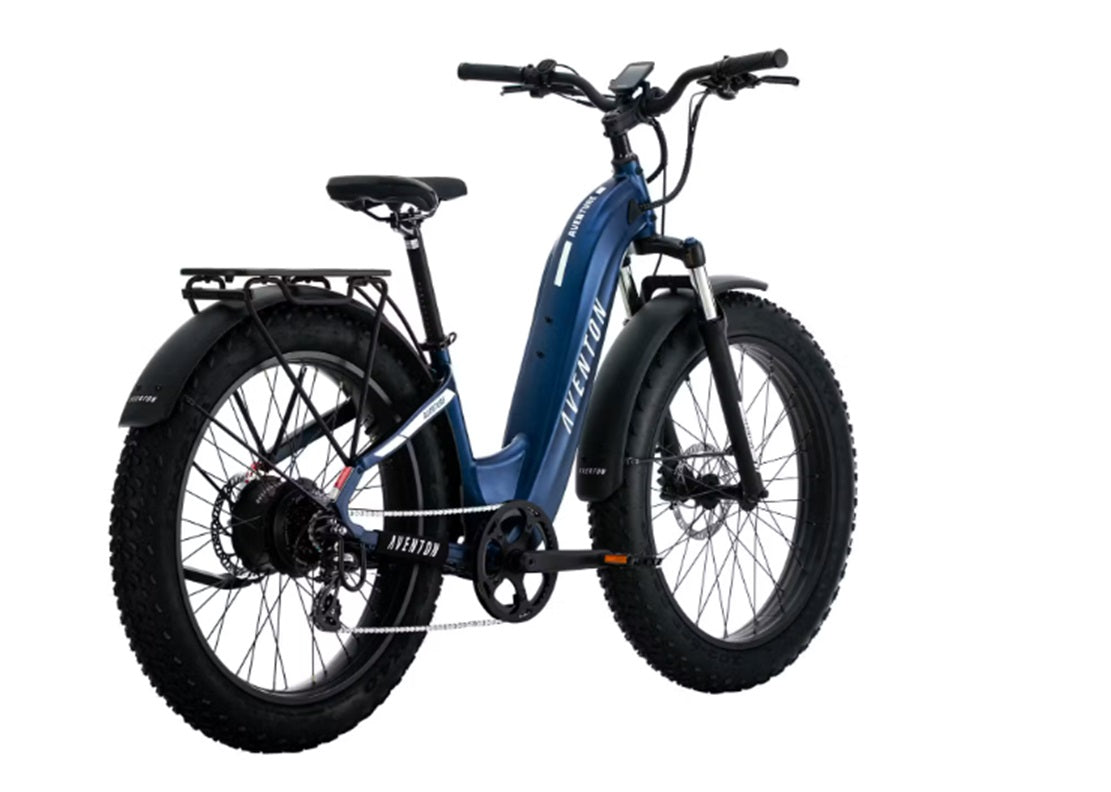

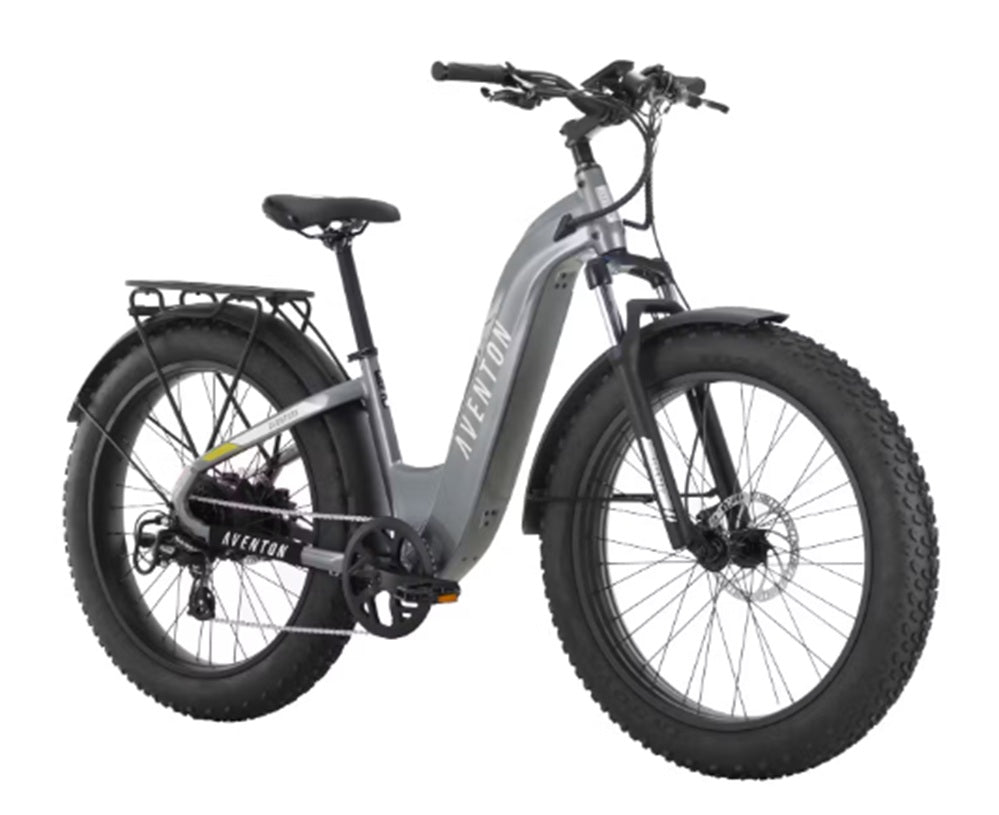

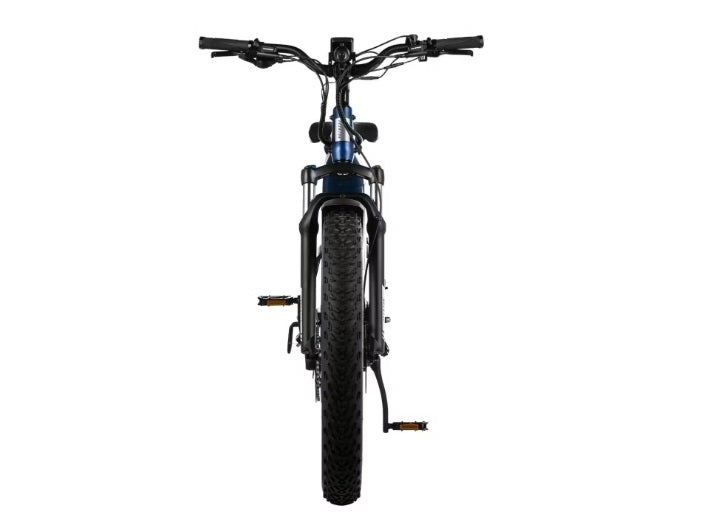

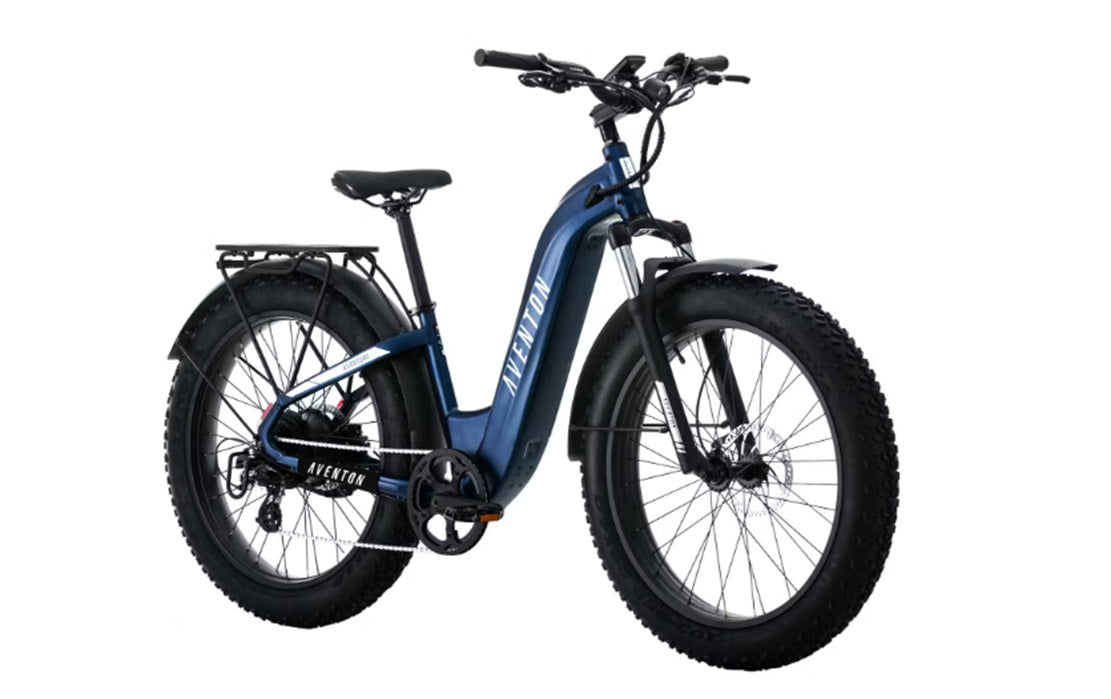

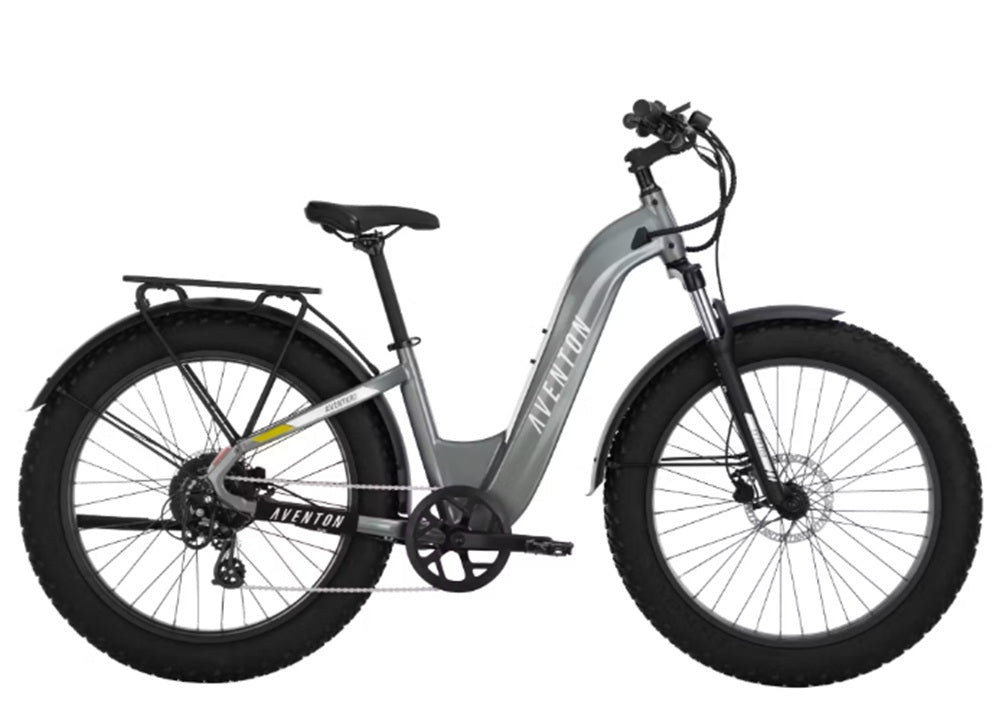

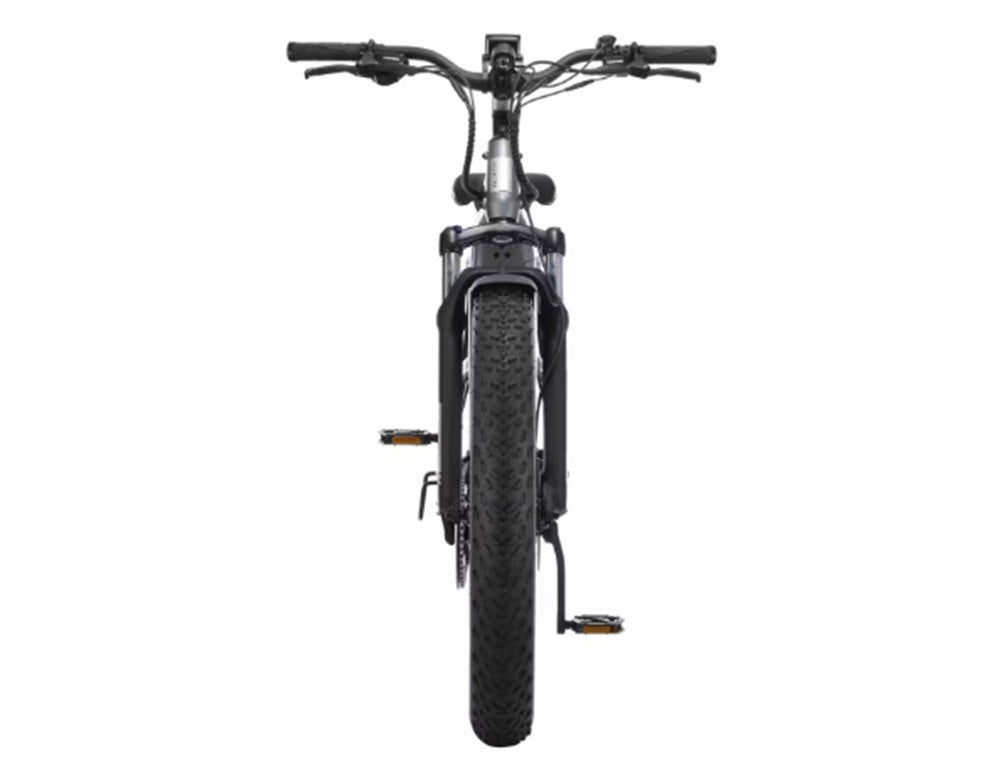

Aventon Aventure.2 All Terrain Step-Through E-Mountain Bike

The Aventon Aventure.2 All Terrain Step-Through E-Mountain Bike comes out of the box as a Class II ebike, with pedal assist and throttle. It can be unlocked to a Class III ebike. The Aventon Aventure.2 All Terrain Step-Through E-Mountain Bike will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160

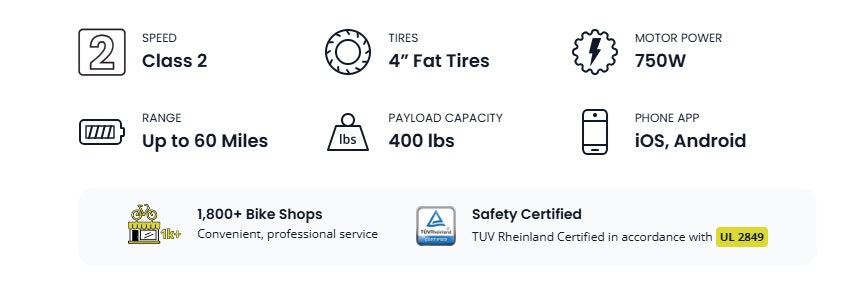

Specifications

• Model - Aventure.2 Step-Through Ebike
• Pedal Assist - 4 Levels
• Range - Up to 60 miles
• Weight - 77 lbs
• Total Weight Limit - 400 lbs
• Ideal Use - All-Terrain
• Folding - No

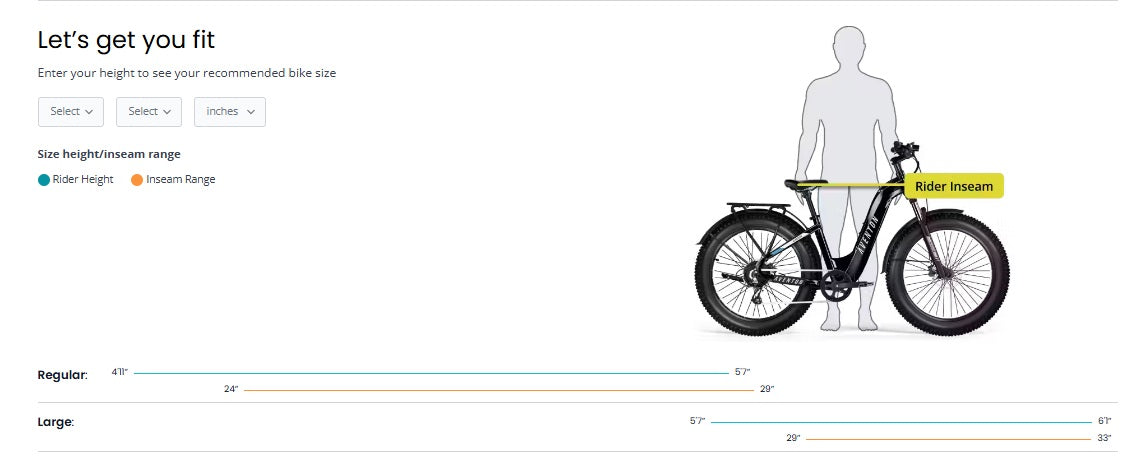

• Rider Height - 4'11" - 6'1"
• Safety Certified - TUV Rheinland Certified in accordance with UL 2849

Frameset

• Frame - Single-Butted Aluminum Alloy
• Fork - Suspension Fork with 80mm travel, with lockout
• Frame Style - Step-Through

Wheelset

• Rim - Double Wall Aluminum 36h Front & Rear
• Spokes - Black Stainless 13G Front / 12G Rear
• Tubes - Butyl Rubber, Schrader Valve
• Hubs - 36H Disc Nutted Front, Nutted Rear
• Tires - 26 x 4

Ebike System

• Motor - 750w (sustained), 48v Rear Hub

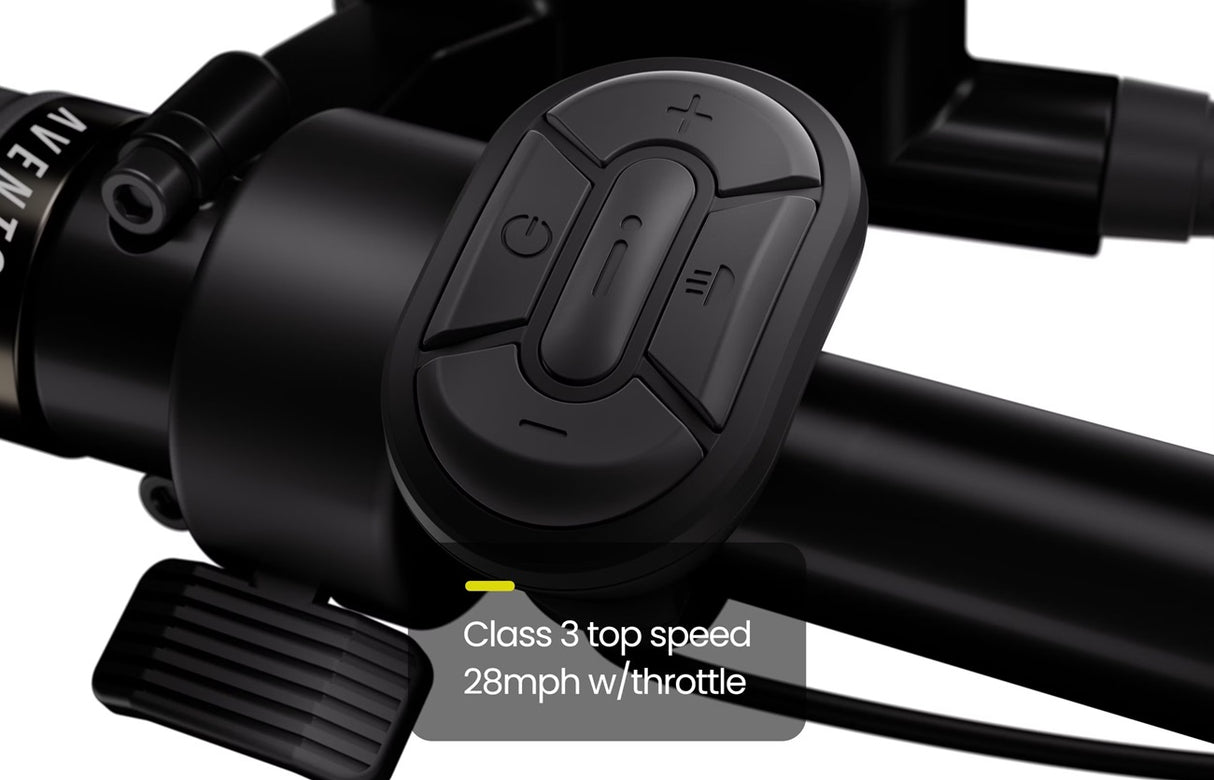

• Throttle - Aventon LH Handlebar Mounted
• Display - LCD Smart "Easy Read"
• Battery - 48V, 15Ah (720Wh), LG Cell, UL 2849 Compliant
• Sensors - Double Sided Bottom Bracket Torque Sensor
• Charger - 48V, 3 Amp Fast Charger
• Lights - Integrated
• Speed - Class 2

Brakes

• Brakes - Hydraulic

Drivetrain

• Bottom Bracket - Square Taper, Sealed, Torque Sensor
• Pedals - 9/16" Alloy Platform
• Crankset - 170mm w/ 48 T
• Rear Derailleur - Shimano 8 speed
• Shift Lever - 8 Speed Trigger
• Chain - 122 Link, 8 Speed
• Cassette - 12-32T, 8 Speed

Cockpit

• Saddle - Aventon by Velo
• Seatpost - Forged Alloy, 30.9mm 2-Bolt Clamp
• Stem - Threadless, 31.8mm, 8 Degree Rise]
• Seat Clamp - 34.9mm Quick Release
• Handlebars - Aluminum 31.8mm, 680mm
• Headset - Sealed Bearing Headset
• Grips - Ergonomic Comfort

Included Accessories

• Kickstand - Included, rear mount
• Rear Rack - Included
• Fenders - Included
• Miscellaneous - Suspension - Front

* Specifications are subject to change without notice

*Mack Cycle recommends that you have your new Aventon bike assembled at your local bike store.  Your store will charge an assembly fee.

FAQs

• What type of terrain can I ride on with fat tires?  Fat tire bikes are designed primarily for all-terrain use and can handle various terrains, including street, snow, sand, dirt trails, and rough roads.
• How much does the Aventure.2 weigh?  The Aventure.2 weighs 77 lbs with the battery installed. (Battery weight is 10.6lbs)
• Does Aventure.2 include a throttle, and how fast can I go using only throttle?  Aventon’s Aventure.2 fat tire ebike comes equipped with a throttle that has a maximum speed of 20 mph.
• Is the Aventon Aventure.2 ebike waterproof?  Aventon ebikes like the Aventure.2 are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.
• How do you maintain an ebike battery?  Taking care of your ebike battery is an integral part of getting the most out of your Aventon ebike. Here are a few things to remember:
  • Charge your battery regularly to avoid fully draining your battery’s stored energy or voltage.
  • Use the right charger. Only use an Aventon branded and proper model charger (Be sure to place the charger brick on a flat, non-flammable surface like metal or concrete. The charger brick will conduct heat while charging.)
  • Avoid overcharging your ebike.
  • Avoid extreme temperatures. Store and charge the battery in a climate-controlled area, keeping it away from both extreme heat and cold.
  • Maintain the right level of charge. The battery should be stored at 75% charge to its health.
  • Avoid heavy loads. Do not exceed the bike’s recommended maximum capacity.
  • Keep your battery, terminal, & ports clean.

• What Aventon accessories are included with my ebike?  Some Aventon models, such as the Level.2, Abound, Sinch.2, & Aventure.2, come with pre-installed fenders and a rear rack. Additional accessories are available for purchase. Explore a wide-range of Aventon accessories, including helmets, locks, bike pumps, and so much more to add to your next riding adventure.
• What kind of warranty is included with Aventon ebikes?  All Aventon-branded frames, framesets, components, and batteries come with a 2-year warranty. Learn more about the Aventon warranty.
• What maintenance does an electric bike need?  Electric bikes require regular maintenance tune-ups similar to traditional bikes and cars. To get the best performance out of your ebike, regularly check tires, tubes, chains, battery, and brakes, or visit a local bike shop for professional assistance. Performing a pre-ride safety check helps maintain your ebike, as well as staying up-to-date on non-electric component maintenance and repairs.
• Can I make an ebike a class 1 to ride on trails?  Yes. Class 1 ebikes are pedal-assist only, meaning they have no throttle and can only reach a maximum speed of 20 miles per hour. By removing the throttle on your Aventon ebike and ensuring the max speed limit is set to 20mph, you can configure a class 2 to a class 1 ebike for trail use.
• Do you sell an ebike conversion kit for this model?  Aventon does not sell conversion kits. All Aventon bikes are already designed with electrical components, such as integrated batteries, motors, and sensors for an optimal riding experience.
• Why do you no longer make cadence sensor ebikes?  The torque sensor design is more intuitive for the rider at high and low speeds, it’s more efficient, has smoother power delivery, and is less prone to damage as the sensor is internal opposed to the external cadence sensor.
